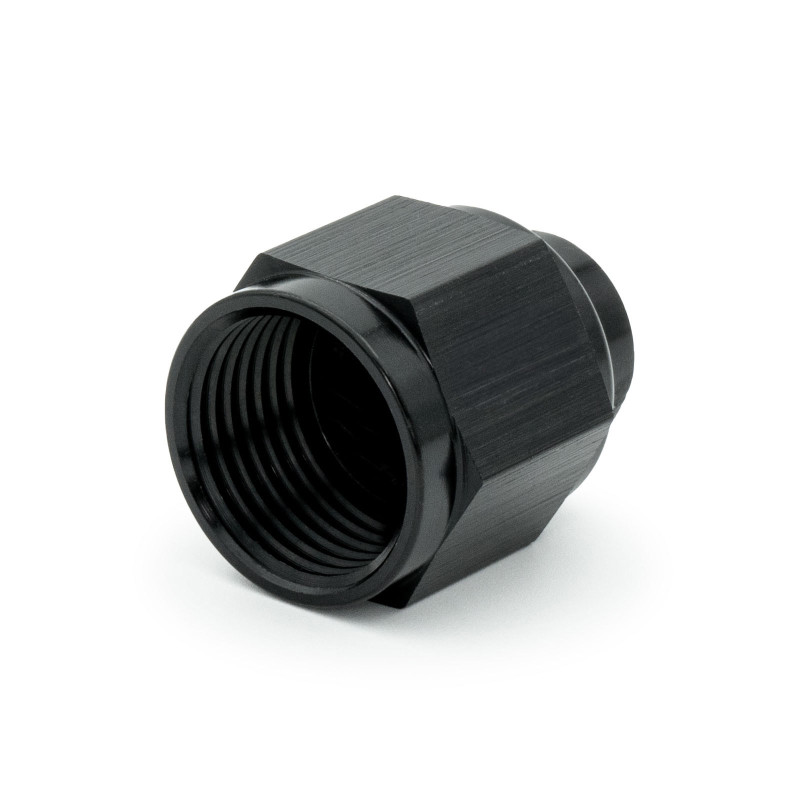

AN Hose Blanking Caps

Seal open male AN/JIC hose and fitting connections with our aluminium AN Hose Blanking Caps. Designed with a female AN/JIC 37° flare connection, each cap provides a secure, reusable closure for fuel, oil, coolant and other compatible fluid systems.

Why Choose Our AN Hose Blanking Caps?

AN/JIC 37° Flare Seal

The female connection seals directly against the 37° flare of a compatible male AN/JIC fitting, providing a secure fluid seal without an O-ring or thread sealant.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium for an excellent combination of strength and low weight.
Black Anodised Finish

Protects against wear and corrosion while providing a clean, professional appearance.
AN3 to AN16 Sizes

Available in seven AN sizes for closing a wide range of male hose ends, adapters and other AN/JIC connections.
Reusable Design

Ideal for temporary or permanent closure and can be removed and reused provided the threads and 37° sealing surfaces remain in good condition.

Designed for Male AN/JIC Connections

These female caps are designed specifically for male AN/JIC 37° flare connections. Always match the AN size of the cap to the connection being sealed and check that both flare sealing surfaces are clean and undamaged before installation.

Cap Type: AN Hose Blanking Cap For closing male AN/JIC hose and fitting connections
Material: 6061-T6 Aluminium Lightweight and durable
Finish: Black Anodised Protects against wear and corrosion

Connection: Female AN/JIC For a corresponding male AN/JIC connection
Flare: JIC 37° Provides the fluid sealing surface
Thread Type: Straight UNF Thread provides retention rather than the fluid seal
Sealing Method: 37° Flare No O-ring or thread sealant required
Reusable: Yes Provided the threads and flare sealing surfaces remain undamaged

Available aluminium AN hose blanking cap sizes
Product Code	Thread
CAP-BNK-AN-AL-AN3	3/8"-24 UNF Female AN3
CAP-BNK-AN-AL-AN4	7/16"-20 UNF Female AN4
CAP-BNK-AN-AL-AN6	9/16"-18 UNF Female AN6
CAP-BNK-AN-AL-AN8	3/4"-16 UNF Female AN8
CAP-BNK-AN-AL-AN10	7/8"-14 UNF Female AN10
CAP-BNK-AN-AL-AN12	1 1/16"-12 UNF Female AN12
CAP-BNK-AN-AL-AN16	1 5/16"-12 UNF Female AN16

Check the connection before ordering. These caps are designed for male AN/JIC 37° flare connections. Match the AN size of the cap to the connection being sealed.

Fuel Systems
Oil Systems
Coolant Systems
Braided Hoses
AN Adapters
Temporary Line Closure

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are AN hose blanking caps used for?
AN hose blanking caps are used to close open male AN/JIC connections on hoses, adapters and other fluid-system components. They can be used for temporary or permanent closure where a male connection is not required.
What sizes are available?
Our aluminium AN hose blanking caps are available in AN3, AN4, AN6, AN8, AN10, AN12 and AN16.
What type of connection do these caps fit?
They have a female AN/JIC connection and are designed to fit a corresponding male AN/JIC 37° flare connection.
How do AN hose blanking caps seal?
The fluid seal is created where the female 37° flare inside the cap seats against the 37° flare of the male AN/JIC connection. The UNF thread holds the two sealing surfaces together but does not itself provide the fluid seal.
Do AN hose blanking caps require an O-ring?
No. AN/JIC connections seal on their 37° flare surfaces and do not require an O-ring.
Should I use PTFE tape or thread sealant?
No. Thread sealant or PTFE tape should not be used on the AN/JIC thread. The connection seals on the 37° flare rather than on the thread.
Can these caps be fitted to our custom braided hoses?
Yes, where the hose assembly terminates in a compatible male AN/JIC connection. Simply select the cap that matches the AN size of the hose fitting.
What are the AN hose blanking caps made from?
They are precision-machined from 6061-T6 aluminium and finished with black anodising for protection against wear and corrosion.
Are AN hose blanking caps reusable?
Yes. They can be removed and reused provided the threads and 37° flare sealing surfaces remain clean and undamaged.
