We machine our fittings from premium stainless steel that will never rust.
Choose a fitting to reveal available thread size and angle options below.
We machine our fittings from premium stainless steel that will never rust.
Choose a fitting to reveal available thread size and angle options below.
Choose the protective wipe-clean PVC coating that will be bonded to the stainless steel braided hose. If you plan to run the hose near a direct heat source without using heatsleeve, we recommend opting for uncoated.
Detailed braided hose specifications can be found below.

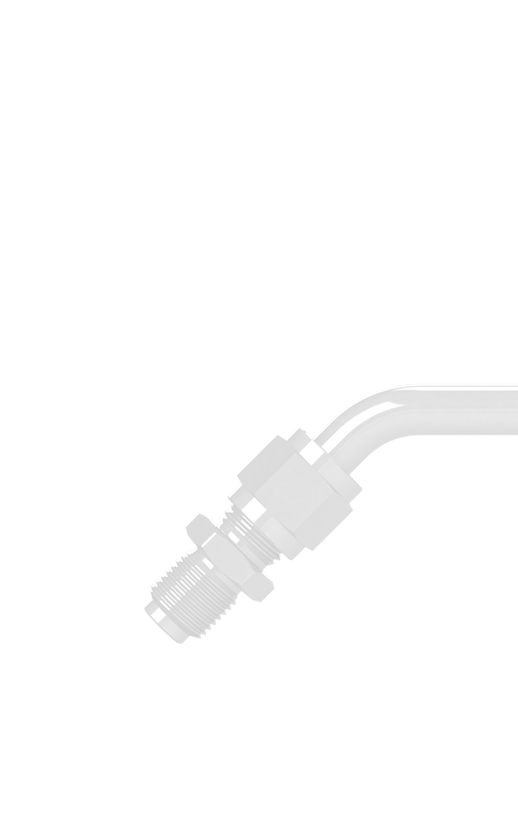

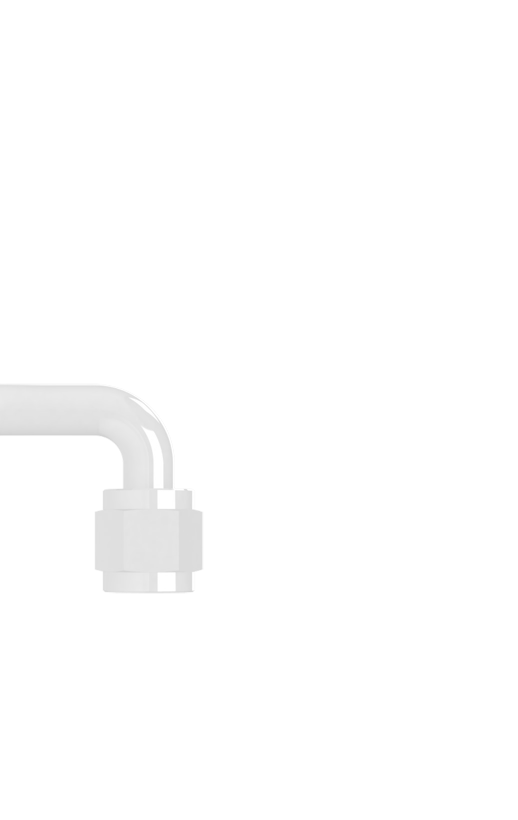

Use the vertical lines on the diagram to calculate the length. Measure from seat to seat, except for banjo fittings, which are measured from the center of the banjo eye.
The length tolerance is ±5mm.
If you have any additional instructions or vehicle information to share, let us know here.
Enter a label if you would like this line labelled in its own bag.
- £31.49
- FREE UK DeliveryNext working day and worldwide delivery options also available.
- FREE 100-Day Hassle-Free ReturnsLearn more about our returns policy.

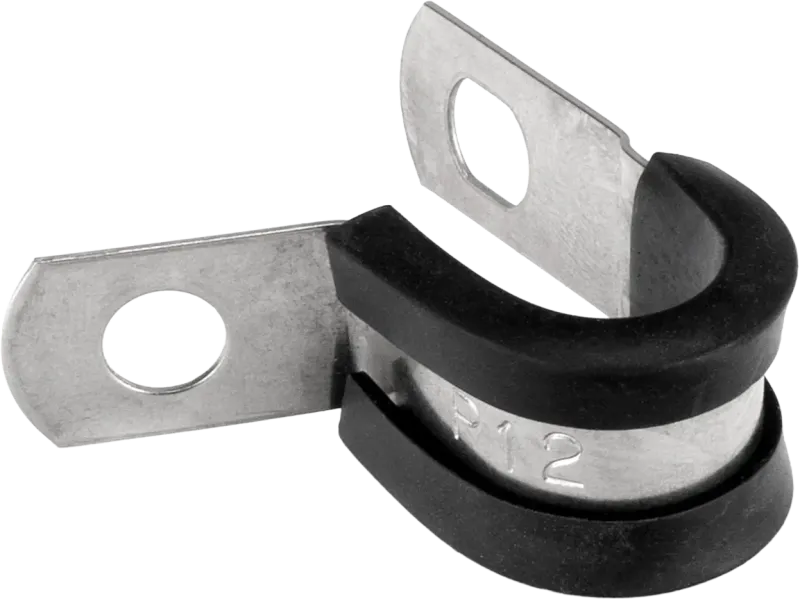

Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.

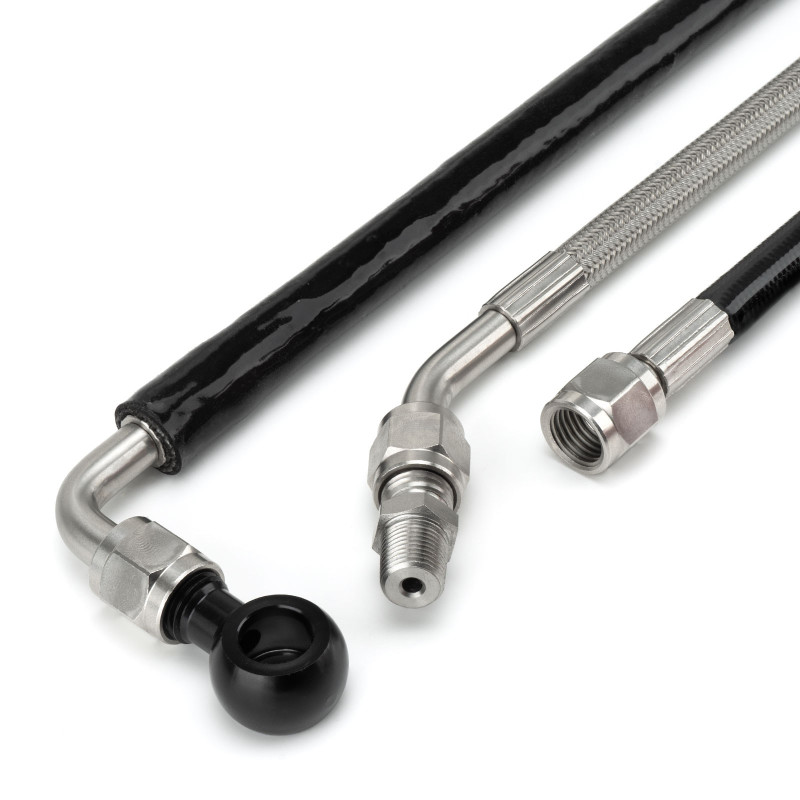

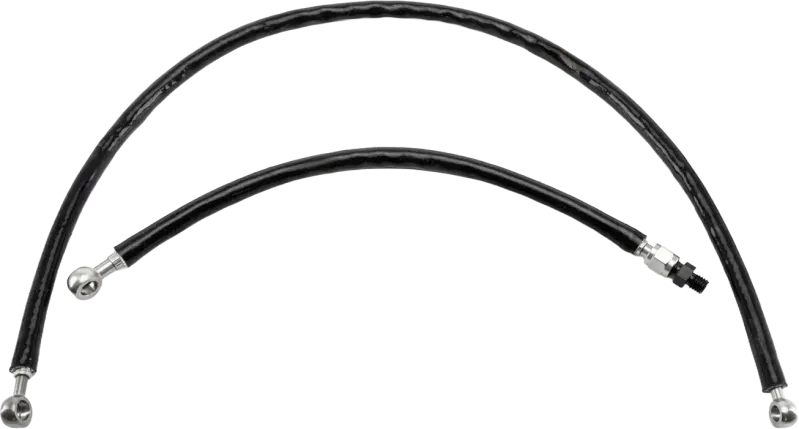

Made To Measure Custom Stainless Steel Braided Turbo Feeds and Returns
Upgrade your turbo system with our custom stainless steel braided turbo lines, engineered for precision, durability, and unrivalled performance.
Our custom turbo lines feature a high-performance PTFE core, which is wrapped in multiple layers of stainless steel braiding. Whether you're on the road or heading to the track, our custom turbo feeds and retturns are a reliable turbo upgrade.
Custom Turbo Line Benefits and Features
-
Stainless Steel Fittings
Designed for a lifetime of use, all fittings attached to the hose are machined in the UK from rust-resistant stainless steel. We will never use mild or zinc plated steel fittings. Some adapters are only available in anodised aluminium and this will be mentioned when selecting the option.
-
Strong PTFE Core
The high-performance PTFE core ensures long-lasting and reliable performance, even under extreme conditions. The core will not weaken or deteriorate with age. PTFE is one of the most chemically resistant materials known to man, providing much higher resistance to aggressive fluids than traditional rubber hoses.
-
Stainless Steel Braiding
The durable PTFE core is reinforced with stainless steel braiding, which helps deliver consistent pressure. Our stainless steel braiding has closely woven stainless steel strands, unlike many other brands that have a looser weave, which reduces the strength of the hose.
-

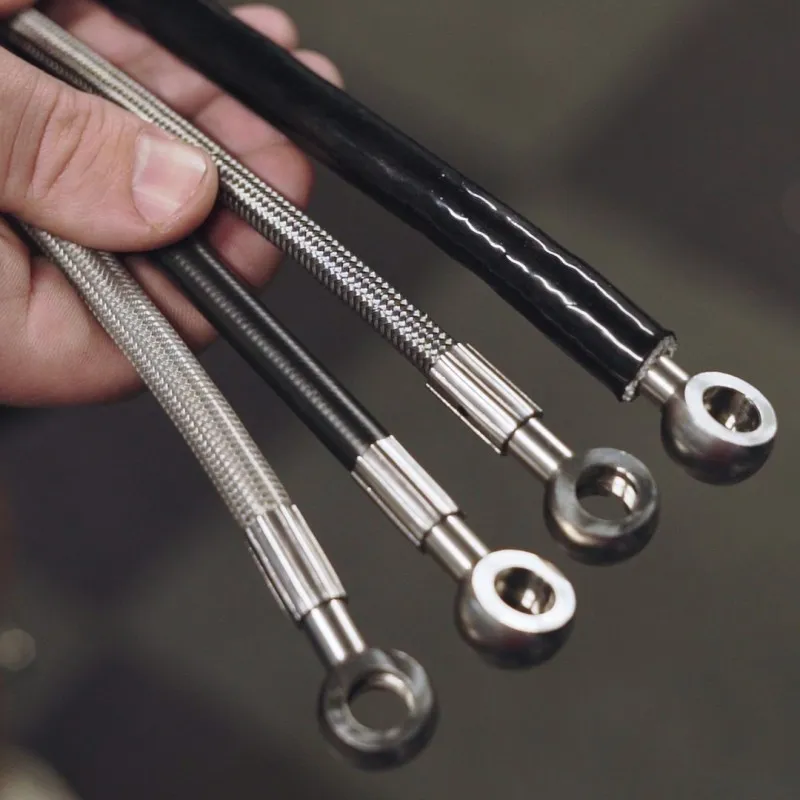

Optional Wipe-clean PVC Coating

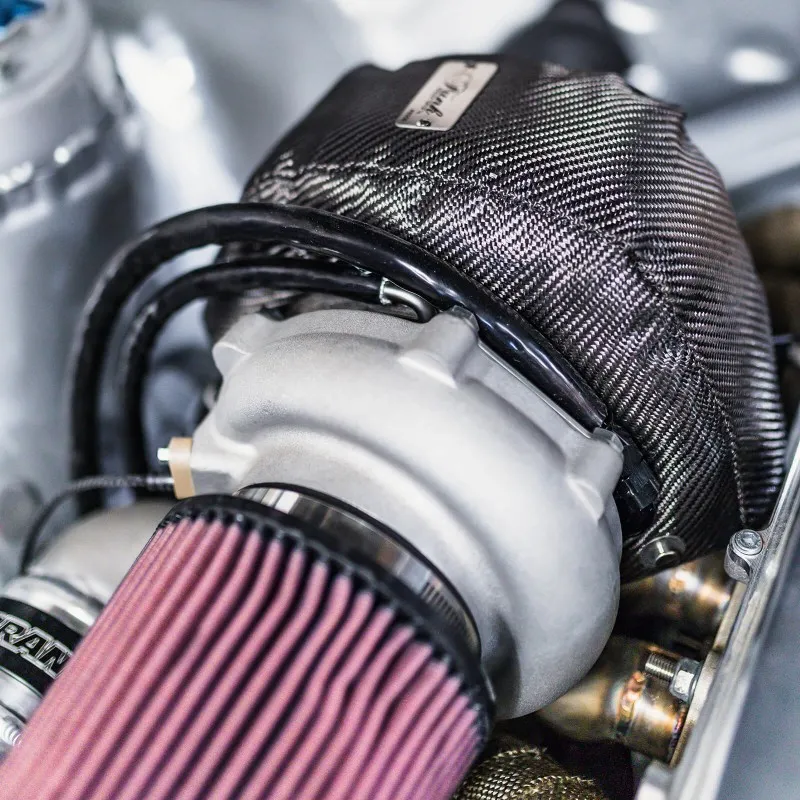

If you want one, the final layer of the hose features a wipe-clean PVC coating available in transparent or black, designed to protect the hose from road debris and water that could become trapped between the stainless steel braiding. Due to the risk of melting, if you choose a PVC coating, we seriously recommend adding the optional heatsleeve for extra protection if there's a chance the hose will come in contact with turbo or other direct heat sources.
Custom Turbo Hoses
-
100% Made to Measure
Choose every part of your turbo feed or return: length, fitting types, fitting sizes, fitting angles and optional heatsleeve.
-
Convex or Concave Seats
On most swivel male and swivel female fittings you can choose from a convex or concave seat to suit most applications.
-
Easy Installation
Being pre-made to your exact specifications, fitting the hose is a breeze. No more rusty and corroded fittings, our precision-made stainless steel fittings are as smooth as silk.
Upgrade your turbo system with our reliable custom turbo hoses today. Start building your custom turbo feeds and returns now!
-
Are your custom turbo lines covered by a warranty?
Yes, our custom turbo lines include a 2-year warranty as standard. This warranty covers any defects in materials or workmanship.
-
Can I return or exchange my custom turbo lines?
Yes, we offer a 100-day hassle-free returns policy for all our custom turbo feeds and returns. We know mistakes can happen and we want to make sure you are completely satisfied. However, please double-check your choices before ordering to avoid any silly mistakes, as it does cost us to replace them!
-
How do I measure the hose?
The easiest way to measure your custom hose is with a piece of flexible wire or sturdy string. Make sure you go around all objects and follow all curves to make sure you don't measure the hose too tight, or the hose will be stretched when you fit it. You need to measure from the seats of male and female fittings and from the centre of the hole on banjo fittings. Refer to the two vertical lines on the hose builder diagram when building your hoses, as the length measurement will change depending on the chosen fitting.
-
Will these custom turbo lines work with my turbo?

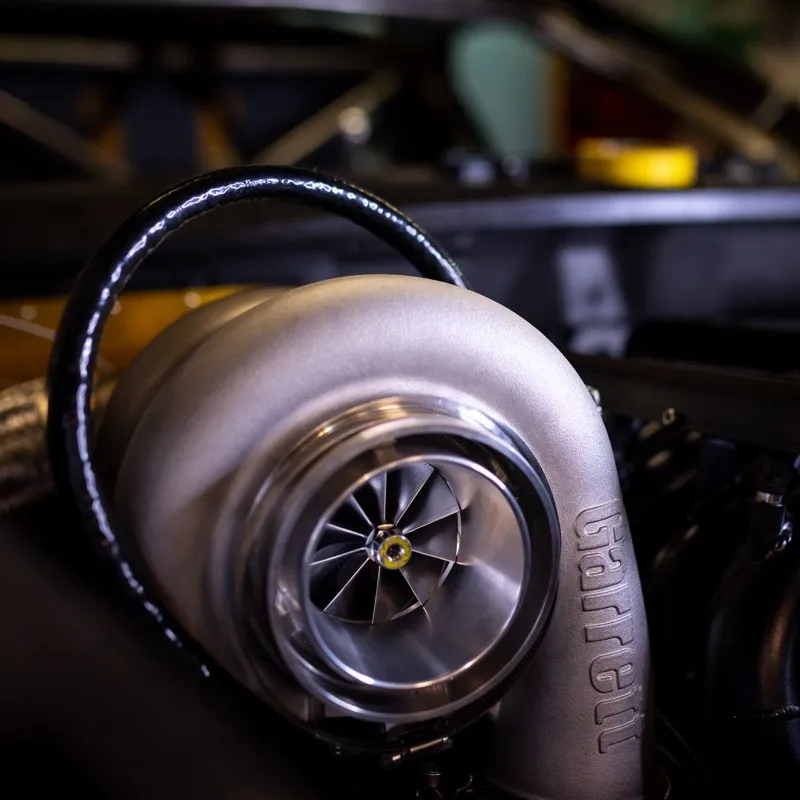

Yes, our custom turbo lines are designed to be compatible with all types of turbochargers, provided the fitting threads match your turbo's specifications. Some of the popular turbo brands we regularly supply lines for include: Garrett, BorgWarner, Precision, Owen Developments and many others. If you're unsure about compatibility, we recommend checking the thread sizes and specifications of your turbo or contacting our team for assistance.
-
Do you offer restricted turbo lines to combat turbo smoke issues?
Yes, we can provide restricted turbo lines to help combat turbo smoke issues caused by excessive oil pressure. High oil pressure can sometimes lead to oil leakage through the turbo seals and into the exhaust, resulting in smoke. If you need to manage oil flow to reduce the risk of leaks, we recommend using a restricted banjo bolt or a restricted male to male adapter.
It's worth noting that some turbochargers come with a built-in oil restrictor, so additional restriction may not always be necessary. If you're switching from a journal-bearing turbo to a ball-bearing turbo, keep in mind that ball-bearing turbos generally require less oil and a restriction may be required.
| Stainless Steel Braided | ||
| Maximum Operating Pressure | 3000 PSI (206.8 BAR) | |
| Burst Pressure | 10000 PSI (689.5 BAR) | |
| Minimum Bend Radius | 32mm (1.3") | |
| Outer Hose Material | Stainless Steel Braided (coated in wipe-clean PVC, optional) | |
| Inner Hose Material | PTFE | |
| Hose Bore Type | Smooth Bore | |
| Inner Diameter (ID) | 6mm (1/4") | |
| Outer Diameter (OD) | 13mm (1/2") | |
| Hose Size | AN4 (-4 AN, Dash 4) | |
| Fittings Material | Stainless Steel (303/304) | |
| Operating Temperature Range | -70°C to 250°C (-94°F to 482°F) | |
| Fluid Compatibility |
|
|
| Common Applications | Turbo Oil Feeds, Turbo Oil Returns, Turbo Water Feeds, Turbo Water Returns, Pedal Box Hoses | |
| Hose Weight (Per Metre) | 86g (0.19lbs) | |
The minimum bend radius R is used to determine the tightest curve the hose can make without getting damaged or blocking the flow inside.
