All our aluminium hose end fittings are reusable and also swivel, allowing you to orientate them yourself to the angle you need. If needed, you can add an adapter below once you've chosen your fitting.
All our aluminium hose end fittings are reusable and also swivel, allowing you to orientate them yourself to the angle you need. If needed, you can add an adapter below once you've chosen your fitting.
You have a choice of high performance braided hose. Detailed braided hose specifications can be found below.
Use the vertical lines on the diagram to calculate the length. Measure from seat to seat, except for banjo fittings, which are measured from the center of the banjo eye.
The length tolerance is ±5mm.
If you have any additional instructions or vehicle information to share, let us know here.
Enter a label if you would like this line labelled in its own bag.
- £8.46
- FREE UK DeliveryNext working day and worldwide delivery options also available.
- FREE 100-Day Hassle-Free ReturnsLearn more about our returns policy.
Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.

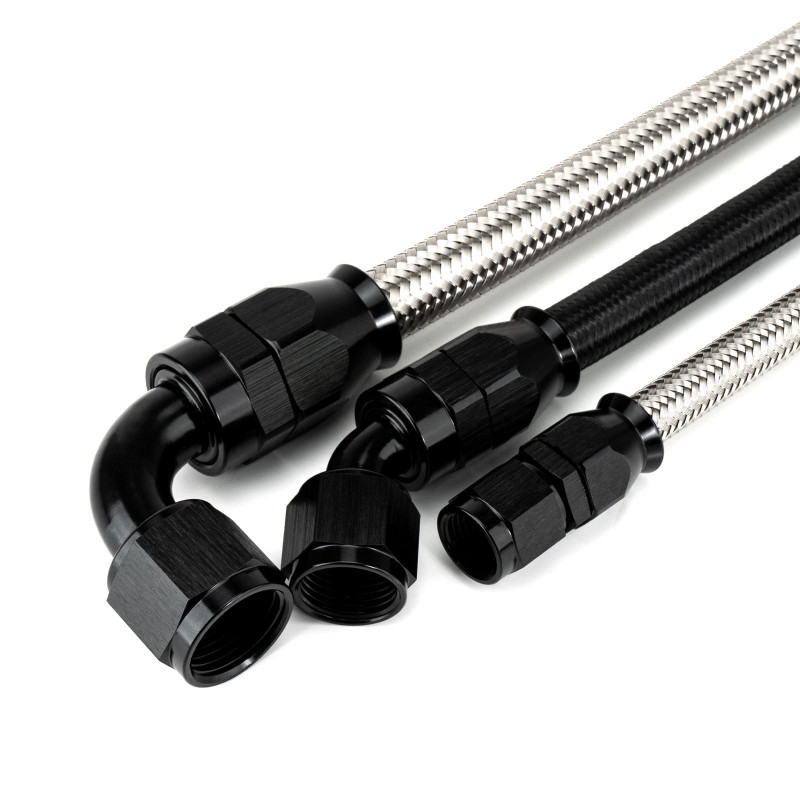

Custom AN10 PTFE Braided Hoses – Built for Motorsport
In a high-performance fluid system, reliability is what matters most. Whether you're on track or driving a big-powered road car, our custom AN10 PTFE hoses deliver superior coolant flow and exceptional reliability for oil, fuel and coolant systems.
Featuring a non-corrosive AN10 PTFE inner hose core and your choice of high-quality braided outer layer, our AN10 PTFE hose is designed to handle the most extreme conditions. Paired with our full-flow AN10 PTFE fittings, you can be confident of a secure, leak-free solution for even the most demanding fluid systems.
Custom AN10 Hose Features
-
AN10 PTFE Hose
Our braided PTFE hoses feature a robust PTFE inner core paired with your choice of a premium braided outer layer. Choose from:
-

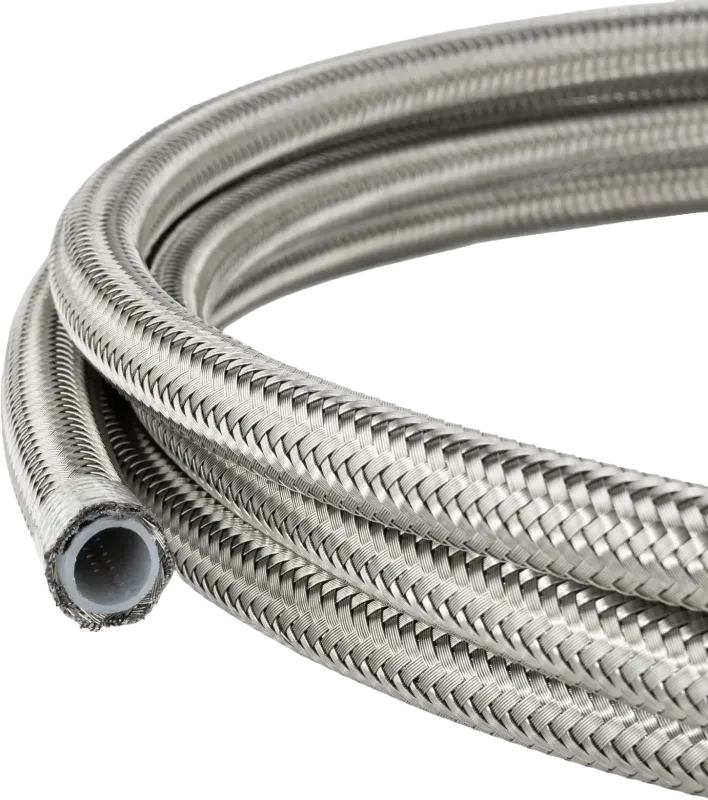

Stainless Steel Braiding
Offers maximum abrasion resistance.
-

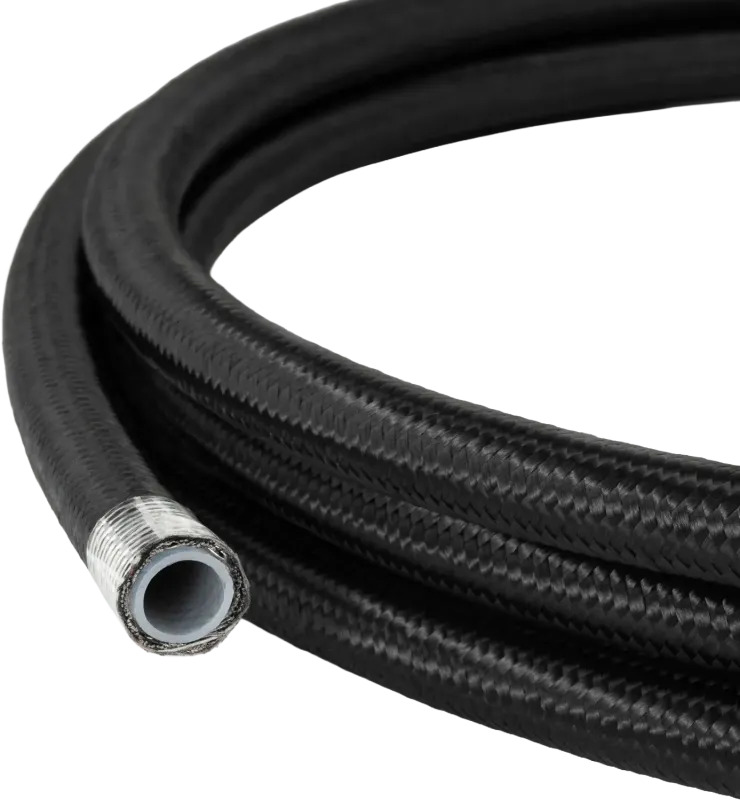

Black Nylon Cotton Braiding
Slightly increased flexibility.
Both outer braiding options have the same reliable PTFE inner core and are designed to ensure consistent oil, fuel and coolant transfer, even under the most demanding conditions.
-
-
AN10 PTFE Fittings
Choose from a wide range of AN10 PTFE fittings available in multiple angles. You can also add optional adapters (male, female, banjo, barb) to the hose fittings for a seamless integration into most AN10 hose systems.
-
360 Degree Swivel Fittings
All our AN10 PTFE fittings feature a 360-degree swivel design, allowing you to easily rotate and align the fittings to any orientation you need.
-
Leak-Free Performance
Our AN10 PTFE fittings use an olive compression system combined with a modern tapered screw design, ensuring a secure, leak-proof seal.
Why PTFE instead of Rubber?
AN10 PTFE hoses are ideal for AN10 PTFE fuel lines, especially when installed within the cabin of a vehicle. The PTFE hose core significantly reduces fuel vapour loss and is fully compatible with ethanol-based fuels such as E85, as well as other high-performance racing fuels. This means you can safely run aggressive fuels like E85 without the need for frequent draining.
AN10 PTFE hoses can withstand higher temperatures compared to rubber. PTFE hose is capable of handling heat levels reaching up to an impressive 250°C.
Why AN10 PTFE Braided Hoses from Custom Hoses?
-
Proven Under Pressure
Our custom AN10 PTFE braided hoses are designed to perform in high-pressure and high-temperature motorsport environments. Our pre-made braided hoses deliver consistent performance, even under the most demanding conditions.
-
Expertly Assembled
We have over 15 years' experience and each hose is professionally assembled and quality checked to ensure reliable fluid transfer. If you're not 100% confident assembling your own braided hoses from individual hose and fittings, let us take the worry away from you with our ready-to-install braided hoses. We also use custom aluminium tools to make sure the AN10 PTFE fittings stay unmarked and scratch-free during assembly.
-
Strength Meets Style
Our AN10 PTFE braided hoses not only look great, but they provide a durability that ordinary rubber hoses simply can't match. The hard-wearing anodised black AN10 PTFE fittings also look the part in any fluid system.
When measuring custom AN10 PTFE hoses, it's important to avoid sharp bends to avoid kinking, so use gentle curves or long straights for the best flow.
Upgrade your fluid transfer system with our high-performance AN10 PTFE braided hoses – the perfect choice for oil, fuel, and coolant applications.
Begin customising your AN10 PTFE braided hoses today!
-
Are your custom AN10 PTFE lines covered by a warranty?
Yes, our custom AN10 lines include a 2-year warranty as standard. This warranty covers any defects in materials or workmanship.
-
Can I return or exchange my custom AN10 lines?
Yes, we offer a 100-day hassle-free returns policy for these AN10 lines. We know mistakes can happen and we want to make sure you are completely satisfied. However, please double-check your choices before ordering to avoid any silly mistakes, it does cost us to replace them!
-
Can I use AN10 PTFE hoses for oil, fuel, and coolant?
Yes, AN10 braided PTFE hoses are designed to handle a variety of fluids, including oil, fuel, and coolant. They are commonly used in automotive and motorsport applications for these purposes due to their durability and reliability. Braided PTFE hose is a very popular choice for custom fuel hoses.
-
Do AN10 hoses require special tools for installation?
Our custom AN lines don't need any special tools for installation. All PTFE braided hoses arrive ready to fit and can be installed using basic tools.
-
Do the hoses require regular maintenance?
AN10 hoses are generally low maintenance, but it's a good idea to inspect them regularly for wear and tear, especially if they're exposed to high temperatures or pressures.
-
How long will my custom AN10 hoses last?
The lifespan of your custom braided hoses depends on how they're used. With correct installation and regular checks they can last for years, even in harsh conditions. For your peace of mind, our 2-year warranty also protects against material or workmanship defects.
-
How to make custom AN10 lines?
Our custom braided hose builder makes designing your custom hoses a breeze. Simply choose your hose fittings, add adapters and banjo bolts if needed and finally, choose your hose length and heatsleeve if you need it. We'll start assembling your hoses as soon as we receive your order.
-
How do I measure the hose?
The easiest way to measure your custom hose is with a piece of flexible wire or sturdy string. Make sure you go around all objects and follow all curves to make sure you don't measure the hose too tight, or the hose will be stretched when you fit it. You need to measure from the seats of male and female fittings and from the center of the hole on banjo fittings. Refer to the two vertical lines on the hose builder diagram when building your hoses as the length measurement will change depending on the chosen fitting.
-
How are your AN10 PTFE hose fittings attached to the hose?
Our braided PTFE hose fittings feature a modern, tapered screw design for a tight, leak-free connection. First, we slide the fitting collar onto the cleanly cut hose, then with the hose secured in an aluminium vice, we use an aluminium spanner to screw the nut end of the fitting into its collar. We're very careful not to over tighten as this can crack and damage the fitting.
-
Are your custom braided hoses suitable for track use?
Our custom AN hoses have been tested and trusted at the highest levels of motorsport, including British Touring Cars and Drift Masters
-
What is AN10?
AN10 is a hose fitting size, which is commonly used for automotive fluid connections. You can find detailed AN10 hose specifications on our AN hose specifications page or take a look at the specifications section below.
-
Why can't one end be open-ended like your rubber hoses?
PTFE hoses aren't compatible with hose finishers or jubilee clips, as PTFE doesn't mould or flex like rubber does. To ensure safety and reliability, we only supply our custom PTFE hoses with both PTFE hose fittings securely attached.
| Stainless Steel Braided | Black Nylon Cotton Braided | |
| Maximum Operating Pressure | 2000 PSI (137.9 BAR) | |
| Burst Pressure | 6000 PSI (413.7 BAR) | |
| Minimum Bend Radius | 65mm (2.6") | 60mm (2.4") |
| Outer Hose Material | Stainless Steel Braiding (303/304) | Black Nylon Cotton Braiding |
| Inner Hose Material | PTFE | |
| Hose Bore Type | Smooth Bore | |
| Inner Diameter (ID) | 13mm (1/2") | |
| Outer Diameter (OD) | 16mm (5/8") | |
| Hose and Fittings Size | AN10 (-10 AN, Dash 10) | |
| Female Thread Size | 7/8"-14 UNF (approx. 20mm diameter) | |
| Flare Type | JIC (37° Flare) | |
| Fittings Type | Double Swivel (Full Flow) | |
| Fittings Material | Aluminium Alloy (6061-T6) | |
| Operating Temperature Range | -70°C to 250°C (-94°F to 482°F) | |
| Fluid Compatibility |
|
|
| Common Applications | Coolant Systems, Radiators, Oil Lines, Fuel Lines, Hydraulic Systems | |
The minimum bend radius R is used to determine the tightest curve the hose can make without getting damaged or blocking the flow inside.
