Race Spec Banjo Bolts
Shop premium race-spec lockwire banjo bolts — designed for racing, motorsport, and other high-performance applications. Select a race spec banjo bolt to configure size and other options.
Race Spec Stainless Steel Banjo Bolts – Lockwire Ready for Motorsport
When only race-proven hardware will do, our lockwire-ready single banjo bolts for motorsport and race spec double banjo bolts with lockwire holes deliver maximum reliability under pressure. CNC-machined from high-grade stainless steel and pre-drilled for 0.8mm lockwire, these bolts are built to handle the extreme demands of motorsport brake and clutch systems.
Whether you're plumbing a dual-line racing brake setup or fine-tuning your clutch hydraulics, our race spec stainless steel banjo bolts offer the strength, safety, and precision needed to compete with confidence.
-
What are race spec banjo bolts?
Race spec banjo bolts are high-performance hydraulic fasteners designed specifically for motorsport. Made from stainless steel and pre-drilled for lockwire, they provide secure, high-pressure connections in brake and clutch systems where vibration resistance is critical.
-
What’s the difference between single and double race spec banjo bolts?

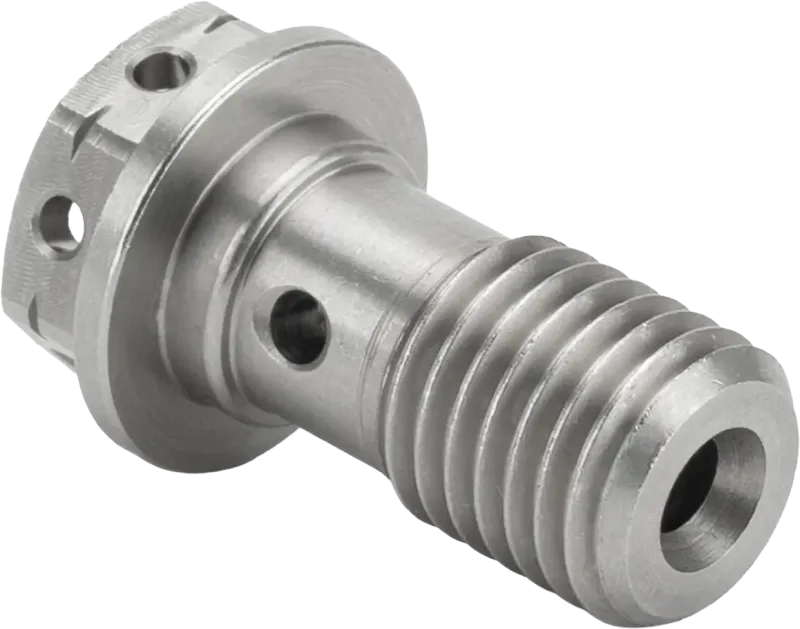

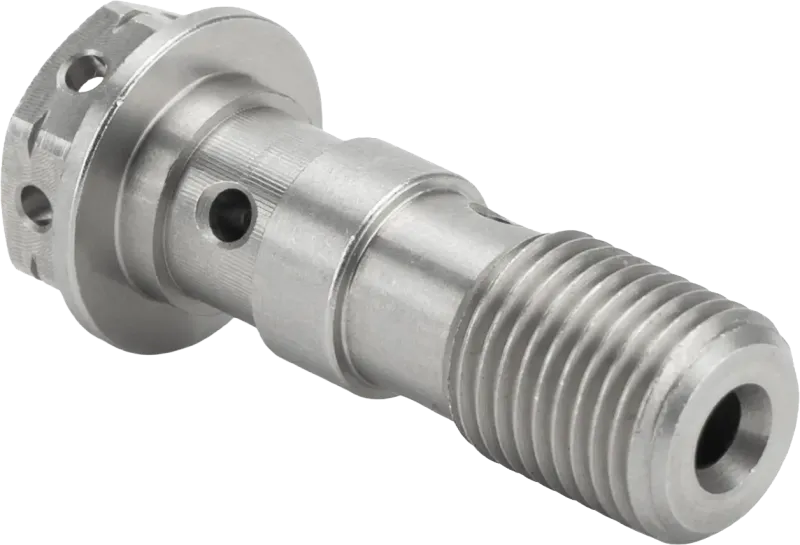

Our race-ready single banjo bolts with lockwire holes connect one banjo fitting to a hydraulic port, while the lockwire-compatible double banjo bolts connect two fittings to a single port. Both options are built for racing reliability and ease of lockwire installation.
-
Why are these banjo bolts pre-drilled?
To allow the use of lockwire. The pre-drilled hex heads accept 0.8mm stainless safety wire, preventing loosening from vibration – a must in motorsport builds.
-
What sizes are available?
We offer our lockwire-ready single banjo bolts in AN3 (3/8"-24 UNF), M10 x 1.00, and M10 x 1.25. The race-spec double banjo bolts are available in M10 x 1.00 and M10 x 1.25, covering the most common thread sizes used in racing brake and clutch systems.
-
Do I need to use washers with these bolts?
Yes. For a proper seal, use two copper crush washers with single bolts and three with double bolts. We recommend our Copper Crush Washers for dependable, leak-free installation in high-pressure systems.
-
Are these compatible with braided hoses and AN fittings?
Absolutely. Our single race spec banjo bolts and double race spec banjo bolts are compatible with most braided hose kits and AN-adapted systems used in racing and performance applications. Just match the thread type and length to your components.
