Setrab PROLINE Oil Coolers, M22 Ports

Name: Setrab PROLINE Oil Coolers, M22 Ports
Brand: Setrab
SKU: PROLINE-STD
Price: 89.88 GBP
Availability: InStock

Length

210mm (Series 1)

330mm (Series 6)

405mm (Series 9)

Hose Adaptersoptional

£89.88

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

Setrab Oil Coolers – ProLine Performance for Race, Road & Track

Setrab oil coolers are the trusted choice of motorsport teams and performance builders worldwide. Designed for maximum heat transfer in a compact, lightweight form, each Setrab ProLine oil cooler delivers reliable oil temperature control across demanding applications – from race cars to tuned road builds.

Why Choose a Setrab Oil Cooler?

Race-Proven Performance

With a long heritage in motorsport, Setrab oil coolers offer consistent, high-efficiency cooling in extreme conditions. Their stacked-plate design ensures rapid heat dissipation with excellent airflow characteristics.
Lightweight, Durable Construction

Each oil cooler Setrab unit is made from lightweight aluminium with a durable epoxy coating—balancing minimal weight with rugged durability for long-term reliability on and off the track.
Flexible Use Across Systems

Setrab oil coolers are suitable for engine oil, gearbox oil, differential cooling, power steering, and more—making them ideal for both motorsport and high-performance road applications.
M22 x 1.5 Female Ports for Custom Fittings

All Setrab ProLine oil coolers feature standard M22 x 1.5 ports, compatible with a wide range of fittings and hose ends. If you're not replacing an existing Setrab unit, you'll need adapter fittings to suit your system.

Compact Yet Capable

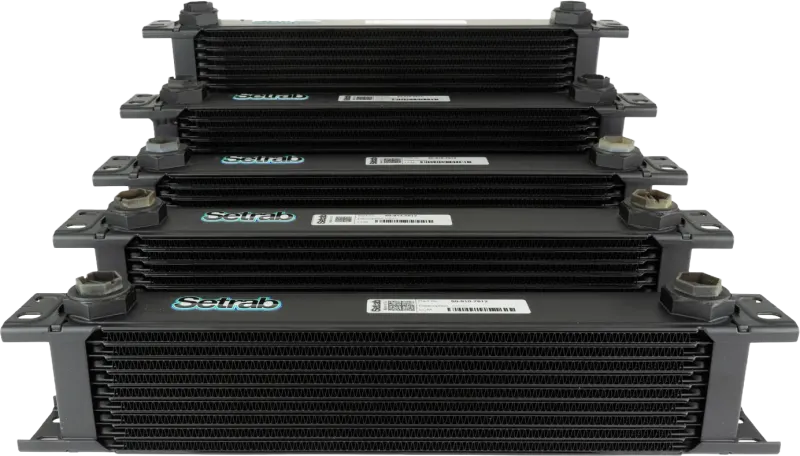

Each Setrab oil cooler has a core depth of 50mm and uses the same efficient, modular stacked-plate design—providing excellent cooling in a minimal footprint. Available in various sizes to suit different engine setups, space constraints, and cooling demands.

Whether you're managing engine oil, transmission fluid, or power steering temperatures, Setrab oil coolers deliver reliable, race-ready cooling you can count on.

Oil Cooler: 1 x Setrab ProLine STD Oil Cooler Supplied in the selected series and row configuration
Hose Adapters: 2 x Optional AN Hose Adapters Supplied in the selected AN6, AN8, AN10 or AN12 size when added to your configuration

Setrab ProLine STD oil cooler dimensions
Series & Rows	Setrab Code	Overall Length	Matrix Width	Height	Depth
Series 1 10 Row	50-110-7612	210mm	115mm	76mm	50mm
Series 1 13 Row	50-113-7612	210mm	115mm	99mm	50mm
Series 1 16 Row	50-116-7612	210mm	115mm	122mm	50mm
Series 1 19 Row	50-119-7612	210mm	115mm	146mm	50mm
Series 1 25 Row	50-125-7612	210mm	115mm	193mm	50mm
Series 6 10 Row	50-610-7612	330mm	235mm	76mm	50mm
Series 6 13 Row	50-613-7612	330mm	235mm	99mm	50mm
Series 6 16 Row	50-616-7612	330mm	235mm	122mm	50mm
Series 6 19 Row	50-619-7612	330mm	235mm	146mm	50mm
Series 6 25 Row	50-625-7612	330mm	235mm	193mm	50mm
Series 6 34 Row	50-634-7612	330mm	235mm	264mm	50mm
Series 9 10 Row	50-910-7612	405mm	310mm	76mm	50mm
Series 9 13 Row	50-913-7612	405mm	310mm	99mm	50mm
Series 9 15 Row	50-915-7612	405mm	310mm	115mm	50mm
Series 9 19 Row	50-919-7612	405mm	310mm	146mm	50mm
Series 9 25 Row	50-925-7612	405mm	310mm	196mm	50mm
Series 9 34 Row	50-934-7612	405mm	310mm	264mm	50mm

Cooler Type: Setrab ProLine STD High-performance stacked-plate oil cooler
Material: Aluminium Lightweight heat exchanger construction
Finish: Epoxy Coated Provides additional protection against corrosion

Oil Port Threads: M22 x 1.50 Two female threaded ports
Hose Connections: 2 Oil inlet and outlet connections for the cooler circuit
Maximum Port Tightening Torque: 40 Nm Maximum specified connection tightening torque

Dynamic Working Pressure: 0–10 bar 0–145 PSI
Maximum Pressure: 12 bar 174 PSI · Rated for 10,000 pressure pulsations
Burst Pressure: 37 bar 537 PSI
Operating Temperature: -40°C to 150°C -40°F to 302°F Pressure pulsation suitability above 120°C should be evaluated for the application

Pressure Pulsation Endurance: Minimum 200,000 Pulsations 0–10 bar · 2 Hz · 60°C oil temperature
Pressure Test: Minimum 10 bar 145 PSI
Leak Test: 10 bar Maximum specified leakage rate 3cc/min
Corrosion Endurance: 20 Days According to SWAAT G 85-94 A3 for painted coolers
Internal Cleanliness: ISO 4406 16/14 Alternative cleanliness specifications available upon request
Dimensional Tolerances: ISO 2768-v General dimensional tolerance standard

Engine Oil
Transmission Oil
Gear Oil
Differential Oil
Power Steering Fluid
Water/Glycol Coolant

Setrab specifies compatibility with oil and water-based coolant containing at least 40% glycol or suitable corrosion inhibitors.

Engine Oil Coolers
Transmission Oil Coolers
Gearbox Oil Coolers
Differential Oil Coolers
Power Steering Coolers
Track Cars
Motorsport

AN Hose Adapters

Choose adapters with an M22 x 1.50 thread on one end and the appropriate AN hose size on the other.

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are the main features of a Setrab oil cooler?
A Setrab oil cooler features lightweight aluminium construction, a stacked-plate design for efficient cooling, and corrosion-resistant epoxy coating. The standard M22 x 1.5 ports offer flexible fitting options, making them suitable for a wide range of motorsport and road setups.
What can I use Setrab oil coolers for?
Setrab oil coolers are commonly used to cool engine oil, transmission fluid, differential oil, and power steering systems. They're trusted in motorsport, motorcycle racing, and high-performance automotive builds where precise oil temperature control is essential.
How do I choose the right size Setrab oil cooler?
The correct Setrab oil cooler size depends on engine oil volume, vehicle use (track vs. road), and available mounting space. Larger oil systems or high-heat applications benefit from wider or taller core configurations. We recommend reviewing temperature targets and space constraints before selecting.
Are the M22 ports on Setrab coolers compatible with standard fittings?
Yes, the M22 x 1.5 ports used on Setrab oil coolers are compatible with a variety of adapter fittings. This allows seamless integration with AN hoses or push-on fittings depending on your system requirements.
Can a Setrab oil cooler be mounted in different positions?
Absolutely. A Setrab oil cooler can be mounted vertically or horizontally as needed. The key is to maintain proper airflow and ensure secure mounting to avoid vibration-related damage during use.
How should I maintain and clean my oil cooler?
For long service life, inspect your Setrab oil cooler regularly for blockages, damage, or leaks. Clean debris from the cooling fins using compressed air or a soft brush, and flush the internal core if contaminated during engine failure or fluid changes.
