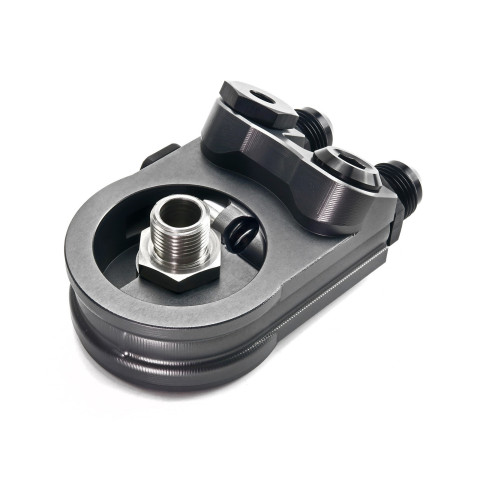

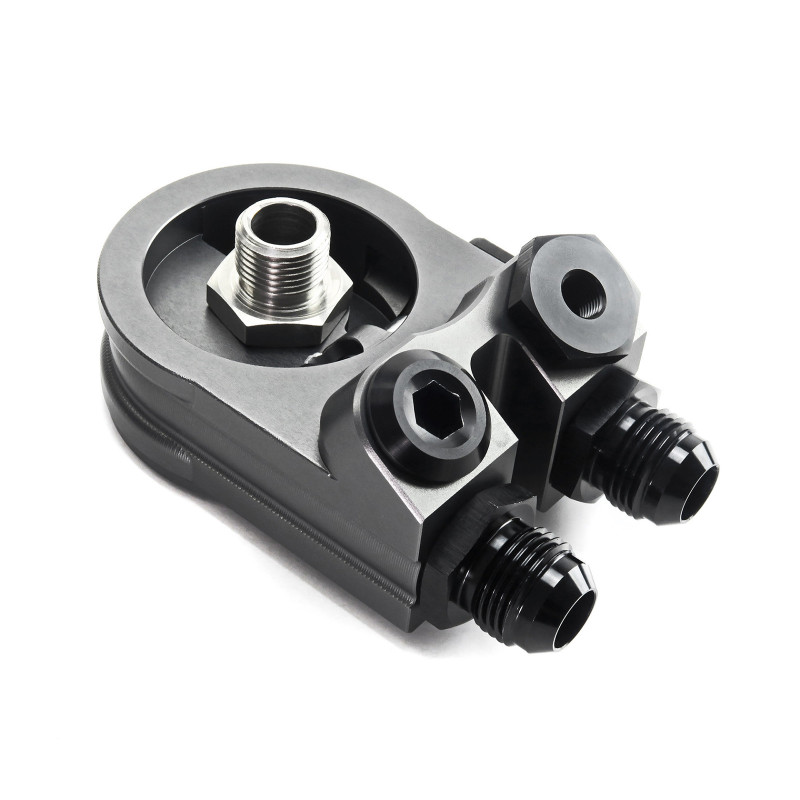

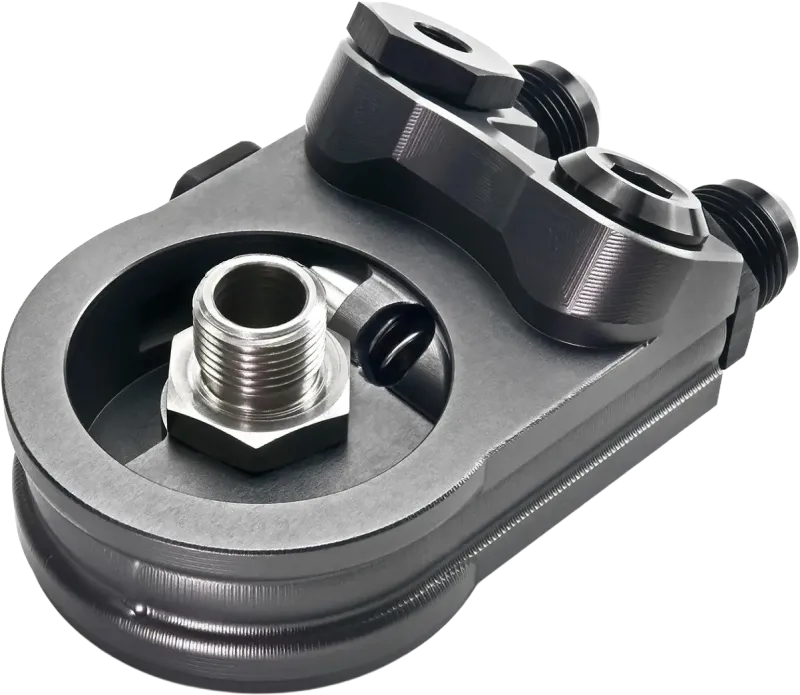

Oil Filter Sandwich Plate with Thermostat, Multi-Angle – Flexible Oil Line Routing with Built-In Thermal Control

Our Oil Filter Sandwich Plate with Thermostat, Multi-Angle is the ideal solution for high-performance oil cooling setups where hose orientation is key. Featuring adjustable multi-angle outlet fittings and an internal thermostat, this plate allows precise oil routing while maintaining optimum temperature control.

Key Features

Thermostatic Oil Management

Choose your desired thermostat activation temperature:
- 82°C (180°F)
- 92°C (198°F)
- 102°C (216°F)
Prevents overcooling and ensures your engine oil warms up efficiently.
Multi-Angle Hose Adaptability

Unique rotating outlet design allows you to position your oil cooler lines in the most efficient orientation for tight or complex engine bays.
Thread & Adapter Options

Fits most engines via:
- M20 x 1.5
- 3/4"-16 UNF
Optional fittings:
- 2x AN8 Male
- 2x AN10 Male
- 2x AN12 Male
Sensor Port Compatibility

Option to add a sensor port plug for pressure or temperature monitoring:
- 1/8"-27 NPT
- M10 x 1.00
- M12 x 1.5

Upgrade your oil cooler setup with the Oil Filter Sandwich Plate with Thermostat, Multi-Angle — engineered for high flow, thermal control, and versatile installation in motorsport and performance builds.

Sandwich Plate: 1 x Multi-Angle Oil Filter Sandwich Plate Supplied with the selected thermostat installed
Oil Filter Centre Bolt: 1 x Threaded Centre Bolt Supplied in the selected M20 x 1.50 or 3/4"-16 UNF oil filter thread
Additional Ports: 2 x Blanking Plugs or Optional Sensor Port Adapters Supplied to suit your selected configuration
Oil Filter Seal: 1 x Nitrile O-Ring For sealing the sandwich plate against the oil filter
Hose Adapters: Optional AN Hose Adapters Supplied in the selected AN size when added to your configuration

Material: 6082-T6 Aluminium Lightweight, high-strength alloy
Finish: Grey Anodised Protects against wear and corrosion
Seal: Nitrile O-Ring Included Provides a secure seal for the oil filter
Manufactured In: United Kingdom Precision CNC machined

Thermostat Type: Built-In Oil Thermostat Designed to regulate oil temperature in external oil cooler systems
Operation: Thermostatic Begins opening at the selected activation temperature and progressively opens as oil temperature rises
Oil Circulation: Continuous Bypass Flow Maintains a minimum oil flow through the cooler circuit during warm-up, helping reduce thermal shock

Oil Port Threads: M22 x 1.50 Four female threaded ports
Oil Filter Centre Bolt Thread Options: M20 x 1.50 3/4"-16 UNF Select to match the engine's oil filter mounting thread
Additional Ports: 2 Blanked as standard with optional sensor port adapters
Sensor Port Adapter Options: 1/8"-27 NPT M10 x 1.00 M12 x 1.50 For compatible oil temperature or pressure sensors

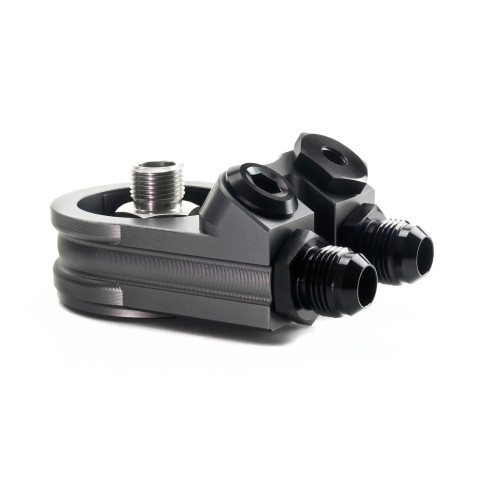

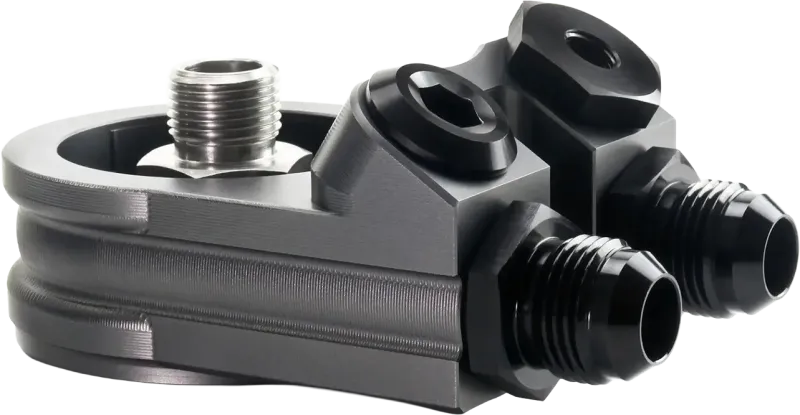

Port Configuration: 2 x Straight 2 x 45° Four configurable oil ports

The oil cooler hose connections are used as a pair, using either both straight ports or both 45° ports. The remaining two ports are used for blanking plugs or optional sensor port adapters.

Length: 103mm 4.05" · Excluding adapters
Width: 78.4mm 3.08" · Widest point including thermostat cap
Thickness: 32mm 1.26" · Excluding additional ports and O-ring
Weight: 328g 0.72lb · Excluding adapters
Compatible Oil Filter O-Ring Diameter: 52–75mm 2.04–2.95"

Available thermostatic oil filter sandwich plate options
Activation Temperature
82°C 180°F
92°C 198°F
102°C 216°F

Engine Oil Coolers
Oil Cooler Systems
Motorsport Oil Systems

Engine Oil

Choose adapters with an M22 x 1.50 thread on one end and the appropriate AN hose size on the other. Replacement thermostats, service kits and o-rings are also available.

Free repair or replacement for two years from the date of purchase. Learn more
