Custom AN6 PTFE Hoses
- £7.15
Product Overview
Description
Technical Details
Specifications
Hose Dimensions
- Size
- AN6 -6 AN · Dash 6
- Inner Diameter
- 8mm 5/16"
- Outer Diameter
- 11mm 7/16"
- Length Tolerance
- ±5mm Maximum finished hose length
Hose Construction
- Inner Material
- PTFE Excellent chemical and temperature resistance
- Outer Material

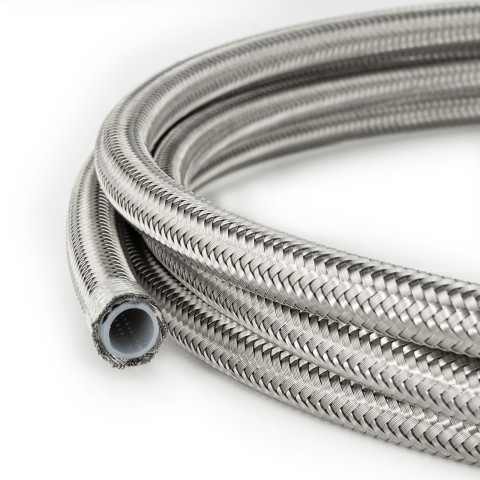

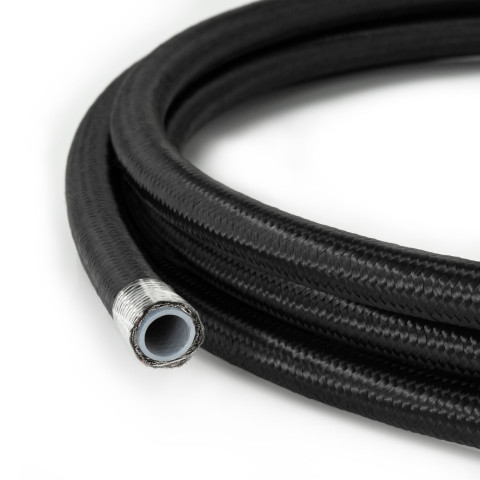

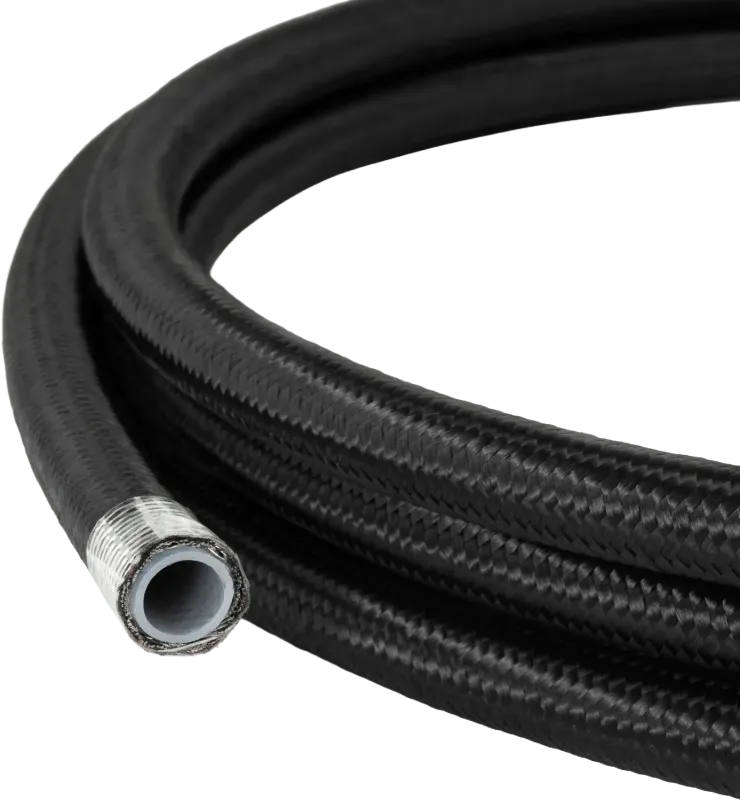

- Stainless Steel Braid Optional black nylon cotton outer braid
- Bore Type
- Smooth Bore
- Conductive
- No Non-conductive PTFE liner
Pressure & Temperature
- Maximum Operating Pressure
- 3,000 PSI 207 bar
- Burst Pressure
- 10,000 PSI 690 bar
- Operating Temperature
- -70°C to 250°C -94°F to 482°F
Outer Braid Comparison
| Specification | Stainless Steel Braided | Stainless Steel Braided with Black Nylon Cotton |
|---|---|---|
|
45mm
1.8"
|
40mm
1.6"
|
|
| Hose Weight |
139g
Per metre of hose
|
151g
Per metre of hose
|

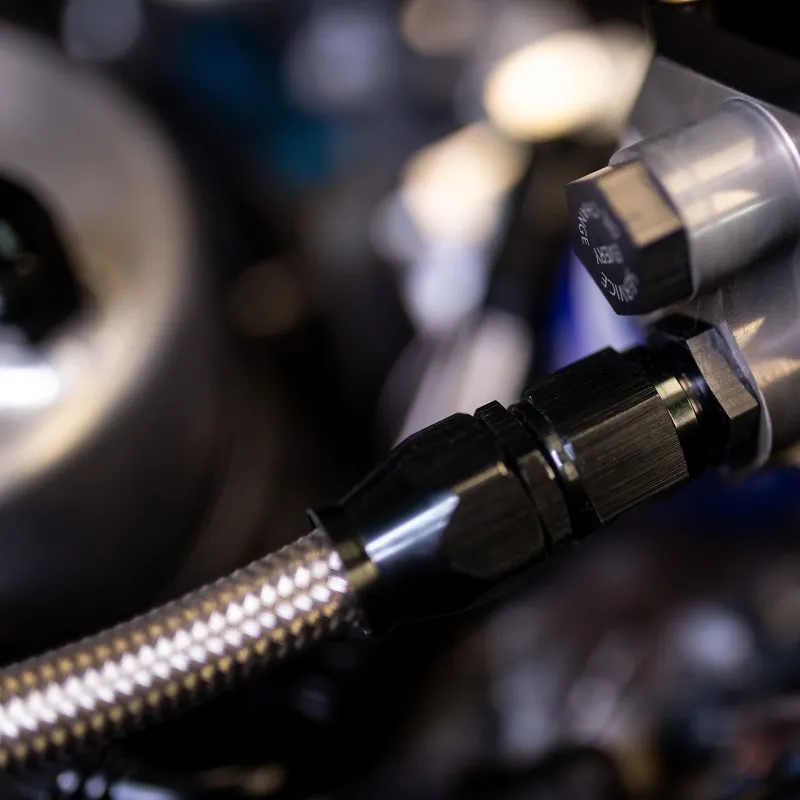

Fittings
- Size
- AN6 -6 AN · Dash 6
- Thread
- 9/16"-18 UNF AN6 Female thread
- Flare Type
- JIC 37° Cone flare
- Material
- 6061-T6 Aluminium Lightweight, high-strength alloy
- Finish
- Black Anodised Protects against wear and corrosion
- Rotation
- 360° Double Swivel Align and tighten without twisting the hose
- Flow Design
- Full-Flow Maintains maximum internal flow
Assembly
- Assembly Method
- Compression Olive Creates a secure seal without damaging the PTFE liner
- Quality Check
- Ready to Fit Every hose is individually inspected before dispatch
- Reusable Fittings
- Yes Reuse only if the fitting is free from damage. Always fit a new compression olive.
Common Applications
- Fuel Lines
- Oil Lines
- Oil Cooler Lines
- Transmission Cooler Lines
- Hydraulic Lines
- Coolant Lines
Compatible Fluids & Gases
- Hydraulic Oil
- Engine Oil
- Petrol (E5)
- Petrol (E10)
- E85
- Diesel
- Race Fuels
- Ethanol
- Methanol
- Coolant
- Water
- Air
- Carbon Dioxide (CO₂)
- Nitrous Oxide (N₂O)
2-Year Warranty
- Free repair or replacement for two years from the date of purchase. Learn more
-
Are your custom AN6 PTFE lines covered by a warranty?
Yes, our custom AN6 lines include a 2-year warranty as standard. This warranty covers any defects in materials or workmanship.
-
Can I return or exchange my custom AN6 lines?
Yes, we offer a 100-day hassle-free returns policy for these AN6 lines. We know mistakes can happen and we want to make sure you are completely satisfied. However, please double-check your choices before ordering to avoid any silly mistakes, it does cost us to replace them!
-
Can I use AN6 PTFE hoses for oil, fuel, and coolant?
Yes, AN6 braided PTFE hoses are designed to handle a variety of fluids, including oil, fuel, and coolant. They are commonly used in automotive and motorsport applications for these purposes due to their durability and reliability. Braided PTFE hose is a very popular choice for custom fuel hoses.
-
Do AN6 hoses require special tools for installation?
Our custom AN lines don't need any special tools for installation. All PTFE braided hoses arrive ready to fit and can be installed using basic tools.
-
Do the hoses require regular maintenance?
AN6 hoses are generally low maintenance, but it's a good idea to inspect them regularly for wear and tear, especially if they're exposed to high temperatures or pressures.
-
How long will my custom AN6 hoses last?
The lifespan of your custom braided hoses depends on how they're used. With correct installation and regular checks they can last for years, even in harsh conditions. For your peace of mind, our 2-year warranty also protects against material or workmanship defects.
-
How to make custom AN6 lines?
Our custom braided hose builder makes designing your custom hoses a breeze. Simply choose your hose fittings, add adapters and banjo bolts if needed and finally, choose your hose length and heatsleeve if you need it. We'll start assembling your hoses as soon as we receive your order.
-
How do I measure the hose?
The easiest way to measure your custom hose is with a piece of flexible wire or sturdy string. Make sure you go around all objects and follow all curves to make sure you don't measure the hose too tight, or the hose will be stretched when you fit it. You need to measure from the seats of male and female fittings and from the center of the hole on banjo fittings. Refer to the two vertical lines on the hose builder diagram when building your hoses as the length measurement will change depending on the chosen fitting.
-
How are your AN6 PTFE hose fittings attached to the hose?
Our braided PTFE hose fittings feature a modern, tapered screw design for a tight, leak-free connection. First, we slide the fitting collar onto the cleanly cut hose, then with the hose secured in an aluminium vice, we use an aluminium spanner to screw the nut end of the fitting into its collar. We're very careful not to over tighten as this can crack and damage the fitting.
-
Are your custom braided hoses suitable for track use?
Our custom AN hoses have been tested and trusted at the highest levels of motorsport, including British Touring Cars and Drift Masters
-
What is AN6?
AN6 is a hose fitting size, which is commonly used for automotive fluid connections. You can find detailed AN6 hose specifications on our AN hose specifications page or take a look at the specifications section below.
-
Why can't one end be open-ended like your rubber hoses?
PTFE hoses aren't compatible with hose finishers or jubilee clips, as PTFE doesn't mould or flex like rubber does. To ensure safety and reliability, we only supply our custom PTFE hoses with both PTFE hose fittings securely attached.
