All our aluminium hose end fittings are reusable and also swivel, allowing you to orientate them yourself to the angle you need. If needed, you can add an adapter below once you've chosen your fitting.
All our aluminium hose end fittings are reusable and also swivel, allowing you to orientate them yourself to the angle you need. If needed, you can add an adapter below once you've chosen your fitting.
You have a choice of high performance braided hose. Detailed braided hose specifications can be found below.
Use the vertical lines on the diagram to calculate the length. Measure from seat to seat, except for banjo fittings, which are measured from the center of the banjo eye.
The length tolerance is ±5mm.
If you have any additional instructions or vehicle information to share, let us know here.
Enter a label if you would like this line labelled in its own bag.
- £6.89
- FREE UK DeliveryNext working day and worldwide delivery options also available.
- FREE 100-Day Hassle-Free ReturnsLearn more about our returns policy.
Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.
Custom AN6 Reinforced Rubber Braided Hoses – Built for Motorsport
In a high-performance fluid system, reliability is what matters most. Whether you're on track or driving a big-power road car, our custom AN6 braided oil, fuel and coolant hoses are engineered for those seeking superior coolant flow.
With a strong reinforced rubber inner core and your choice of high-quality braided outer layer, our AN6 custom hoses are designed to handle the most extreme conditions with ease. Paired with our full-flow braided hose fittings, these are hoses you can trust.
Custom AN6 Hose Features
-
AN6 Hose

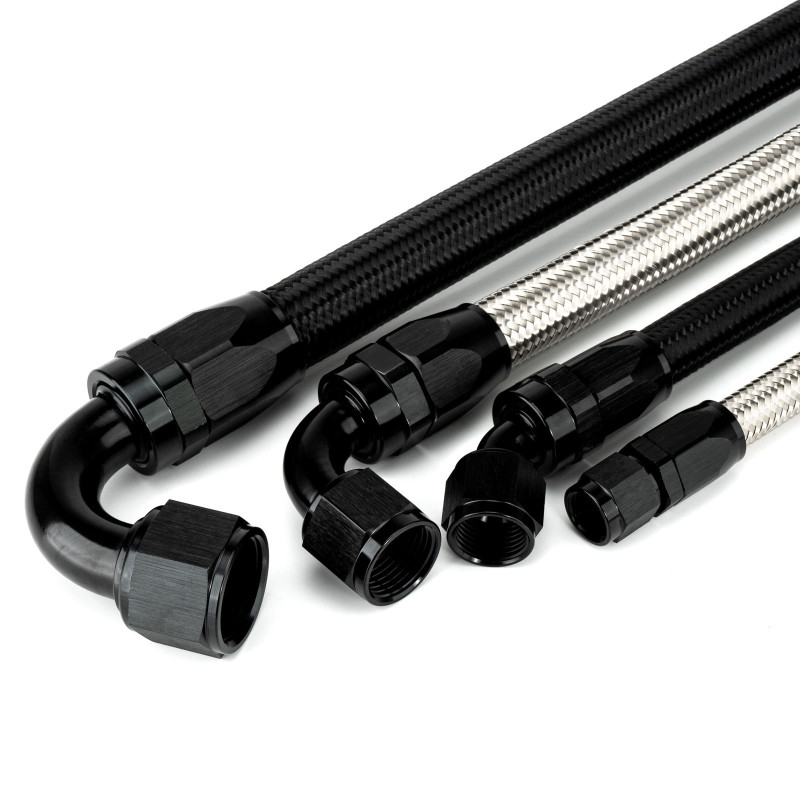

Choose stainless steel braided if you're looking for the highest pressure rating and maximum abrasion resistance. Alternatively, the black nylon cotton braided option offers a sleek, modern look and is slightly more flexible and lightweight than the stainless steel braided. Whichever braiding you choose, they both have the same reinforced rubber inner core, which delivers consistent and reliable oil, fuel and coolant transfer.
-
Bespoke AN6 Fittings
AN6 braided hoses tailor-made to your exact specifications. Choose from various AN6 fittings available in different angles, or choose a hose finisher for a neat way to terminate an open-ended hose. You can also add optional adapters to the fittings for a seamless integration into most AN6 hose systems.
-
360 Degree Swivel Fittings
All our AN6 braided hose fittings feature a 360-degree swivel design, allowing you to easily rotate and align the fittings to any orientation you need.
Why AN6 Braided Hoses from Custom Hoses?
-
Proven Under Pressure
Our AN6 braided hoses are designed to perform in high-pressure and high-temperature motorsport environments. Our pre-made braided hoses deliver consistent performance, even under the most demanding conditions.
-
Expertly Assembled
We have over 15 years experience and each hose is professionally assembled and quality checked to ensure reliable fluid transfer. If you're not 100% confident assembling your own braided hoses from individual parts, let us take the worry away from you. We also use custom aluminium tools to make sure the aluminium hose fittings stay unmarked and scratch-free.
-
No Leaks, No Worries
Our AN6 hose fittings feature a modern, tapered screw design that ensure a secure, tight seal without damaging and cutting into the hose, unlike cheaper AN6 hoses elsewhere.
-
Strength Meets Style
Our braided hose design not only looks great, but it provides a durability that ordinary rubber hoses simply can't match. The hard-wearing anodised black aluminium hose fittings also look the part in any fluid system.
Upgrade your hoses with our reliable oil, fuel and coolant braided hoses today. Start building your AN6 braided hoses now!
-
Are your custom AN6 lines covered by a warranty?
Yes, our custom AN6 lines include a 2-year warranty as standard. This warranty covers any defects in materials or workmanship.
-
Can I return or exchange my custom AN6 lines?
Yes, we offer a 100-day hassle-free returns policy for these AN6 lines. We know mistakes can happen and we want to make sure you are completely satisfied. However, please double-check your choices before ordering to avoid any silly mistakes, it does cost us to replace them!
-
Can I use AN6 hoses for oil, fuel, and coolant?
Yes, AN6 hoses are designed to handle a variety of fluids, including oil, fuel, and coolant. They are commonly used in automotive and motorsport applications for these purposes due to their durability and reliability.
-
Do AN6 hoses require special tools for installation?
Our custom hoses don't need any special tools for installation. All braided hoses arrive ready to fit and can be installed using basic tools.
-
Do the hoses require regular maintenance?
AN6 hoses are generally low maintenance, but it's a good idea to inspect them regularly for wear and tear, especially if they're exposed to high temperatures or pressures.
-
How long will my custom AN6 hoses last?
The lifespan of your custom braided hoses depends on how they're used. With correct installation and regular checks they can last for years, even in harsh conditions. For your peace of mind, our 2-year warranty also protects against material or workmanship defects.
-
How to make custom AN6 lines?
Our custom braided hose builder makes designing your custom hoses a breeze. Simply choose your hose fittings, add adapters and banjo bolts if needed and finally, choose your hose length and heatsleeve if you need it. We'll start assembling your hoses as soon as we receive your order.
-
How do I measure the hose?
The easiest way to measure your custom hose is with a piece of flexible wire or sturdy string. Make sure you go around all objects and follow all curves to make sure you don't measure the hose too tight, or the hose will be stretched when you fit it. You need to measure from the seats of male and female fittings and from the center of the hole on banjo fittings. Refer to the two vertical lines on the hose builder diagram when building your hoses as the length measurement will change depending on the chosen fitting.
-
How are your AN6 hose fittings attached to the hose?
Our braided hose fittings feature a modern, tapered screw design for a tight, leak-free connection. First, we slide the fitting collar onto the cleanly cut hose, then with the hose secured in an aluminium vice, we use an aluminium spanner to screw the nut end of the fitting into its collar. We're very careful not to over tighten as this can crack and damage the fitting.
-
Are your custom braided hoses suitable for track use?
Our custom AN hoses have been tested and trusted at the highest levels of motorsport, including British Touring Cars and Drift Masters
-
What is AN6?
AN6 is a hose fitting size, which is commonly used for automotive fluid connections. You can find detailed AN6 hose specifications on our AN hose specifications page or take a look at the specifications section below.
| Stainless Steel Braided | Black Nylon Cotton Braided | |
| Maximum Operating Pressure | 1000 PSI (68.9 BAR) | 500 PSI (34.5 BAR) |
| Burst Pressure | 6000 PSI (413.7 BAR) | 2000 PSI (137.9 BAR) |
| Minimum Bend Radius | 38mm (1.5") | 35mm (1.4") |
| Outer Hose Material | Stainless Steel Braiding (303/304) | Black Nylon Cotton Braiding |
| Inner Hose Material | CPE Rubber (reinforced with an embedded stainless steel weave) | |
| Hose Bore Type | Smooth Bore | |
| Inner Diameter (ID) | 8mm (5/16") | |
| Outer Diameter (OD) | 14mm (9/16") | |
| Hose and Fittings Size | AN6 (-6 AN, Dash 6) | |
| Female Thread Size | 9/16"-18 UNF (approx. 13mm diameter) | |
| Flare Type | JIC (37° Flare) | |
| Fittings Type | Double Swivel (Full Flow) | |
| Fittings Material | Aluminium Alloy (6061-T6) | |
| Operating Temperature Range | -40°C to 150°C (-40°F to 302°F) | |
| Fluid Compatibility |
|
|
| Common Applications | Coolant Systems, Radiators, Oil Lines, Fuel Lines, Hydraulic Systems | |
| Hose Weight (Per Metre) | 203g (0.45 lbs) | 156g (0.34 lbs) |
The minimum bend radius R is used to determine the tightest curve the hose can make without getting damaged or blocking the flow inside.
