Abrasion Resistant 2:1 Braided Heat Shrink Sleeve

Sleeve Diameter

Info

The sizes follow a 2:1 ratio, where the first measurement represents the unshrunk size, and the second indicates the shrunk size.

£4.14

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

2:1 Braided Heat Shrink Sleeve for Hose & Wiring Protection

This abrasion-resistant braided heat shrink sleeve provides an additional protective covering around compatible hoses, wiring and other routed components. Its braided Polyolefin (PE) and Polyester (PET) construction combines flexibility with resistance to abrasion and chafing.

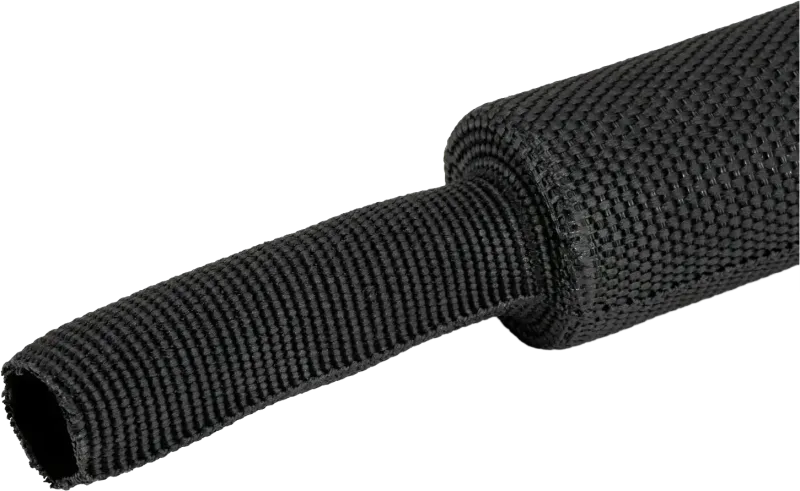

2:1 Heat Shrink Ratio

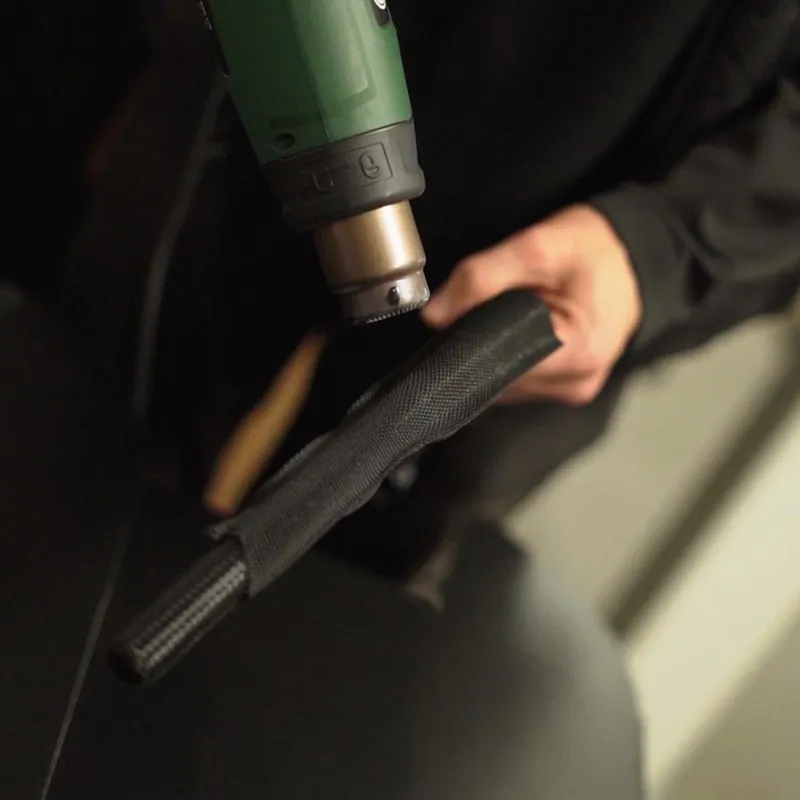

The sleeve has a 2:1 shrink ratio, reducing to approximately half its original internal diameter when correctly heated. Apply heat evenly using a suitable heat gun.

Abrasion Protection

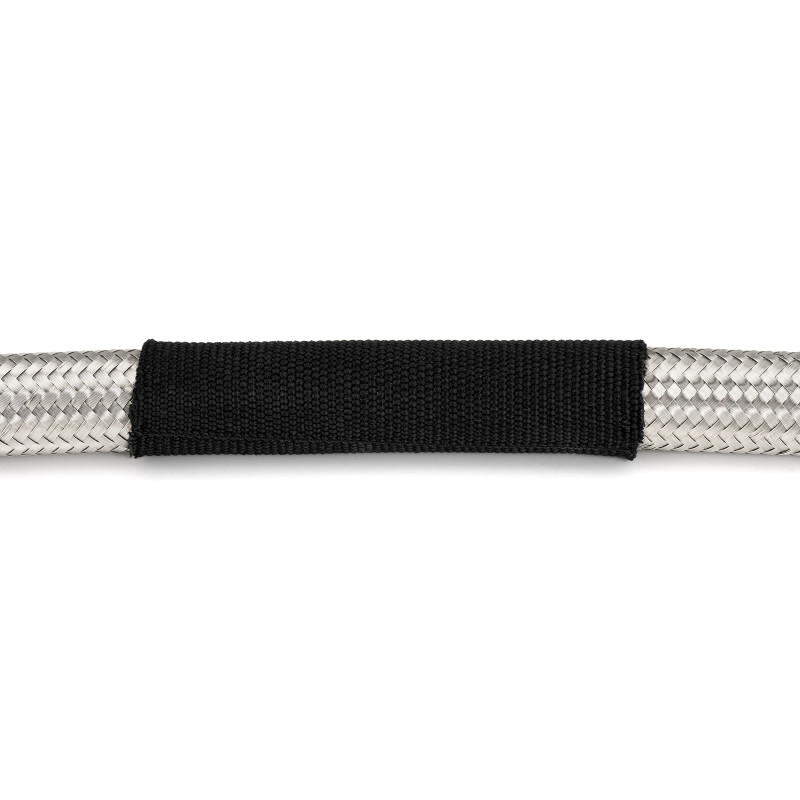

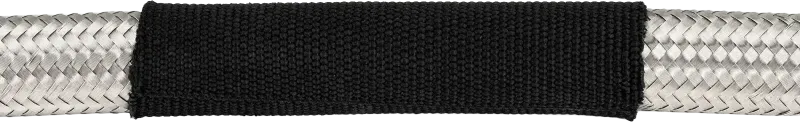

The braided construction provides a protective outer layer for areas where hoses or wiring may be exposed to rubbing, vibration or contact with surrounding components.

Flame Retardant

The sleeve is flame retardant with a VW-1 flammability rating.

Fluid & Chemical Resistance

The material is resistant to hydraulic fluids, fuels, antifreeze and oils, making it suitable for a range of automotive and industrial installations.

Choose by Actual Outside Diameter

Select a sleeve that can pass over the component before shrinking and will contract sufficiently to fit the required finished diameter. The available unshrunk and shrunk internal diameters are shown in the Specifications.

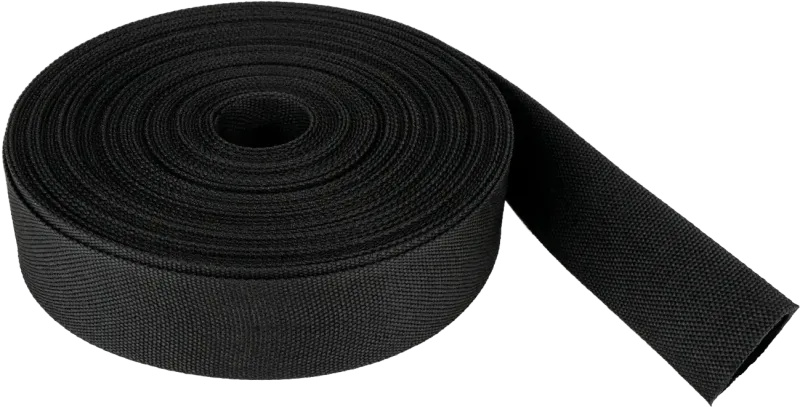

Sold Per Metre

The sleeve is sold per metre. Multiple quantities are supplied in one continuous length wherever possible.

Material: Polyolefin (PE) & Polyester (PET) Braided heat shrink construction
Colour: Matt Black
Shrink Ratio: 2:1 Shrinks to half its original diameter
Wall Thickness: 1mm When fully shrunk
Flame Retardant: Yes Helps reduce flame propagation
Flammability Rating: VW-1 Flame-retardant specification
Halogen Free: Yes Free from halogen-containing materials
Cutting: Easy to Cut to Length Can be trimmed using sharp scissors

Operating Temperature: -40°C to +125°C -40°F to +257°F · Continuous service
Minimum Shrink Temperature: 110°C 230°F
Recommended Shrink Temperature: 120°C–150°C 248°F–302°F · Apply evenly using a heat gun
Melting Point: Over 150°C Over 302°F

Hydraulic Fluids
Fuels
Antifreeze
Oils

Available braided heat shrink sleeve diameters and typical AN hose applications
Product Code	Unshrunk ID	Shrunk ID	Typical AN Hose
SLV-ABR-10-5	10mm	5mm	AN3
SLV-ABR-20-10	20mm	10mm	AN4 Also typically suitable for AN6
SLV-ABR-26-13	26mm	13mm	AN8
SLV-ABR-30-15	30mm	15mm	AN10
SLV-ABR-35-175	35mm	17.5mm	AN12 Also typically suitable for AN16
SLV-ABR-40-20	40mm	20mm	AN20

Select by the actual outside diameter of the component being covered. Typical AN hose references are a guide and may vary with hose construction and outer covering.

Length Supplied: Sold Per Metre Multiple quantities supplied in one continuous length wherever possible

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What is 2:1 braided heat shrink sleeve?
It is a protective braided sleeve that contracts to approximately half its original internal diameter when correctly heated, providing an additional protective covering around compatible hoses, wiring and other components.
What is the sleeve made from?
The sleeve uses a braided Polyolefin (PE) and Polyester (PET) construction.
How do I choose the correct size?
Check the actual outside diameter of the component being covered. The sleeve must be large enough to pass over the component before shrinking and capable of contracting sufficiently around it. Unshrunk and shrunk internal diameters are shown in the Specifications.
What temperature is required to shrink the sleeve?
Shrinking begins from approximately 110°C, with a recommended application temperature of 120°C–150°C. Apply heat evenly using a suitable heat gun.
What is the operating temperature range?
The specified continuous operating temperature range is -40°C to +125°C.
Is the sleeve flame retardant?
Yes. The sleeve is specified as flame retardant with a VW-1 flammability rating.
Can the sleeve be reused after shrinking?
No. Once heat-shrunk into position, the sleeve is not designed for reuse.
How is the sleeve supplied?
It is sold per metre, with multiple quantities supplied in one continuous length wherever possible.
