Aluminium Turbo Oil Return Drain Flange
- £17.99
In Stock
-
Order by 3pm for same-day dispatch. Worldwide delivery available.
-
100-day hassle-free returns – exchange or refund with no questions asked.
Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.
Turbo Oil Drain Flange – AN10 CNC Billet, 1.5"/2" Bolt Spacing with O-Ring
Ensure optimal oil return flow in your turbo system with this robust turbo oil drain flange, designed for high performance and long-term reliability. CNC-machined from premium billet aluminium alloy, this turbo oil return flange features a thick, heavy-duty base that resists warping and leakage, even under extreme engine bay temperatures.
Why Choose This Turbo Oil Return Flange?
-
Heavy-Duty CNC Billet Aluminium
Precision-machined for a perfect seal, this turbo oil flange combines lightweight aluminium with a reinforced base for strength and vibration resistance—ideal for motorsport and turbo conversions.
-

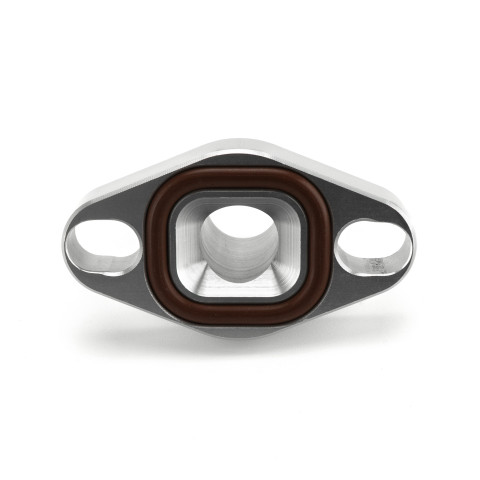

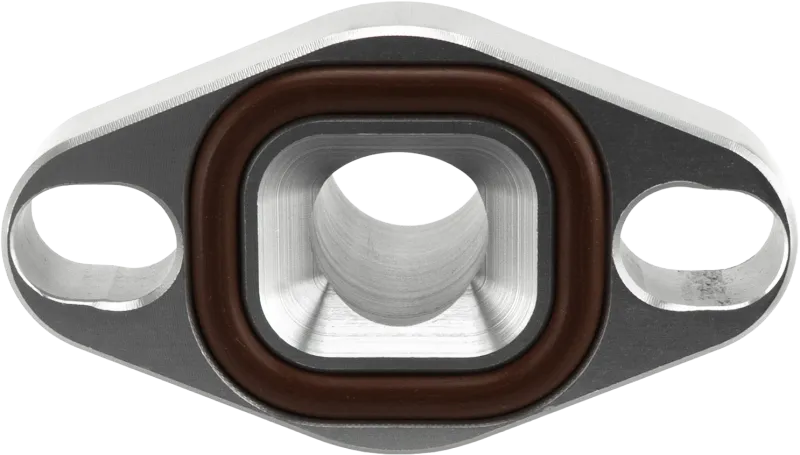

Funnel-Shaped Oil Inlet for Efficient Drainage
The internal oil passage is funnel-shaped to improve oil discharge and reduce the chance of oil back-up—helping protect your turbocharger’s bearings and extend turbo life.
-

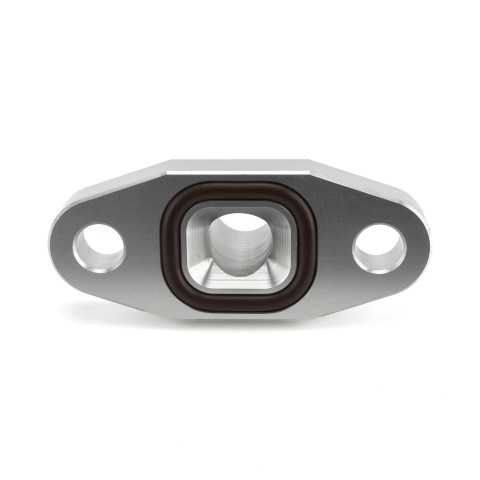

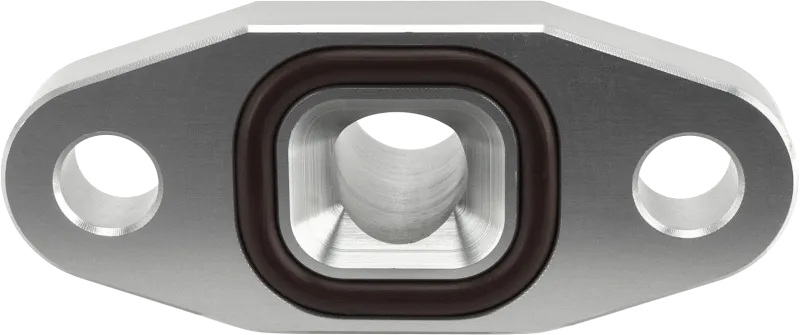

Integrated O-Ring Seal
Unlike traditional flat gaskets, this turbo oil drain flange uses an integrated O-ring design for a cleaner, more reliable seal. It helps prevent leaks and makes installation faster and simpler.
-

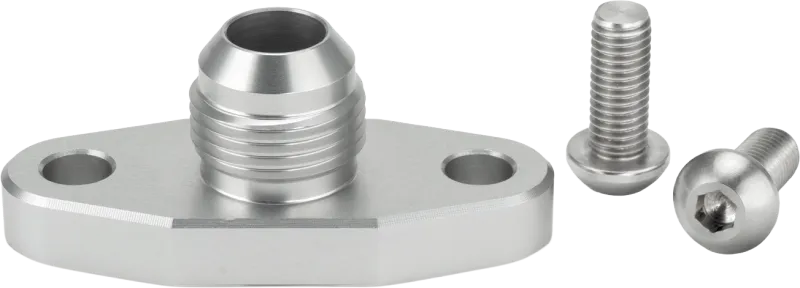

AN10 Male Flare Fitting
Features a built-in AN10 male fitting, perfect for connecting -10AN braided oil return hoses—no welding or extra adapters required.
-
Available in 1.5" or 2" Bolt Spacing
Select the correct bolt hole spacing to match your turbo:
- 38mm (1.5") centre spacing – for GT15, GT25, GT28, etc.
- 50.8mm (2") centre spacing – for T3/T4, Garrett, BorgWarner, Precision, Holset, etc.
-
Complete Turbo Drain Flange Kit

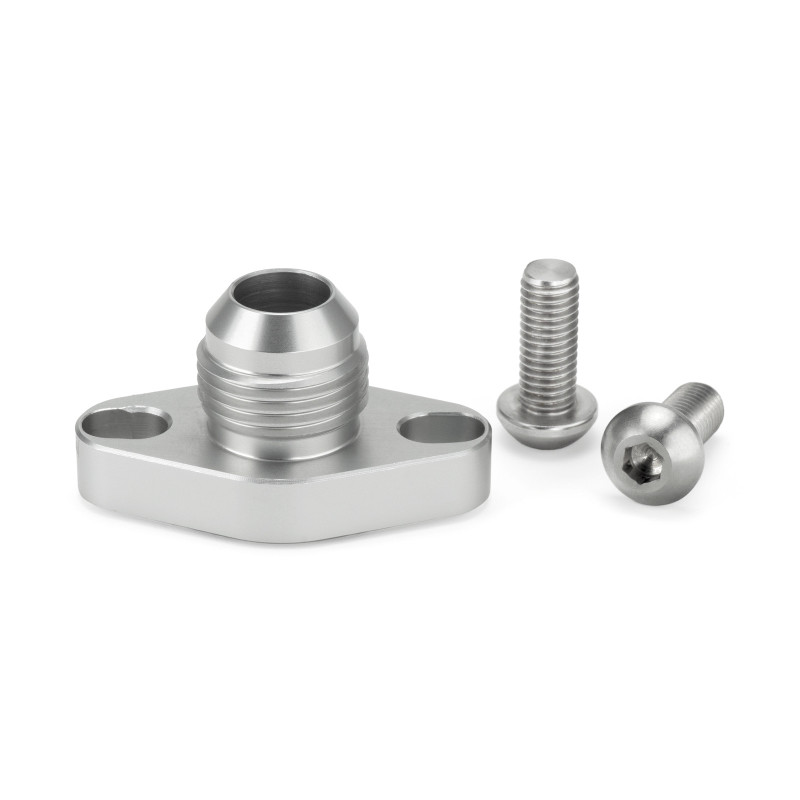

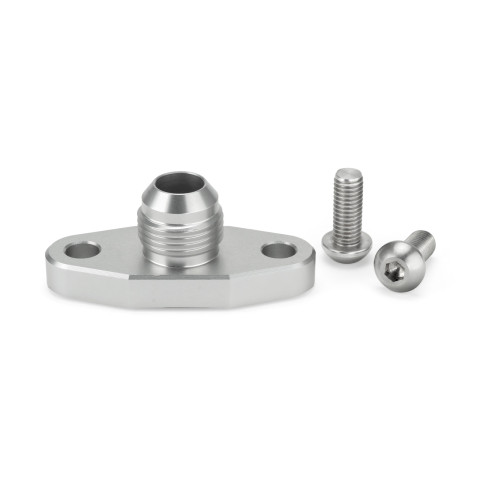

Includes 2x M8 x 1.25 bolts, 2x M8 spring washers, and a high-temp O-ring—everything needed to install your turbo oil return flange cleanly and securely.
Perfect for drift builds, time attack cars, track projects or turbo conversions, this AN10 turbo oil drain flange is engineered for serious performance and leak-free reliability.
| Product Code | OIL-FLA-15-AN10-AL | OIL-FLA-20-AN10-AL |
|---|---|---|
| Bolt Hole Spacing | 1.5" (38mm) | 2.0" (51mm) |
| Length | 2.1" (54mm) | 2.8" (70mm) |
| Turbo Compatibility |
|
|
| Thread Size | AN10 | |
| Material | Aluminium | |
-
What is a turbo oil drain flange used for?
A turbo oil drain flange connects the turbocharger’s oil outlet to the oil return line, allowing oil to return to the sump under gravity. It ensures your turbo oil return is smooth and free-flowing to avoid bearing damage or pressure build-up.
-
What makes this turbo oil return flange different?
This turbo drain flange features a funnel-shaped oil inlet to maximise drainage efficiency and reduce oil back-up—extending turbo life. It also uses a thick, rigid base to prevent warping under heat and vibration.
-
What size fitting does it use?
This turbo oil flange includes an integrated AN10 male flare fitting, suitable for -10AN braided oil return hoses—commonly used in high-flow turbo setups.
-
What’s the bolt spacing and compatibility?
Two sizes are available:
- 38mm (1.5") – GT15, GT17, GT25, GT28, and other small-frame turbos
- 50.8mm (2") – T3/T4, Garrett, BorgWarner, Precision, Holset, and others
-
What’s included with this turbo drain flange?
Each kit includes a turbo oil drain flange, high-temp O-ring, 2x M8 x 1.25 bolts, and 2x spring washers. It's a ready-to-fit solution with no extras needed.
-
Is the O-ring better than a traditional gasket?
Yes. The integrated O-ring design provides a more consistent, leak-resistant seal than paper or fibre gaskets. It's easier to install and reusable if undamaged.
-
Can I use this turbo oil drain flange for custom builds?
Absolutely. This flange is perfect for custom turbo setups, engine swaps, or motorsport builds where space, flow, and durability are key.
