Aluminium Bulkhead Pass-Through Plates, Dual
- Free 100-Day Returns
- Free UK Delivery
- £36.74
- FREE UK DeliveryNext working day and worldwide delivery options also available.
- FREE 100-Day Hassle-Free ReturnsLearn more about our returns policy.
Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.

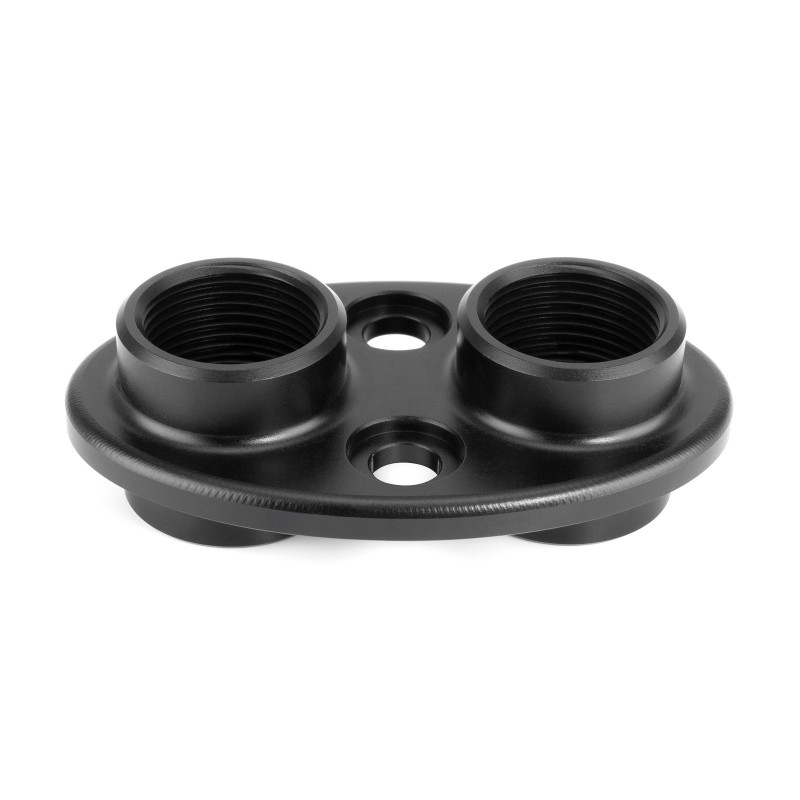

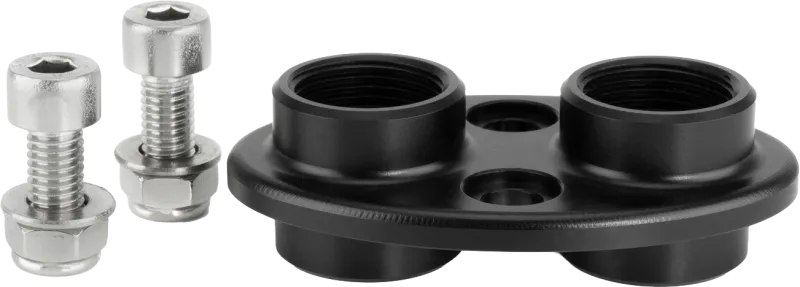

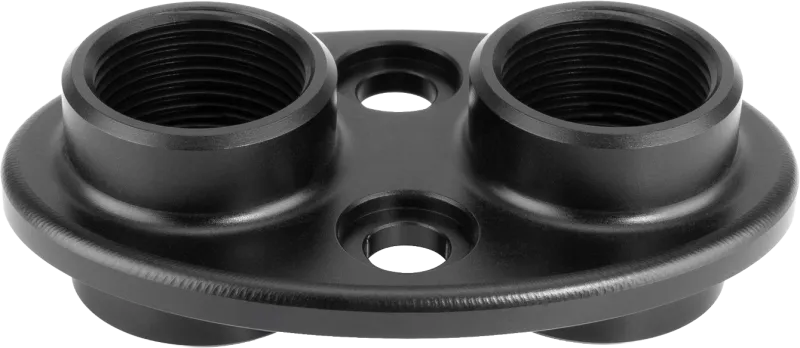

Aluminium Bulkhead Pass-Through Plate – Secure & Leak-Free Fluid Transfer
Designed for seamless integration with vehicle bulkheads, firewalls and custom panels, our twin bulkhead pass-through plate ensures a secure and reliable way to transfer fuel, oil, air, and coolant between compartments. Featuring four fully threaded inlet and outlet ports, this versatile bulkhead plate is compatible with a wide range of threaded adapters.
Why Choose Our Bulkhead Pass-Through Plate?
-
Seamless Fluid Transfer
Allows for secure, leak-free routing of fuel, oil, air, and coolant through bulkheads, firewalls, and panels while maintaining system integrity.
-
Adapter Compatibility
This bulkhead plate requires separate adapters to connect hoses. We recommend these adapters for each plate option:
-
M22 x 1.5 Plate
M22 x 1.5 to AN6–AN12 adapters.
-
AN20 Plate
AN20 to AN16 or AN20 adapters.
-
-
Built for Performance
Machined from premium-grade aluminium and finished with a durable black anodised coating, this bulkhead plate offers exceptional strength, corrosion resistance, and long-lasting reliability.
-
Watertight O-Ring Seal
An integrated nitrile O-ring on the rear mounting face ensures a weather-resistant, watertight seal, improving durability and leak prevention.
-
Easy Installation
We include a drilling diagram for precise, easy installation.
What is a Bulkhead Pass-Through Plate?
A bulkhead pass-through plate is a precision-machined component designed to facilitate secure fluid transfer between compartments. It plays a vital role in race cars, custom builds, and high-performance vehicles, ensuring safe and efficient hose routing.
Built for Performance, Trusted by Professionals
From custom fuel systems to high-performance cooling setups, our aluminium bulkhead pass-through plates provide the durability and reliability you need. Upgrade your system today for a professional, leak-free solution!
-
What is an aluminium bulkhead pass-through plate?
An aluminium bulkhead pass-through plate is a precision-machined component designed to facilitate secure fluid transfer between compartments. It allows for the routing of fuel, oil, air, and coolant through bulkheads, firewalls, and panels while maintaining system integrity.
-
What are the key features of this dual pass-through plate?
This dual pass-through plate features four fully threaded inlet and outlet ports, ensuring compatibility with a wide range of threaded adapters. It is machined from premium-grade aluminium and finished with a durable black anodised coating, offering exceptional strength and corrosion resistance. Additionally, an integrated nitrile O-ring on the rear mounting face ensures a weather-resistant, watertight seal.
-
What sizes are available for this bulkhead plate?
We offer the following thread sizes to suit various applications:
- M22 x 1.5
- AN20
This range ensures compatibility with various fluid transfer setups.
-
Is this bulkhead plate compatible with your custom braided hoses?
Yes, our aluminium bulkhead pass-through plates are fully compatible with our range of custom braided hoses, including AN-threaded systems. They ensure a secure fit and reliable performance in various fluid transfer applications.
-
Do I need additional components for installation?
Yes, to connect hoses to the bulkhead plate, separate adapters are required. For the M22 x 1.5 plate, we recommend M22 x 1.5 to AN6–AN12 adapters. For the AN20 plate, AN20 to AN16 or AN20 adapters are suitable. Additionally, we include a drilling diagram for precise, easy installation.
