Oil Filter Sandwich Plate with Thermostat, Right-Angle – Precision Oil Cooling with Compact Line Routing

Designed for high-performance engines and tight engine bays, our Oil Filter Sandwich Plate with Thermostat, Right-Angle offers smart temperature control and space-saving line routing. With a built-in thermostat and right-angle outlet ports, it delivers optimal oil flow to your cooler only when needed — reducing warm-up times and avoiding overcooling.

Key Features

Thermostatic Oil Control

Internal thermostat opens fully at your selected activation temperature:
- 82°C (180°F)
- 92°C (198°F)
- 102°C (216°F)
Helps maintain optimal oil temperature for improved performance and engine longevity.
Right-Angle Outlet Design

90° oil cooler line outlets simplify hose routing and improve fitment in tight spaces or custom builds.
Engine Filter Thread Options

Choose from:
- M20 x 1.5
- 3/4"-16 UNF
Fits many Japanese, European, and American engines.
Optional AN Adapters

Select from:
- 2x AN8 Male
- 2x AN10 Male
- 2x AN12 Male
For seamless integration with your oil cooler setup.

Upgrade your oil system with the Oil Filter Sandwich Plate with Thermostat, Right-Angle — the compact and efficient choice for temperature-controlled oil cooling in performance applications.

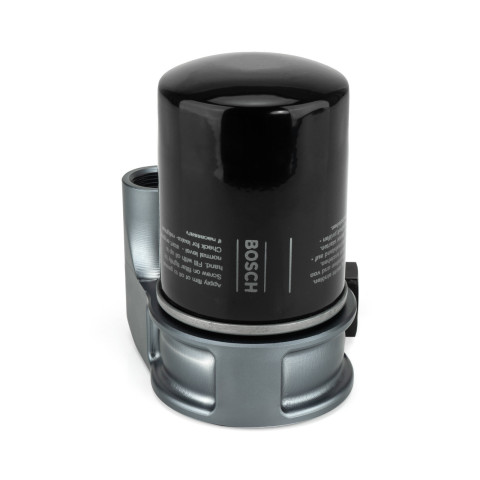

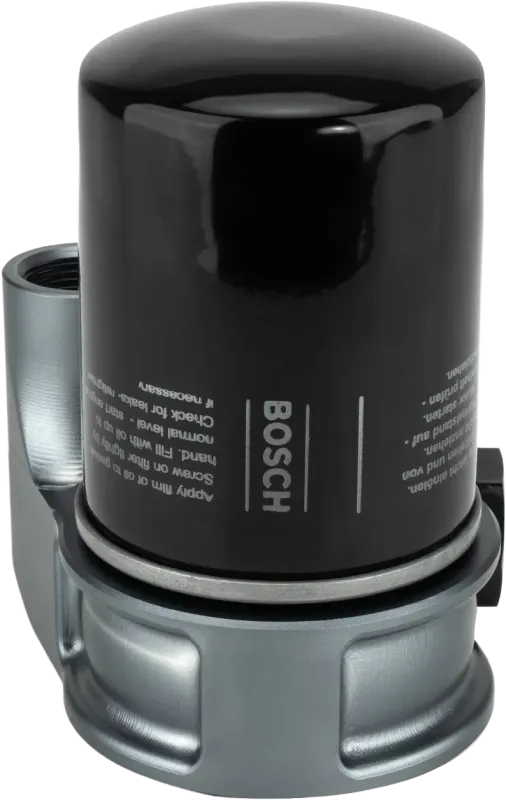

Sandwich Plate: 1 x Right-Angle Thermostatic Oil Filter Sandwich Plate Supplied with the selected thermostat installed
Oil Filter Centre Bolt: 1 x Threaded Centre Bolt Supplied in the selected M20 x 1.50 or 3/4"-16 UNF oil filter thread

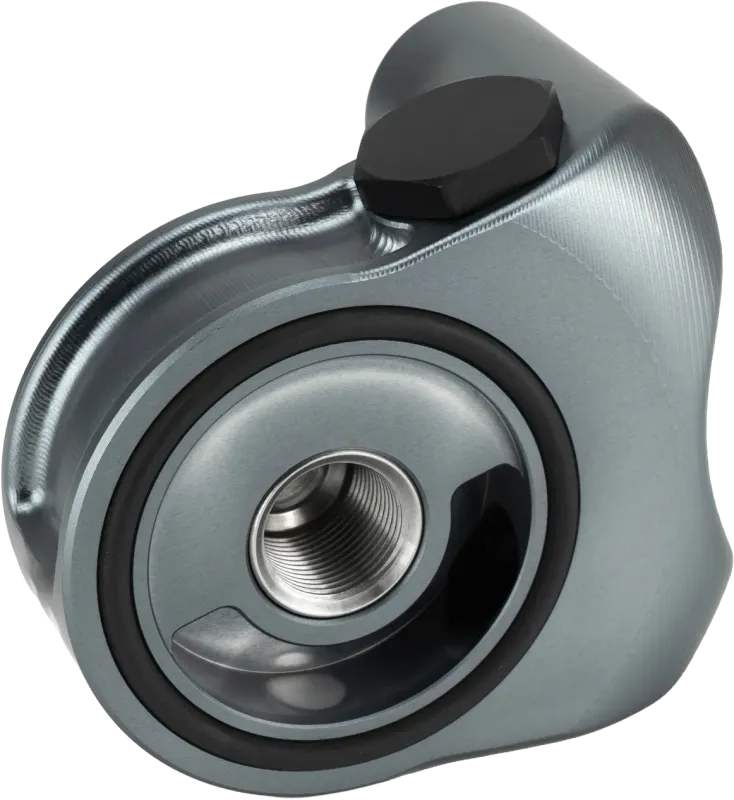

Oil Filter Seal: 1 x Nitrile O-Ring For sealing the sandwich plate against the oil filter
Hose Adapters: Optional AN Hose Adapters Supplied in the selected AN6, AN8, AN10 or AN12 size when added to your configuration

Material: 6082-T6 Aluminium Lightweight, high-strength alloy
Finish: Grey Anodised Protects against wear and corrosion
Seal: Nitrile O-Ring Included Provides a secure seal for the oil filter
Manufactured In: United Kingdom Precision CNC machined

Thermostat Type: Built-In Oil Thermostat Designed to regulate oil temperature in external oil cooler systems
Operation: Thermostatic Begins opening at the selected activation temperature and progressively opens as oil temperature rises
Oil Circulation: Continuous Bypass Flow Maintains a minimum oil flow through the cooler circuit during warm-up, helping reduce thermal shock

Oil Port Threads: M22 x 1.50 Two female threaded ports
Oil Filter Centre Bolt Thread Options: M20 x 1.50 3/4"-16 UNF Select to match the engine's oil filter mounting thread

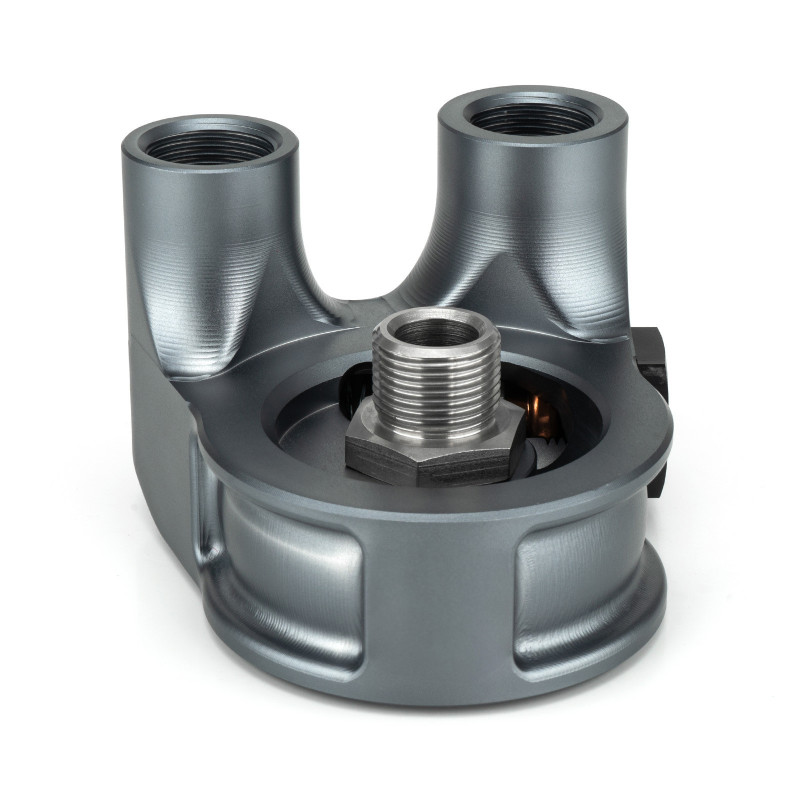

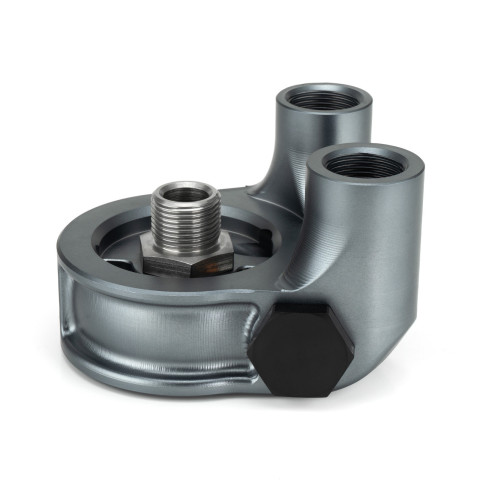

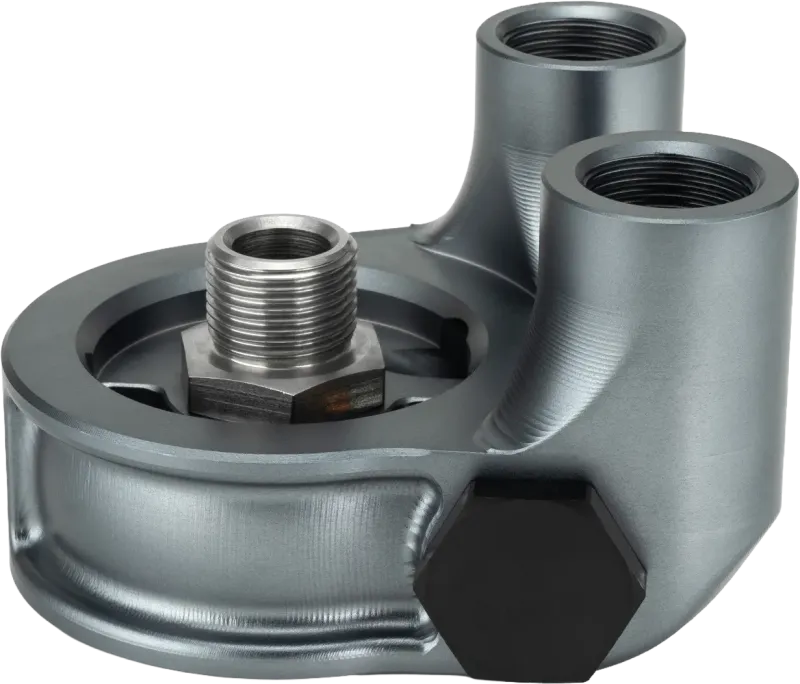

90° Right-Angle Oil cooler connections positioned at 90° to the sandwich plate

Right-angle outlets allow the oil cooler hoses to be routed parallel to the oil filter mounting surface, helping reduce installation space in restricted engine bays.

Length: 102.5mm 4.03" · Excluding adapters
Width: 89.3mm 3.52" · Widest point including thermostat cap
Thickness: 64mm 2.52" · Excluding O-ring and adapters
Weight: 163g 0.36lb · Excluding adapters
Compatible Oil Filter O-Ring Diameter: 52–75mm 2.04–2.95"

Engine Oil Coolers
Oil Cooler Systems
Motorsport Oil Systems

Engine Oil

Choose adapters with an M22 x 1.50 thread on one end and the appropriate AN hose size on the other. Replacement thermostats and O-rings are also available.
