Rubber Stainless Steel Braided Hose

5.0·1 review

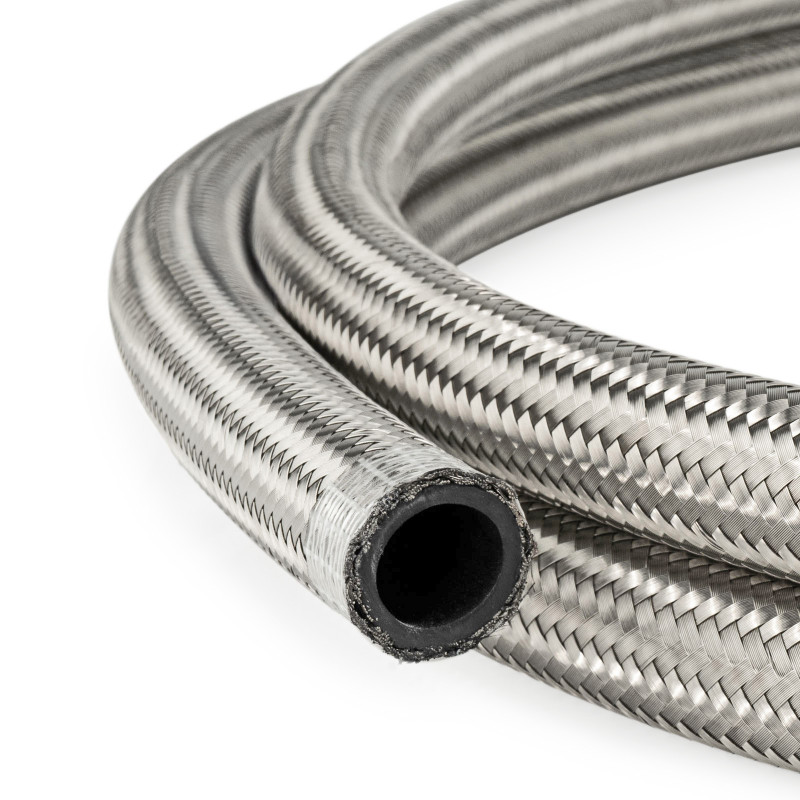

  • Rubber Stainless Steel Braided Hose - Picture 1 of 1
Hose Size
  • £6.62
In Stock
no questions asked
express options available
free repair or replacement

Product Overview

Technical Details

Specifications

Hose Dimensions

Dimensions, minimum bend radius and weight for AN6, AN8, AN10, AN12, AN16 and AN20 stainless steel braided CPE rubber hose
Specification AN6 AN8 AN10 AN12 AN16 AN20
Inner Diameter
8mm 5/16"
11mm 7/16"
14mm 9/16"
17mm 3/4"
22mm 7/8"
28mm 1-1/8"
Outer Diameter
14mm 9/16"
17mm 11/16"
21mm 7/8"
24mm 61/64"
31mm 1-7/32"
36mm 1-13/32"
Minimum Bend Radius
38mm 1.5"
40mm 1.6"
55mm 2.2"
75mm 3.0"
110mm 4.4"
128mm 5.0"
Weight
203g Per metre
247g Per metre
— Available soon
— Available soon
— Available soon
— Available soon

Hose Construction

Inner Material
CPE Rubber Flexible with excellent durability
Outer Material
Stainless Steel Braid Provides reinforcement and maintains hose strength
Bore Type
Smooth Bore

Pressure & Temperature

Pressure and temperature specifications for AN6, AN8, AN10, AN12, AN16 and AN20 stainless steel braided CPE rubber hose
Specification AN6 AN8 AN10 AN12 AN16 AN20
Maximum Operating Pressure
1,000 PSI 69 bar
1,000 PSI 69 bar
1,000 PSI 69 bar
1,000 PSI 69 bar
750 PSI 52 bar
500 PSI 34 bar
Burst Pressure
6,000 PSI 414 bar
5,000 PSI 345 bar
5,000 PSI 345 bar
3,750 PSI 259 bar
2,500 PSI 172 bar
2,000 PSI 138 bar
Operating Temperature
-40°C to 150°C -40°F to 302°F
-40°C to 150°C -40°F to 302°F
-40°C to 150°C -40°F to 302°F
-40°C to 150°C -40°F to 302°F
-40°C to 150°C -40°F to 302°F
-40°C to 150°C -40°F to 302°F

Supply

Continuous Length
Up to 20 metres Supplied in 0.5 metre increments

Common Applications

  • Fuel Lines
  • Oil Lines
  • Oil Cooler Lines
  • High-Flow Oil Lines
  • Dry Sump Lines
  • Catch Tank Lines
  • Transmission Cooler Lines
  • Hydraulic Lines
  • Coolant Lines
  • Radiator Lines
  • Water Pump Lines
  • High-Flow Fluid Transfer

Compatible Fluids & Gases

  • Hydraulic Oil
  • Engine Oil
  • Petrol (E5)
  • Petrol (E10)
  • Diesel
  • Coolant
  • Water
  • Air

Compatible Fittings

Not compatible with PTFE braided hose fittings or push-lock hose fittings. Designed exclusively for rubber braided hose fittings.

2-Year Warranty

Free repair or replacement for two years from the date of purchase. Learn more
