Rubber Stainless Steel Braided Hose Black Cotton

5.0·1 review

Hose Size

£6.62

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

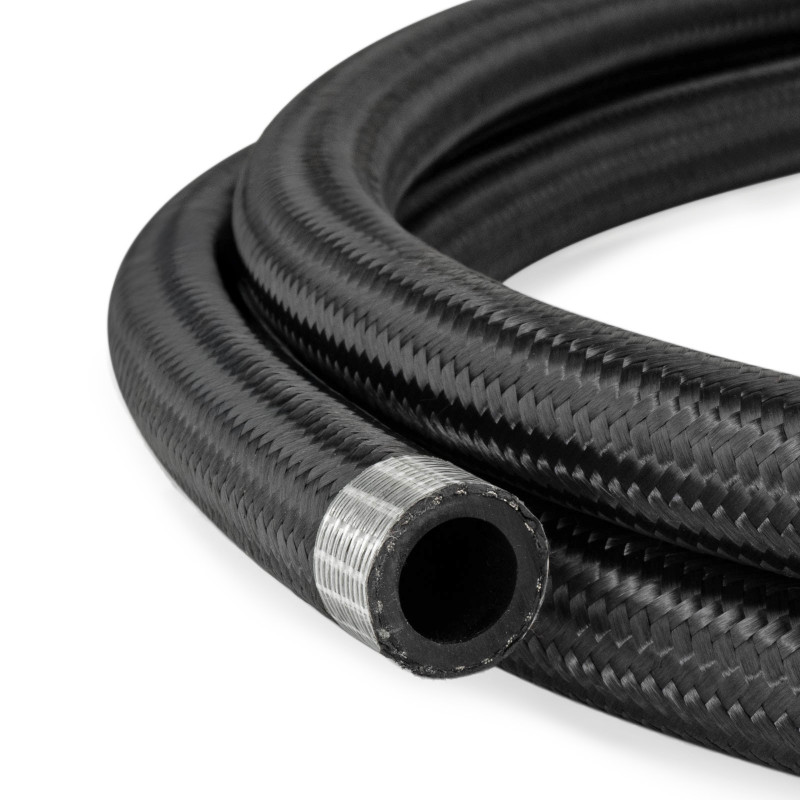

Black Cotton Covered Stainless Steel Braided CPE Rubber Hose

This braided hose combines a smooth-bore CPE rubber inner hose with stainless steel braid reinforcement and a protective black nylon-cotton outer braid. It is designed for compatible fuel, oil, coolant and hydraulic applications where a flexible covered hose construction is preferred.

CPE Rubber Inner Hose

The CPE rubber inner provides a flexible fluid path and is suitable for the compatible fluids and applications listed in the Specifications.

Stainless Steel Reinforcement with Black Outer Braid

The stainless steel braid reinforces the rubber hose, while the black nylon-cotton outer braid covers the metal reinforcement and helps protect surrounding surfaces from direct contact with the stainless braid.

Size-Specific Pressure & Dimensions

Internal diameter, outside diameter, minimum bend radius, pressure ratings and other technical values vary by hose size. Refer to the Specifications for the exact values for the selected hose.

Compatible Rubber Braided Hose Fittings

This hose is designed for use with compatible rubber braided hose fittings. Compatible hose finishers are also available for clamp-type connections where appropriate.

Not compatible with PTFE braided hose fittings or push-lock hose fittings. Use fittings specifically designed for rubber braided hose.

Fuel Compatibility

The specified compatible fuels include E5 and E10 petrol and diesel. For fuels such as E85 or methanol, select a suitable PTFE braided hose instead.

Supplied in 0.5 Metre Increments

Select the required hose size and length when ordering. Continuous lengths are available up to 20 metres.

For an exposed stainless steel outer braid, see our rubber stainless steel braided hose.

Dimensions, minimum bend radius and weight for CPE rubber hose with black nylon-cotton outer braid
Specification	AN6	AN8	AN10	AN12	AN16	AN20
Inner Diameter	8mm5/16"	11mm7/16"	14mm9/16"	17mm3/4"	22mm7/8"	28mm1-1/8"
Outer Diameter	14mm9/16"	17mm11/16"	21mm7/8"	24mm61/64"	31mm1-7/32"	36mm1-13/32"
Minimum Bend Radius	35mm1.4"	35mm1.4"	45mm1.8"	65mm2.6"	95mm3.7"	115mm4.5"
Weight	156gPer metre	203gPer metre	—Available soon	—Available soon	—Available soon	—Available soon

Inner Material: CPE Rubber Flexible with excellent durability
Reinforcement: Stainless Steel Braid Provides reinforcement and maintains hose strength
Outer Braid: Black Nylon Cotton Protects the stainless braid and surrounding surfaces
Bore Type: Smooth Bore

Pressure and temperature specifications for CPE rubber hose with black nylon-cotton outer braid
Specification	AN6	AN8	AN10	AN12	AN16	AN20
Maximum Operating Pressure	500 PSI34 bar	500 PSI34 bar	500 PSI34 bar	350 PSI24 bar	350 PSI24 bar	350 PSI24 bar
Burst Pressure	2,000 PSI138 bar	2,000 PSI138 bar	2,000 PSI138 bar	1,400 PSI97 bar	1,400 PSI97 bar	1,400 PSI97 bar
Operating Temperature	-40°C to 150°C-40°F to 302°F	-40°C to 150°C-40°F to 302°F	-40°C to 150°C-40°F to 302°F	-40°C to 150°C-40°F to 302°F	-40°C to 150°C-40°F to 302°F	-40°C to 150°C-40°F to 302°F

Continuous Length: Up to 20 Metres Supplied in 0.5 metre increments

Fuel Lines
Oil Lines
Oil Cooler Lines
Transmission Cooler Lines
Hydraulic Lines
Coolant Lines

Hydraulic Oil
Engine Oil
Petrol (E5)
Petrol (E10)
Diesel
Coolant
Water
Air

Not compatible with PTFE braided hose fittings or push-lock hose fittings. Designed for rubber braided hose fittings.

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What is black cotton braided CPE rubber hose used for?
This hose is suitable for compatible fuel, oil, coolant and hydraulic applications. It combines a smooth-bore CPE rubber inner with stainless steel reinforcement and a black nylon-cotton outer braid.
What is underneath the black outer braid?
The hose has a CPE rubber inner reinforced with stainless steel braid. The black nylon-cotton braid forms an additional outer covering over the stainless steel reinforcement.
What is the difference between this hose and the exposed stainless steel braided version?
This version has an additional black nylon-cotton outer braid covering the stainless steel reinforcement. The two products also have different published pressure ratings, minimum bend radii and weights, so refer to the Specifications for the exact values for each hose.
Which fittings should I use with this hose?
Use compatible CPE rubber braided hose fittings. PTFE braided hose fittings and push-lock hose fittings are not compatible.
Can I use this hose with E5 and E10 petrol?
Yes. E5 and E10 petrol are included in the specified compatible fluids, along with diesel, engine oil, hydraulic oil, coolant, water and air.
Is this hose suitable for E85 or methanol?
E85 and methanol are not included in the specified compatible fluids for this CPE rubber hose. For those fuels, select an appropriately specified PTFE braided hose instead.
What is the maximum operating pressure?
The maximum operating pressure depends on hose size. AN6, AN8 and AN10 are rated to 500 PSI (34 bar), while AN12, AN16 and AN20 are rated to 350 PSI (24 bar). Refer to the Specifications for the corresponding burst pressures.
What temperature range can the hose operate at?
The specified operating temperature range is -40°C to +150°C (-40°F to +302°F).
How do I choose the correct hose size?
Choose the hose size according to the flow requirements, connection sizes and routing requirements of the installation. The Specifications show the internal diameter, outside diameter, minimum bend radius and pressure rating for each available hose size.
How is the hose supplied?
The hose is available in 0.5 metre increments and can be supplied in continuous lengths up to 20 metres.
