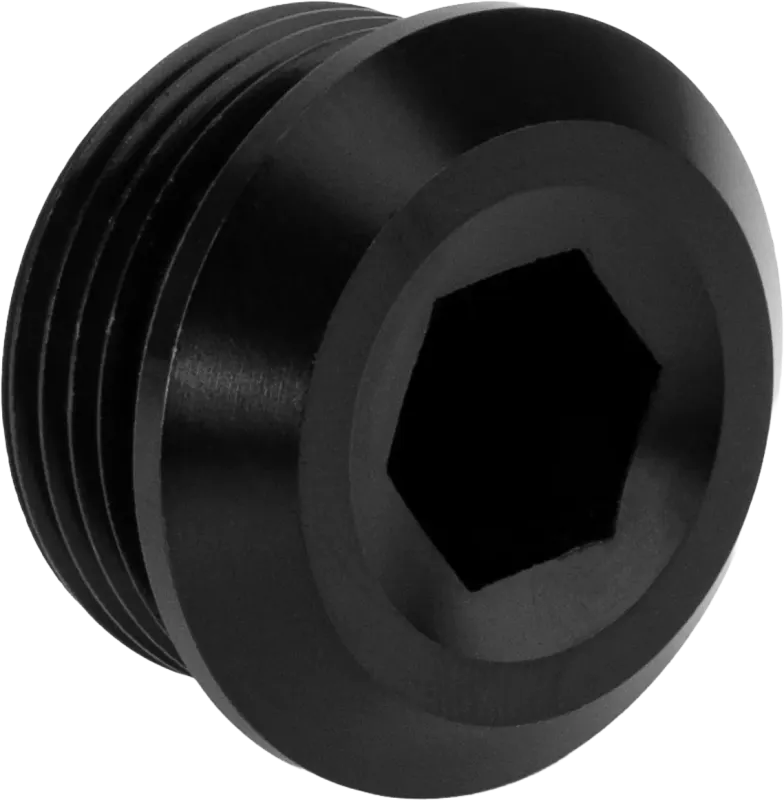

Metric Port Blanking Plugs – O-Ring Sealed Port Closures

Seal unused metric threaded ports with our aluminium Metric Port Blanking Plugs. Designed for compatible O-ring sealing ports, these compact plugs provide a neat way to close redundant connections in oil, fuel, coolant and other fluid-system components.

Why Choose Our Metric Port Blanking Plugs?

O-Ring Sealed

An O-ring provides the fluid seal against the mating port, while the metric thread retains the plug.
Low-Profile Internal Hex Design

An internal hex drive keeps the installed plug compact while allowing straightforward installation and removal with a suitable hex key.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium and finished with black anodising for protection against wear and corrosion.

Designed for O-Ring Sealed Metric Ports

A metric port blanking plug screws into an unused female metric port to close the connection. These plugs are designed for compatible ports where an O-ring provides the fluid seal against the mating surface.

Check the Port Before Ordering

Metric diameter alone does not determine compatibility. Check the thread diameter, thread pitch and sealing arrangement of the port before selecting a plug. These plugs are designed for compatible O-ring sealed metric ports.

Type: Metric Port Blanking Plug For closing compatible unused female metric ports
Drive Type: Internal Hex Low-profile design for installation with a suitable hex key
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

Connection 1: Metric Male Seals against the mating port using the supplied O-ring

Available metric port blanking plug sizes
Product Code	Connection 1
PLG-PRT-MET-AL-M10X100	M10 x 1.00 Male O-ring supplied
PLG-PRT-MET-AL-M12X15	M12 x 1.50 Male O-ring supplied
PLG-PRT-MET-AL-M14X15	M14 x 1.50 Male O-ring supplied
PLG-PRT-MET-AL-M16X15	M16 x 1.50 Male O-ring supplied
PLG-PRT-MET-AL-M18X15	M18 x 1.50 Male O-ring supplied
PLG-PRT-MET-AL-M22X15	M22 x 1.50 Male O-ring supplied

Oil Systems
Fuel Systems
Coolant Systems
Sensor Ports
Manifolds
Unused Metric Ports

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are metric port blanking plugs used for?
They are used to close unused or redundant female metric ports in compatible fluid-system components such as adapters, manifolds, filter housings, cooler components and sensor blocks.
How do metric port blanking plugs seal?
These plugs use an O-ring to create the fluid seal against a compatible mating port.
Do I need thread sealant or PTFE tape?
No. These metric port plugs are designed to seal using an O-ring rather than the threads, so thread sealant or PTFE tape should not be required when installed into the correct mating port.
How are the plugs installed?
The plugs feature an internal hex drive and are installed using a correctly sized hex key. Ensure the thread, sealing surfaces and O-ring are clean and undamaged before installation.
Are metric and ORB port plugs interchangeable?
No. Although both may use O-ring sealing, the thread standards and dimensions are different. Always match the plug to the exact thread and port specification.
