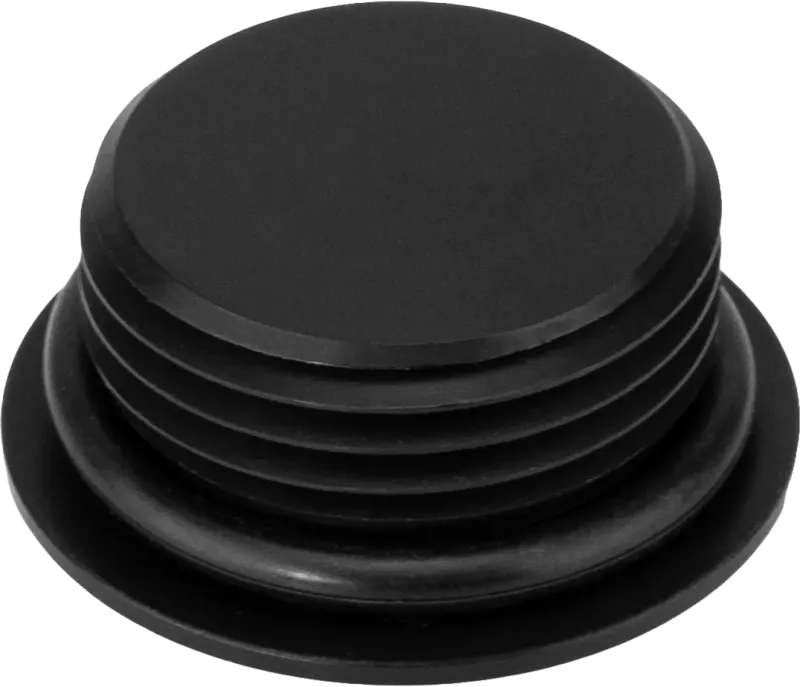

ORB Port Blanking Plugs – O-Ring Sealed Port Closures

Seal unused O-Ring Boss ports with our aluminium ORB Port Blanking Plugs. Featuring a straight UNF thread and supplied O-ring, these compact plugs provide a neat and removable way to close unused connections in oil, fuel, coolant and other compatible fluid-system components.

Why Choose Our ORB Port Blanking Plugs?

O-Ring Boss Sealing

The straight thread retains the plug while the supplied O-ring provides the fluid seal against the mating ORB port.
Low-Profile Internal Hex Design

An internal hex drive keeps the installed plug compact while allowing straightforward installation and removal with a suitable hex key.
Wide Range of ORB Sizes

Available from -3 ORB through to -16 ORB to suit a range of compatible automotive and motorsport fluid-system components.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium and finished with black anodising for protection against wear and corrosion.
Reusable Port Closure

Ideal for temporarily or permanently closing unused ORB ports while retaining the option to reopen the connection later.

What is an ORB Port Blanking Plug?

An ORB port blanking plug closes an unused female O-Ring Boss port. The straight UNF thread secures the plug into the port while an O-ring creates the fluid seal against the machined sealing surface.

ORB and AN/JIC Are Different Connections

ORB and AN/JIC fittings can use the same thread diameter and pitch, but they seal differently. ORB connections seal using an O-ring, while AN/JIC fittings seal on a 37° flare. These plugs are designed for compatible ORB ports and do not have an AN/JIC flare.

Plug Type: ORB Port Blanking Plug For closing compatible unused female O-Ring Boss ports
Drive Type: Internal Hex Low-profile design for installation with a suitable hex key
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

Connection: Male ORB For installation into a compatible female O-Ring Boss port
Thread Type: Straight UNF Thread provides retention rather than the fluid seal
Sealing Method: O-Ring Seals against the mating ORB port
O-Ring Included: Yes Supplied with the correctly sized sealing O-ring
Reusable: Yes Reuse only if the plug, threads, sealing surfaces and O-ring are free from damage

Available ORB port blanking plug sizes
Product Code	ORB Size	Thread
PLG-PRT-ORB-AL-ORB3	-3 ORB	3/8"-24 UNF
PLG-PRT-ORB-AL-ORB4	-4 ORB	7/16"-20 UNF
PLG-PRT-ORB-AL-ORB6	-6 ORB	9/16"-18 UNF
PLG-PRT-ORB-AL-ORB8	-8 ORB	3/4"-16 UNF
PLG-PRT-ORB-AL-ORB10	-10 ORB	7/8"-14 UNF
PLG-PRT-ORB-AL-ORB12	-12 ORB	1 1/16"-12 UNF
PLG-PRT-ORB-AL-ORB16	-16 ORB	1 5/16"-12 UNF

ORB and AN/JIC connections can share the same thread dimensions but use different sealing methods. These plugs are designed for O-ring sealed ORB ports and do not have a 37° AN/JIC flare.

Oil Systems
Fuel Systems
Coolant Systems
Manifolds
Fluid Blocks
Unused ORB Ports

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are ORB port blanking plugs used for?
They are used to close unused or redundant female O-Ring Boss ports in compatible fluid-system components such as manifolds, filter housings, fuel-system components, cooler components and adapters.
What ORB sizes are available?
The range includes -3 ORB, -4 ORB, -6 ORB, -8 ORB, -10 ORB, -12 ORB and -16 ORB.
How do ORB port blanking plugs seal?
ORB connections use a straight thread for retention and an O-ring to create the fluid seal against the mating port.
Is the O-ring included?
Yes. Each ORB port blanking plug is supplied with the correctly sized O-ring required for sealing against a compatible ORB port.
Do I need thread sealant or PTFE tape?
No. ORB connections seal using an O-ring rather than the threads, so thread sealant or PTFE tape should not be required when installed into the correct mating port.
Are ORB and AN/JIC connections interchangeable?
No. Some ORB and AN/JIC sizes use the same thread diameter and pitch, but their sealing arrangements are different. ORB seals with an O-ring, while AN/JIC seals on a 37° flare.
How are the plugs installed?
The plugs feature an internal hex drive and are installed using a correctly sized hex key. Ensure the port, O-ring and sealing surfaces are clean and undamaged before installation.
Are ORB port blanking plugs reusable?
Yes, provided the plug, threads and sealing surfaces remain free from damage. Inspect the O-ring before reuse and replace it if it is damaged or deteriorated.
