AN Male to AN Male 45 Degree Elbow Bulkhead Adapters - Stainless Steel

Size

Addoptional

Stainless Steel Bulkhead Nut +£1.09

£11.01

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

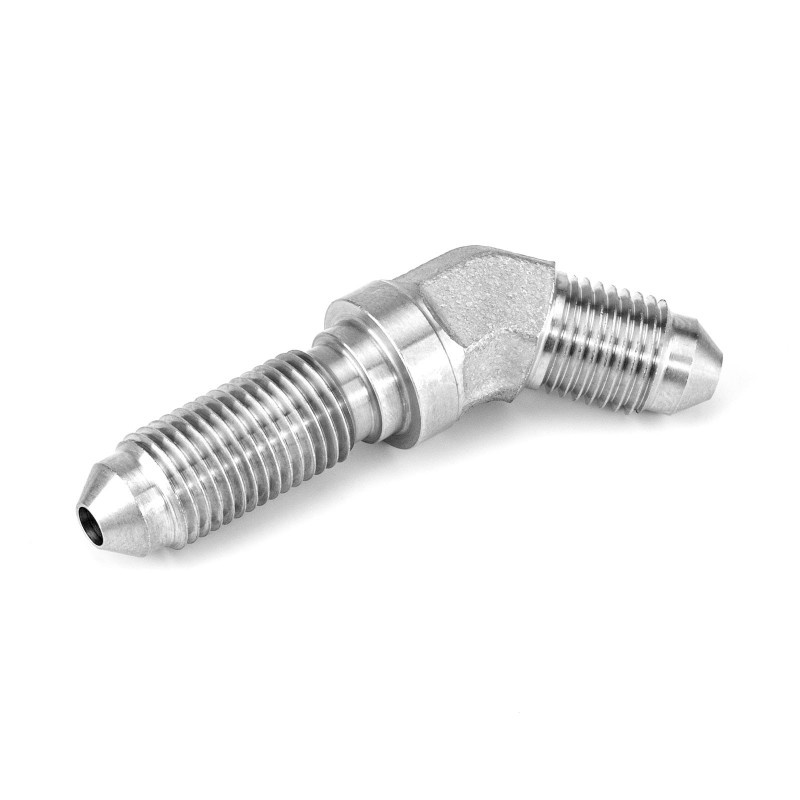

45° AN Male Bulkhead Adapter for Angled Through-Panel Connections

This stainless steel bulkhead adapter provides a fixed AN connection through a panel or mounting bracket while changing the connection direction by 45°. It is useful where a straight bulkhead connection would make hose routing difficult.

Male AN Connections

The adapter has a male AN connection at each end, with one side providing the extended bulkhead connection. Both use JIC 37° male cone flare sealing with compatible female AN fittings.

45° Bulkhead Design

The extended bulkhead connection passes through a suitable panel or mounting bracket. A compatible stainless steel bulkhead nut can be used to secure the adapter and is available separately.

Stainless Steel Construction

The adapter is manufactured from stainless steel with a natural stainless steel finish.

Adapter Type: 45° AN Male to AN Male Bulkhead Adapter For routing an AN connection through a bulkhead or panel and securing it with a bulkhead nut
Angle: 45° Angled connection for improved hose routing
Material: Stainless Steel Excellent strength and durability
Finish: Natural Stainless Steel Corrosion-resistant

Connection 1: AN Male JIC 37° · Male cone flare
Connection 2: AN Bulkhead Male JIC 37° · Male cone flare

Available stainless steel AN male to AN male 45 degree elbow bulkhead adapter sizes
Product Code	Connection 1	Connection 2
ADP-MM-BUL-45-SS-AN3-AN3	3/8"-24 UNF AN3 · Male	3/8"-24 UNF AN3 · Bulkhead male

Brake Systems
Clutch Systems
Hydraulic Systems
Bulkhead Connections
Motorsport Applications

Brake Fluid
Clutch Fluid
Hydraulic Fluid

Stainless Steel Bulkhead Nuts

A compatible bulkhead nut is required when the adapter needs to be secured through a panel or mounting bracket.

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What is this 45° bulkhead adapter used for?
It provides a fixed AN connection through a panel or mounting bracket while changing the connection direction by 45°, which can make hose routing easier where space is limited.
What connections does the adapter have?
It has a male AN connection on one side and an extended male AN bulkhead connection on the other.
How do the AN connections seal?
Both AN connections use JIC 37° male cone flares. The fluid seal is formed between the mating flare surfaces rather than the threads.
Is a bulkhead nut supplied?
No. A compatible stainless steel bulkhead nut is available separately for securing the adapter through a suitable panel or mounting bracket.
What material is the adapter?
The adapter is manufactured from stainless steel.
