AN Male to AN Male 90 Degree Elbow Bulkhead Adapters - Stainless Steel

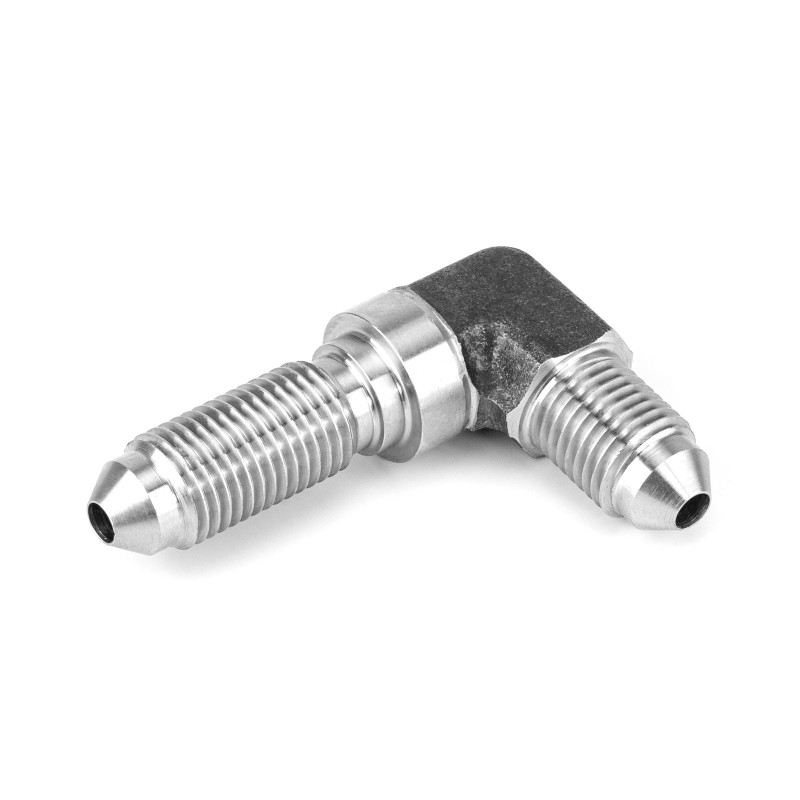

  • AN Male to AN Male 90 Degree Elbow Bulkhead Adapters - Stainless Steel - Picture 1 of 1
Size
Addoptional
  • £11.01
In Stock
no questions asked
express options available
free repair or replacement

Product Overview

Technical Details

Specifications

Design & Construction

Adapter Type
90° AN Male to AN Male Bulkhead Adapter For routing an AN connection through a bulkhead or panel and securing it with a bulkhead nut
Angle
90° Right-angle connection for compact hose routing
Material
Stainless Steel Durable, corrosion-resistant construction
Finish
Natural Stainless Steel Corrosion-resistant

Connections

Connection 1
AN Male JIC 37° · Male cone flare
Connection 2
AN Bulkhead Male JIC 37° · Male cone flare

Available Sizes

Available stainless steel AN male to AN male 90 degree elbow bulkhead adapter sizes
Product Code Connection 1 Connection 2
ADP-MM-BUL-90-SS-AN3-AN3
3/8"-24 UNF AN3 · Male
3/8"-24 UNF AN3 · Bulkhead male

Common Applications

  • Brake Systems
  • Clutch Systems
  • Hydraulic Systems
  • Bulkhead Connections
  • Motorsport Applications

Compatible Fluids

  • Brake Fluid
  • Clutch Fluid
  • Hydraulic Fluid

Compatible Accessories

A compatible bulkhead nut can be added as an option or purchased separately when the adapter needs to be secured through a panel or mounting bracket.

2-Year Warranty

Free repair or replacement for two years from the date of purchase. Learn more
Frequently Asked Questions
  • What is this 90° bulkhead adapter used for?

    It provides a fixed AN connection through a panel or mounting bracket while changing the connection direction by 90°, helping with hose routing where space is limited.

  • What connections does the adapter have?

    It has a male AN connection on one side and an extended male AN bulkhead connection on the other.

  • How do the AN connections seal?

    Both AN connections use JIC 37° male cone flares. The fluid seal is formed between the mating flare surfaces rather than the threads.

  • Is a bulkhead nut included?

    No. A compatible stainless steel bulkhead nut can be added as an option or purchased separately for securing the adapter through a suitable panel or mounting bracket.

  • What material is the adapter?

    The adapter is manufactured from stainless steel.
