Metric Port Plugs with Metric Sensor Port - Stainless Steel

Size

£6.62

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

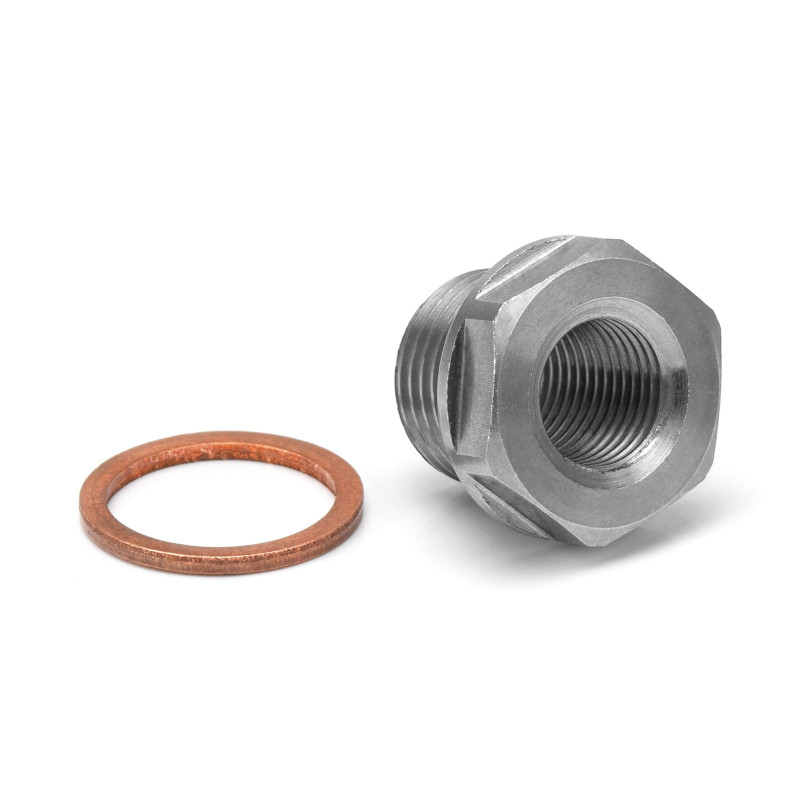

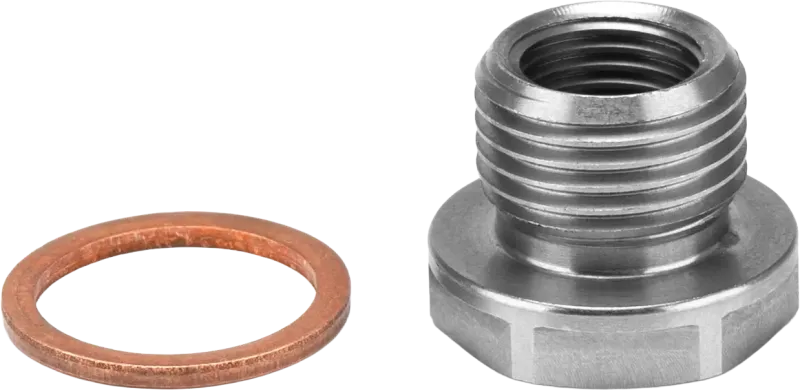

Stainless Steel Metric Port Plugs with M10 Sensor Port

These stainless steel port plugs install into a compatible female metric port while providing an M10 x 1.00 female connection through the centre for a compatible pressure sensor, temperature sensor, thermal switch or other compatible component.

Copper Washer Sealed Metric Connection

The male metric connection seals against the mating face using the supplied copper crush washer. The correct size copper crush washer is supplied for the selected port plug.

M10 x 1.00 Female Sensor Port

The M10 x 1.00 female connection through the centre provides a dedicated sensor mounting point. Check that the component uses the correct M10 x 1.00 male thread and follow its specified sealing requirements.

Integrated Sensor Connection

The integrated design allows an existing metric fluid port to accommodate a smaller threaded sensor without requiring a separate inline adapter.

303/304 Stainless Steel

The port plugs are precision CNC machined in the United Kingdom from 303/304 stainless steel with a natural stainless steel finish.

Product Type: Metric Port Plug with Metric Sensor Port Provides a dedicated sensor connection from an existing metric fluid port
Material: 303/304 Stainless Steel Excellent strength and durability
Finish: Natural Stainless Steel Corrosion-resistant
Manufactured In: United Kingdom Precision CNC machined

Connection 1: Metric Male Seals against the mating port using the supplied copper crush washer
Sensor Port: Metric Female Dedicated connection for a compatible sensor or thermal switch

Available stainless steel metric port plugs with metric sensor port
Product Code	Connection 1	Sensor Port
PLG-PRT-MET-SEN-MET-SS-M14X15-M10X100	M14 x 1.50 Male Copper crush washer supplied	M10 x 1.00 Female
PLG-PRT-MET-SEN-MET-SS-M16X15-M10X100	M16 x 1.50 Male Copper crush washer supplied	M10 x 1.00 Female

Sensor Integration
Pressure Monitoring
Temperature Monitoring
Oil Systems
Fuel Systems
Coolant Systems

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What is a metric port plug with a metric sensor port used for?
It installs into a compatible female metric port while providing an M10 x 1.00 female connection through the centre for a compatible pressure sensor, temperature sensor, thermal switch or other compatible component.
How does the main metric connection seal?
The main metric connection seals against the mating face using the supplied copper crush washer.
Does this product use an O-ring?
No. The main metric connection uses a copper crush washer rather than an O-ring.
Is the copper crush washer supplied?
Yes. The correct size copper crush washer is supplied for the selected port plug.
Does the main metric thread require PTFE tape or thread sealant?
No. The main connection seals using the supplied copper crush washer against the mating face rather than on the thread.
What size is the sensor port?
Both versions have an M10 x 1.00 female sensor port. The component being installed must have a compatible M10 x 1.00 male thread.
How does the sensor port seal?
The sealing method depends on the sensor or other component being installed. Follow the component manufacturer's sealing requirements.
What material are the port plugs made from?
They are precision CNC machined from 303/304 stainless steel.
Where are the port plugs manufactured?
They are precision CNC machined in the United Kingdom.
