Stainless Steel Single Banjo Bolts

5.0·1 review

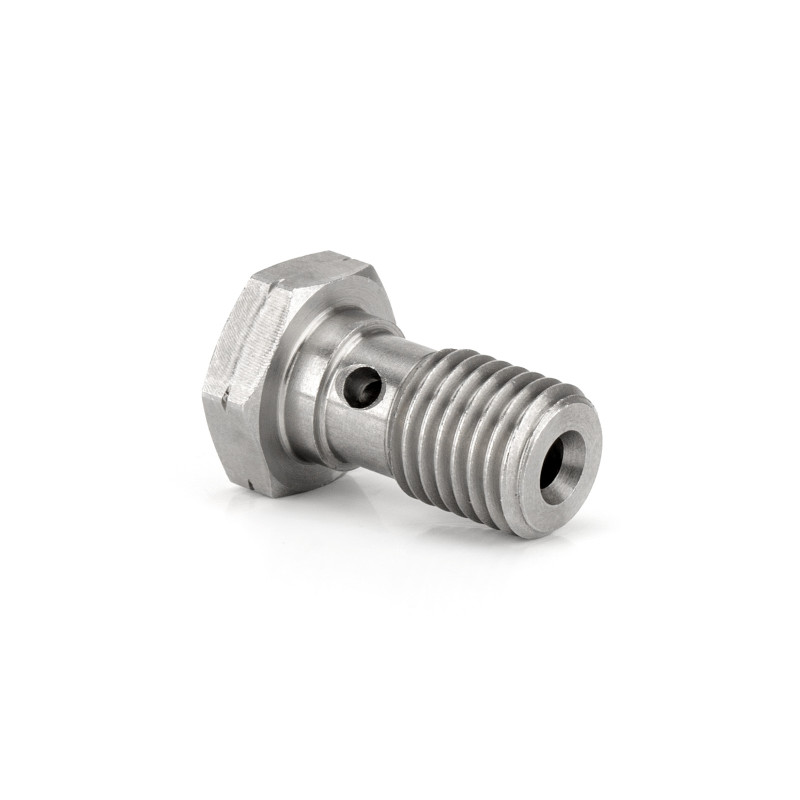

  • Stainless Steel Single Banjo Bolts - Picture 1 of 3

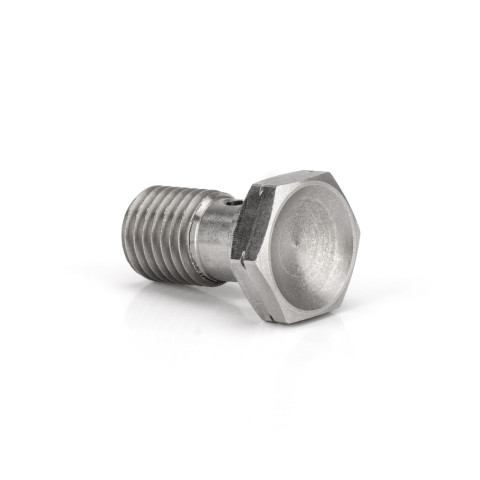

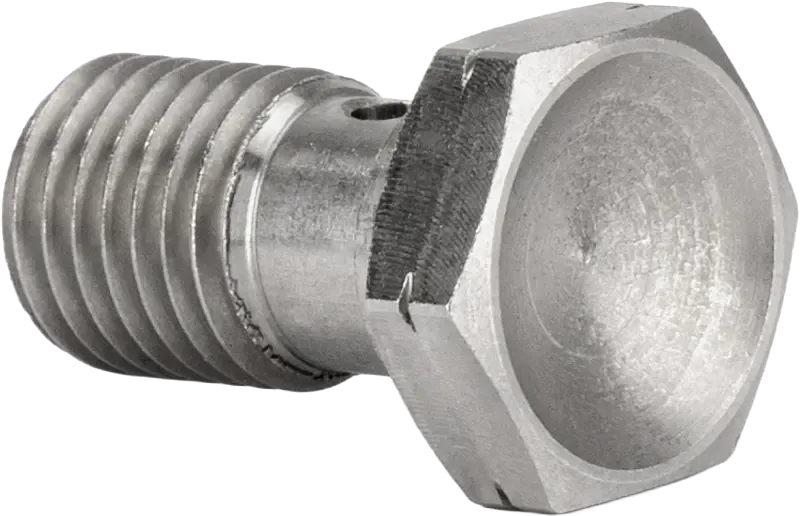

  • Stainless Steel Single Banjo Bolts - Picture 2 of 3

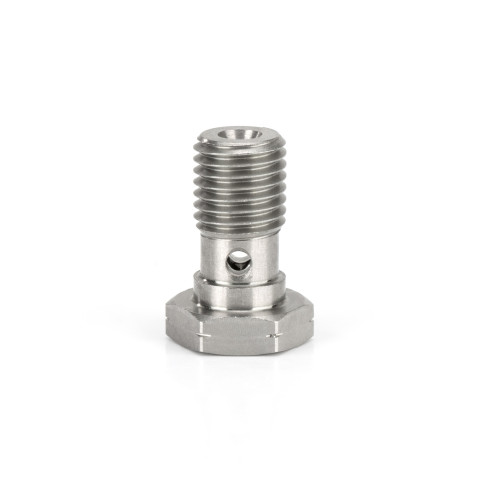

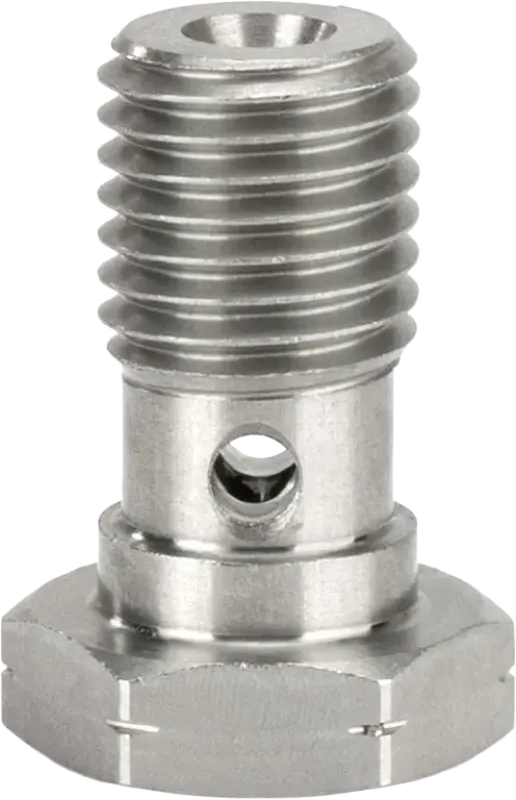

  • Stainless Steel Single Banjo Bolts - Picture 3 of 3
Size
  • £3.30
In Stock
no questions asked
express options available
Read more

Customer reviews

5.0
Based on 1 verified review
  • 5
    1
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0
Frequently Asked Questions
  • What are stainless steel single banjo bolts used for?

    Stainless steel single banjo bolts are specialised fasteners designed to connect banjo fittings to hydraulic components, allowing fluid to flow through their hollow bodies. They are commonly used in brake and clutch systems for cars, motorcycles, and industrial applications, ensuring a secure, leak-free connection even under high pressure.

  • What sizes are available for these banjo bolts?

    We offer a wide range of thread sizes to suit various applications:

    • Metric: M6 x 1.00, M8 x 1.00 / 1.25, M10 x 1.00 / 1.25 / 1.5, M12 x 1.00 / 1.25 / 1.5
    • AN & UNF: AN3 (3/8"-24 UNF), AN4 (7/16"-20 UNF), 7/16"-24
    • BSP: 1/8"-28 BSP, 1/4"-19 BSP

    This variety ensures compatibility with most standard hydraulic setups.

  • Are these banjo bolts compatible with custom braided hoses?

    Yes, our stainless steel single banjo bolts are fully compatible with our range of custom braided hoses, including AN-threaded systems. They ensure a secure fit and reliable performance in various fluid transfer applications.

  • What materials are these banjo bolts made from?

    These banjo bolts are CNC-machined from premium-grade stainless steel, offering excellent corrosion resistance and long-lasting performance in both road and race environments.

  • Do these banjo bolts require additional components for installation?

    For a secure installation, it is recommended to use two copper crush washers (not included) with each banjo bolt—one on each side of the banjo fitting. These washers ensure a tight, leak-free connection between the banjo bolt, banjo fitting, and component.

Specifications
Stainless Steel Single Banjo Bolts Technical Specifications
Product Code Thread Length - Thread Length - Underneath Hex to End of Thread Hex Spanner Size Material
BLT-SGL-SS-M6X100 M6 x 1.00 10mm 15mm 9mm Stainless Steel
BLT-SGL-SS-M8X100 M8 x 1.00 10mm 18mm 13mm
BLT-SGL-SS-M8X125 M8 x 1.25 11mm 18mm 13mm
BLT-SGL-SS-M10X100 M10 x 1.00 10mm 18mm 14mm
BLT-SGL-SS-M10X125 M10 x 1.25 10mm 18mm 14mm
BLT-SGL-SS-M10X15 M10 x 1.5 12mm 20mm 14mm
BLT-SGL-SS-M12X100 M12 x 1.00 9mm 18mm 16mm
BLT-SGL-SS-M12X125 M12 x 1.25 9mm 18mm 16mm
BLT-SGL-SS-M12X15 M12 x 1.5 14mm 23mm 16mm
BLT-SGL-SS-AN3 AN3 (3/8"-24 UNF) 10mm 18mm 14mm
BLT-SGL-SS-AN4 AN4 (7/16"-20 UNF) 10mm 18mm 14mm
BLT-SGL-SS-AN4-EXT AN4 (7/16"-20 UNF) 15mm 23mm 14mm
BLT-SGL-SS-716X24 7/16"-24 11mm 18mm 14mm
BLT-SGL-SS-18BSP 1/8"-28 BSP 10mm 18mm 14mm
BLT-SGL-SS-14BSP 1/4"-19 BSP 14mm 27mm 18mm
