60 Degree Swivel PTFE Braided Hose End Fitting
- £14.32
In Stock
-
Order by 3pm for same-day dispatch. Worldwide delivery available.
-
100-day hassle-free returns – exchange or refund with no questions asked.
Did you remember your hose accessories?
We aim to dispatch orders the same day if ordered before 3pm (Monday to Friday, excluding bank holidays). Orders placed over the weekend will be sent on the Monday, unless it's a bank holiday.
For detailed delivery information, please visit our delivery page.
We stand by the quality of our products, which is why we offer a generous 100-day return policy, even for custom-made items. This extended returns period gives you plenty of time to check the quality and performance of our products.
For full details, please visit our returns page.

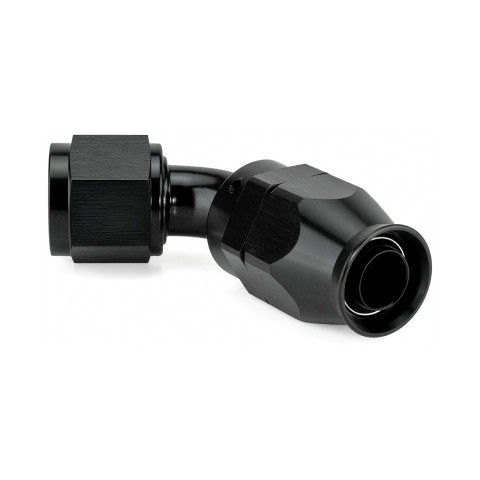

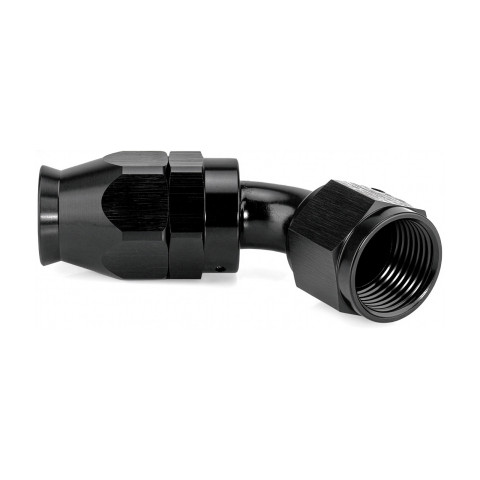

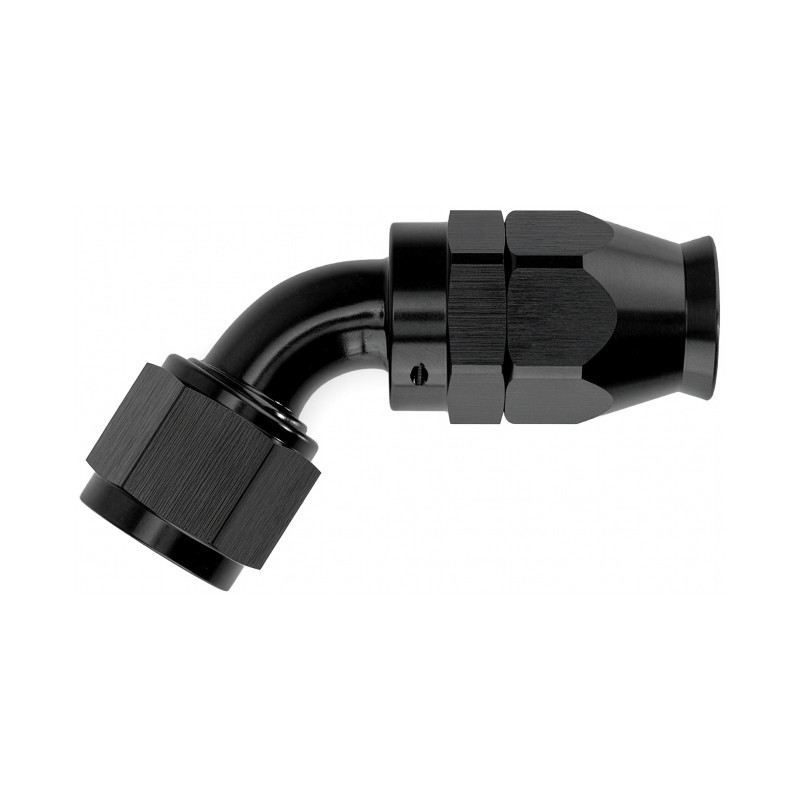

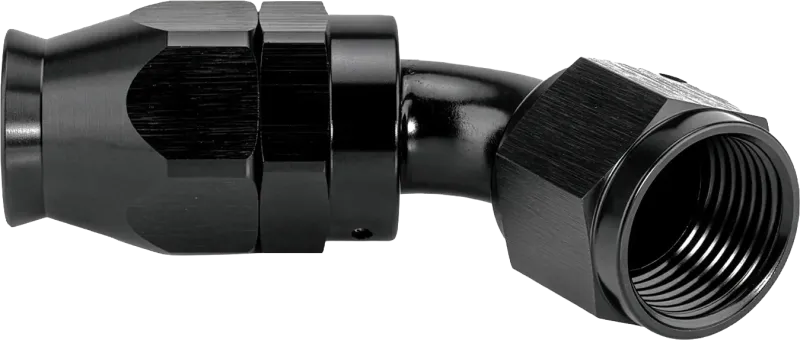

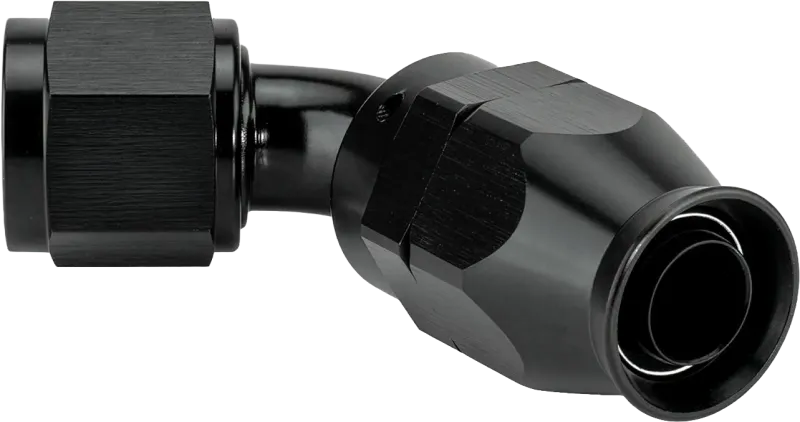

60 Degree PTFE Hose Fitting - AN Hose End for Fuel, Oil & Coolant Systems
This high-performance 60 degree PTFE braided hose end fitting is precision-engineered for use with our PTFE braided hose. Designed for motorsport and custom builds, it delivers a secure, leak-free connection in fuel, oil, and coolant systems under extreme pressure and temperature.
Stress-Free.
Made from lightweight, hard-anodised aluminium, this 60 degree AN PTFE fitting features a full-flow design and 360-degree swivel for easy orientation. The internal olive compression sleeve provides a reliable, vapour-tight seal without clamps or sealant.
Key Features:
- Compatible with PTFE braided hose in AN6, AN8, and AN10 sizes
- 360° swivel head - quick, tool-free alignment without hose twist
- Olive compression seal - leak-proof and vapour-tight under pressure
- Hard-anodised aluminium - strong, lightweight, and corrosion-resistant
- Available in:
Need matching adapters? Explore our complete range of braided hose accessories to complete your braided hose.
| AN6 | AN8 | AN10 | |
|---|---|---|---|
| Product Code | FIT-P-60-AN6 | FIT-P-60-AN8 | FIT-P-60-AN10 |
| Female Thread Size | 9/16"-18 UNF | 3/4"-16 UNF | 7/8"-14 UNF |
| Threads Per Inch (TPI) | 18 | 16 | 14 |
| Female Thread Diameter (approx.) | 13mm | 17mm | 20mm |
| Angle | 60° | ||
| Hose Compatibility | PTFE Braided Hose | ||
| Assembly Method | Olive Compression | ||
| Flare Type | JIC | ||
| Flare Angle | 37° | ||
| Swivel Type | 360° Double Swivel | ||
| Flow Type | Full Flow | ||
| Material | Aluminium Alloy (6061-T6) | ||
| Finish | Anodised Black | ||
