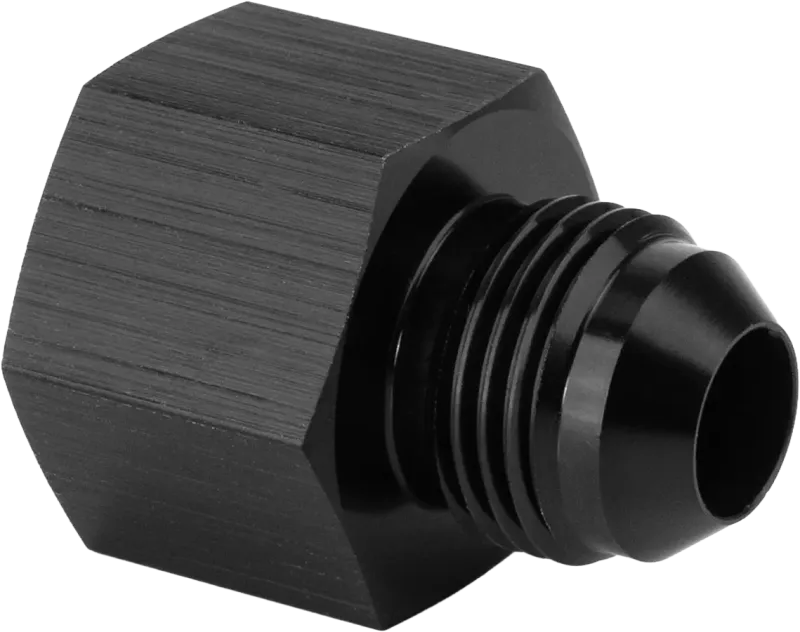

AN Male to AN Female Adapters

AN Male to AN Female Adapters – Swivel Reducers & Expanders

Connect different AN sizes with our aluminium AN Male to AN Female Adapters. Featuring a male JIC 37° flare connection at one end and a female swivel AN/JIC connection at the other, these compact adapters provide a simple way to reduce or increase connection size within an AN fluid system.

Why Choose Our AN Male to AN Female Adapters?

• AN Size Conversion

  Available in selected reducing and expanding combinations, allowing different AN sizes to be connected directly without stacking multiple adapters.

• Female Swivel Connection

  The female AN end swivels independently, helping with alignment and allowing the connection to be tightened without rotating the adjoining component.

• JIC 37° Flare Sealing

  Both AN connections use JIC 37° flare sealing, with the mating flare surfaces providing the fluid seal rather than the threads themselves.

• 6061-T6 Aluminium Construction

  Precision-machined from lightweight 6061-T6 aluminium and finished with a black anodised coating for protection against wear and corrosion.

• Compact Inline Adaptation

  Provides a direct transition between different AN sizes while keeping the installation compact and straightforward.

What is an AN Male to Female Adapter?

An AN male to female adapter connects a female AN/JIC fitting at one end to a male AN/JIC fitting at the other. Different-size versions can be used as reducers or expanders, while the swivel female connection allows easier alignment during installation.

How Do the Connections Seal?

Both ends use JIC 37° flare sealing. The male end seals on its 37° cone flare, while the female end contains a corresponding 37° flare seat. Thread sealant or PTFE tape is not required on correctly matched AN/JIC flare connections.
