AN Male to Metric Female Adapters

AN Male to Metric Female Adapters – Swivel AN to Metric Connections

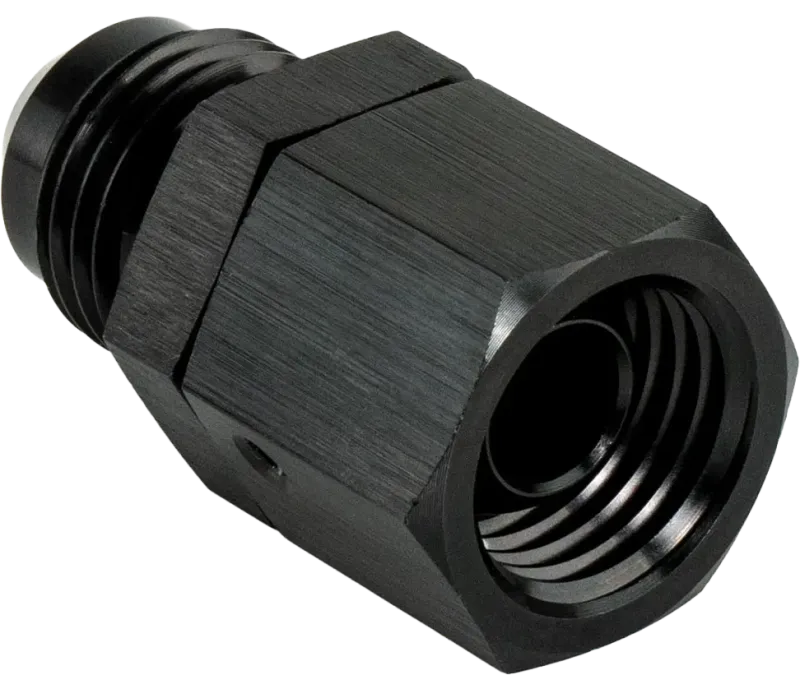

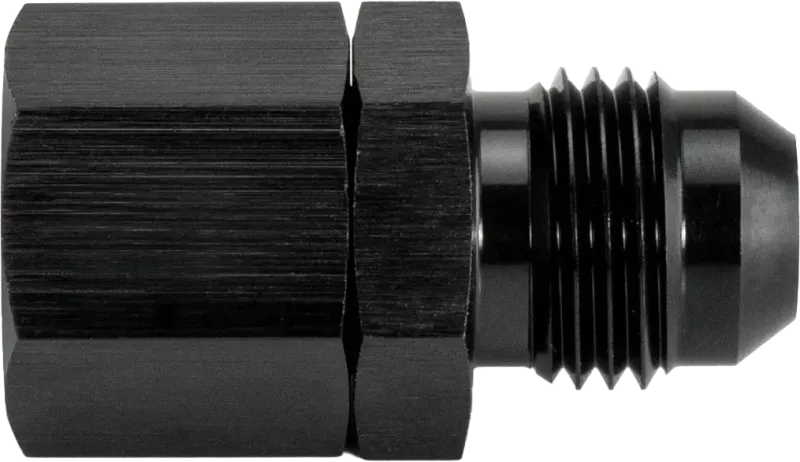

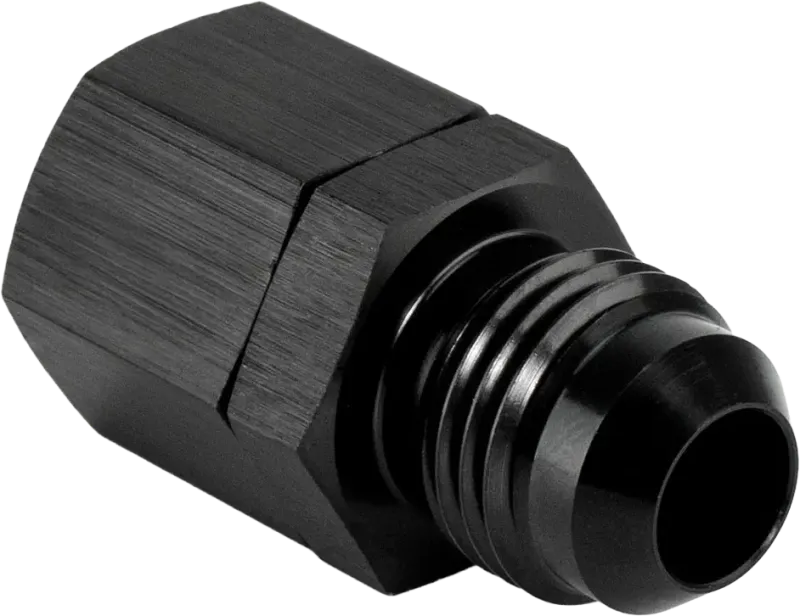

Adapt an AN/JIC connection to a compatible metric male fitting with our aluminium AN Male to Metric Female Adapters. Featuring an AN6 male JIC 37° flare at one end and a female metric swivel connection at the other, these compact adapters provide a convenient transition between AN and metric fluid-system components.

Why Choose Our AN Male to Metric Female Adapters?

• AN to Metric Conversion

  Provides a direct transition from a female AN/JIC fitting to a compatible male metric component without requiring multiple adapters.

• Female Swivel Connection

  The female metric end features a swivel design, helping with alignment and allowing the connection to be tightened without rotating the adjoining component.

• JIC 37° AN Connection

  The AN6 male connection features a JIC 37° cone flare and seals against the corresponding female AN/JIC flare.

• 6061-T6 Aluminium Construction

  Precision-machined from lightweight 6061-T6 aluminium and finished with a black anodised coating for protection against wear and corrosion.

• M14 & M16 Female Thread Options

  Available with M14 x 1.5 and M16 x 1.5 female metric connections for compatible male metric components.

What is an AN Male to Metric Female Adapter?

An AN male to metric female adapter provides a transition between an AN/JIC fluid system and a component using a compatible male metric connection. The AN side connects to a female JIC 37° fitting, while the swivel metric end allows the mating component to be aligned and tightened independently.

Check the Metric Connection Before Ordering

Metric thread diameter and pitch do not by themselves determine the sealing arrangement. Confirm the thread size and sealing interface of the mating male metric component before selecting an adapter.
