AN Male to NPT Female Adapters

  • AN Male to NPT Female Adapters - Picture 1 of 3

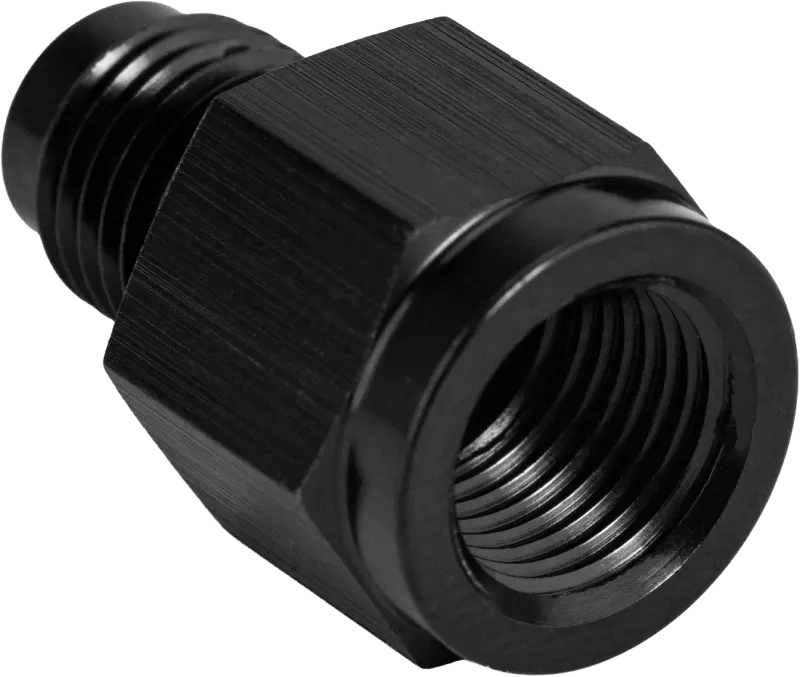

  • AN Male to NPT Female Adapters - Picture 2 of 3

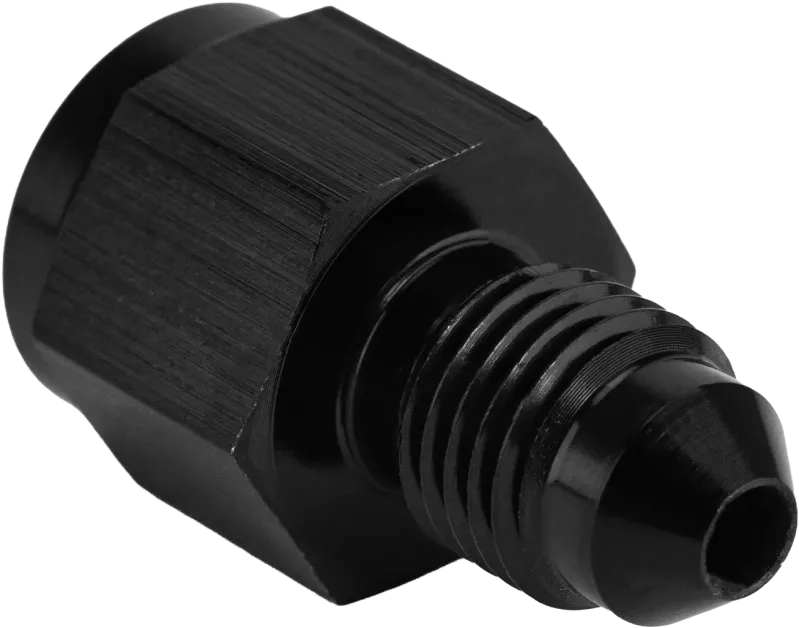

  • AN Male to NPT Female Adapters - Picture 3 of 3
Size
  • £5.98
In Stock
no questions asked
express options available
free repair or replacement

Product Overview

Technical Details

Specifications

Design & Construction

Type
AN Male to NPT Female Adapter For adapting from an AN connection to a compatible female NPT port
Material
6061-T6 Aluminium Lightweight, high-strength alloy
Finish
Black Anodised Protects against wear and corrosion

Connections

Connection 1
AN Male JIC 37° · Male cone flare
Connection 2
NPT Female Tapered thread · Use suitable PTFE tape or thread sealant

Available Sizes

Available AN male to NPT female adapter sizes
Product Code Connection 1 Connection 2
ADP-MF-NPT-AL-AN3-18NPT
AN3 Male 3/8"-24 UNF
1/8"-27 NPT Female Tapered thread
ADP-MF-NPT-AL-AN4-18NPT
AN4 Male 7/16"-20 UNF
1/8"-27 NPT Female Tapered thread

Check sensor probe length before installation. Long probes may extend into or obstruct the internal fluid passage.

Common Applications

  • Sensor Integration
  • Pressure Monitoring
  • Temperature Monitoring
  • Custom Fluid Systems

2-Year Warranty

Free repair or replacement for two years from the date of purchase. Learn more
Frequently Asked Questions
  • Can I use the NPT connection for a sensor or gauge?

    Yes. The female 1/8"-27 NPT connection can accept a compatible male NPT sensor, gauge, switch or fitting.

  • How does the AN connection seal?

    The male AN connection uses a JIC 37° cone flare and seals against the corresponding flare inside a compatible female AN fitting.

  • Does the NPT connection require thread sealant?

    Yes. Use suitable PTFE tape or thread sealant.
