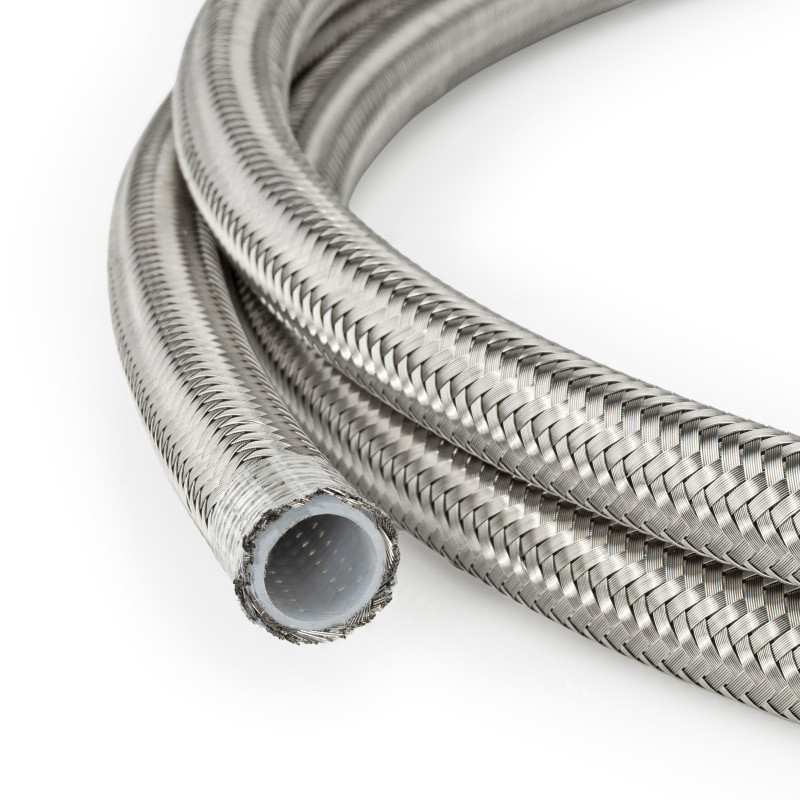

PTFE Stainless Steel Braided Hose

  • PTFE Stainless Steel Braided Hose - Picture 1 of 1
Hose Size
  • £7.16
In Stock
no questions asked
express options available
free repair or replacement

Product Overview

Technical Details

Specifications

Hose Dimensions

Dimensions, minimum bend radius and hose weight for AN6, AN8 and AN10 stainless steel braided PTFE hose
Specification AN6 AN8 AN10
Inner Diameter
8mm 5/16"
11mm 7/16"
13mm 1/2"
Outer Diameter
11mm 7/16"
14mm 9/16"
16mm 5/8"
Minimum Bend Radius
45mm 1.8"
60mm 2.4"
65mm 2.6"
Weight
139g Per metre of hose
181g Per metre of hose
— Available soon

Hose Construction

Inner Material
PTFE Excellent chemical and temperature resistance
Outer Material
Stainless Steel Braid Provides reinforcement and maintains hose strength
Bore Type
Smooth Bore
Conductive
No Non-conductive PTFE liner

Pressure & Temperature

Pressure and temperature specifications for AN6, AN8 and AN10 stainless steel braided PTFE hose
Specification AN6 AN8 AN10
Maximum Operating Pressure
3,000 PSI 207 bar
2,500 PSI 172 bar
2,000 PSI 138 bar
Burst Pressure
10,000 PSI 690 bar
8,000 PSI 552 bar
6,000 PSI 414 bar
Operating Temperature
-70°C to 250°C -94°F to 482°F
-70°C to 250°C -94°F to 482°F
-70°C to 250°C -94°F to 482°F

Supply

Continuous Length
Up to 20 Metres Supplied in 0.5 metre increments

Common Applications

  • Fuel Lines
  • Oil Lines
  • Oil Cooler Lines
  • Transmission Cooler Lines
  • Hydraulic Lines
  • Coolant Lines

Compatible Fluids & Gases

  • Hydraulic Oil
  • Engine Oil
  • Petrol (E5)
  • Petrol (E10)
  • E85
  • Diesel
  • Race Fuels
  • Ethanol
  • Methanol
  • Coolant
  • Water
  • Air
  • Carbon Dioxide (CO₂)
  • Nitrous Oxide (N₂O)

Compatible Fittings

Not compatible with rubber braided hose fittings or push-lock hose fittings. Designed exclusively for PTFE braided hose fittings.

2-Year Warranty

Free repair or replacement for two years from the date of purchase. Learn more
