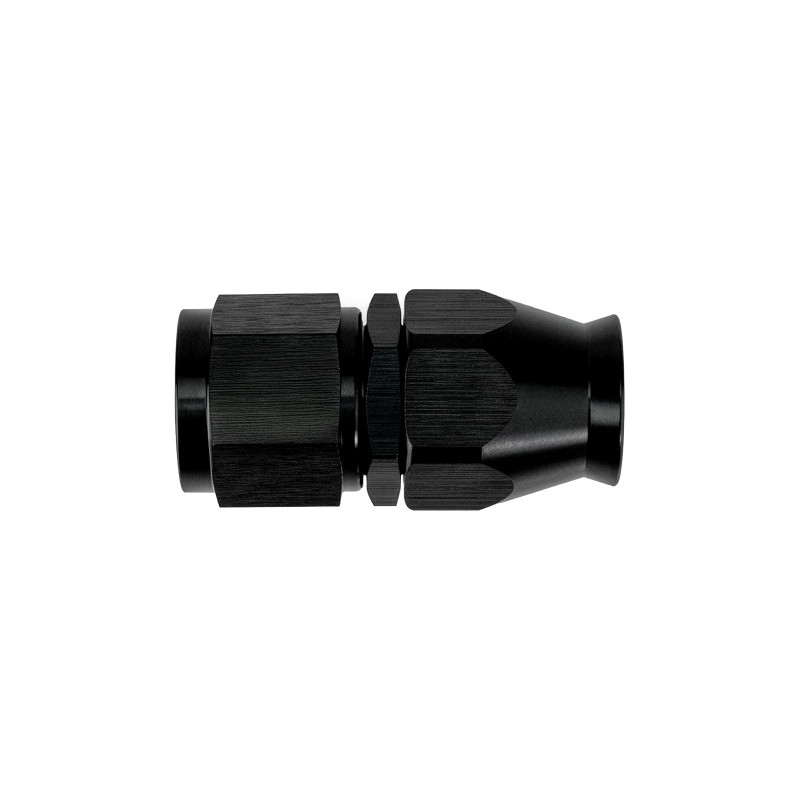

Straight PTFE Hose Fitting - AN Hose End for Fuel, Oil & Coolant Systems
This high-performance straight PTFE braided hose end fitting is precision-engineered for use with our PTFE braided hose. Designed for motorsport and custom builds, it delivers a secure, leak-free connection in fuel, oil, and coolant systems under extreme pressure and temperature.
Stress-Free.
Made from lightweight, hard-anodised aluminium, this straight AN PTFE fitting features a full-flow design and 360-degree swivel for easy orientation. The internal olive compression sleeve provides a reliable, vapour-tight seal without clamps or sealant.
Key Features:
- Compatible with PTFE braided hose in AN6, AN8, and AN10 sizes
- 360° swivel head - quick, tool-free alignment without hose twist
- Olive compression seal - leak-proof and vapour-tight under pressure
- Hard-anodised aluminium - strong, lightweight, and corrosion-resistant
- Available in:
Need matching adapters? Explore our complete range of braided hose accessories to complete your braided hose.
| AN6 | AN8 | AN10 | |
|---|---|---|---|
| Product Code | FIT-P-STR-AN6 | FIT-P-STR-AN8 | FIT-P-STR-AN10 |
| Female Thread Size | 9/16"-18 UNF | 3/4"-16 UNF | 7/8"-14 UNF |
| Threads Per Inch (TPI) | 18 | 16 | 14 |
| Female Thread Diameter (approx.) | 13mm | 17mm | 20mm |
| Angle | Straight | ||
| Hose Compatibility | PTFE Braided Hose | ||
| Assembly Method | Olive Compression | ||
| Flare Type | JIC | ||
| Flare Angle | 37° | ||
| Swivel Type | 360° Double Swivel | ||
| Flow Type | Full Flow | ||
| Material | Aluminium Alloy (6061-T6) | ||
| Finish | Anodised Black | ||
