Join or Adapt Female AN Connections

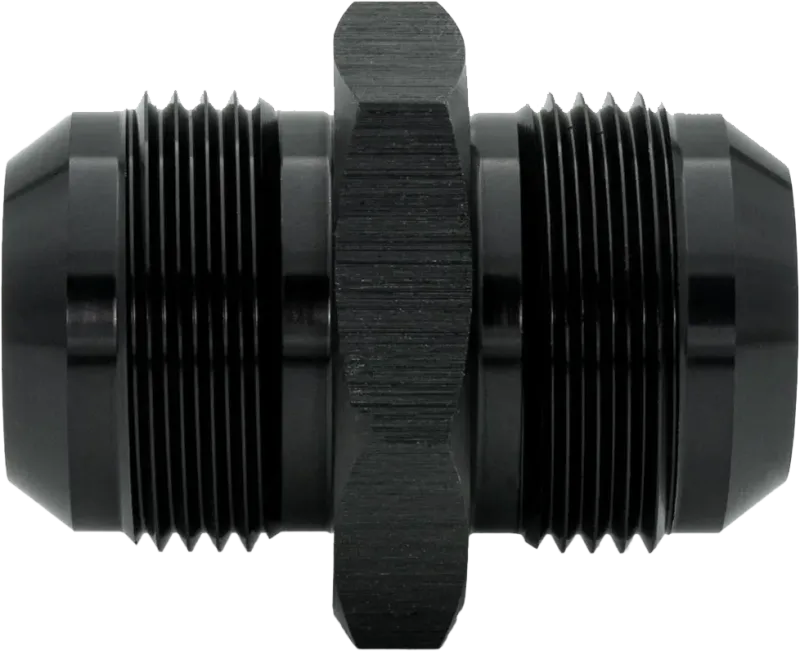

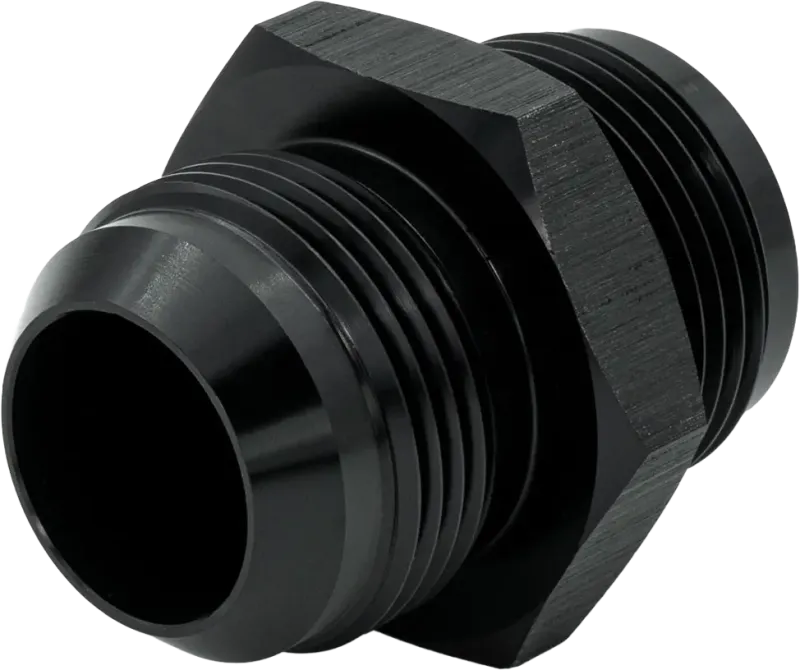

These AN male to AN male adapters connect two compatible female AN fittings. The range includes both matching-size and size-conversion options for joining or adapting AN fluid connections.

JIC 37° Flare Connections

Both male AN connections use JIC 37° flare sealing. The male cone seats against the corresponding flare inside a compatible female AN fitting, with the fluid seal formed at the mating flare surfaces rather than on the threads.

6061-T6 Aluminium Construction

The adapters are manufactured from 6061-T6 aluminium with a black anodised finish.

Type: AN Male to AN Male Adapter For joining or adapting between female AN connections
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

Connection 1: AN Male JIC 37° · Male cone flare
Connection 2: AN Male JIC 37° · Male cone flare

Available AN male to AN male adapter sizes
Product Code	Connection 1	Connection 2
ADP-MM-AN-AL-AN4-AN4	AN4 Male7/16"-20 UNF	AN4 Male7/16"-20 UNF
ADP-MM-AN-AL-AN6-AN6	AN6 Male9/16"-18 UNF	AN6 Male9/16"-18 UNF
ADP-MM-AN-AL-AN8-AN8	AN8 Male3/4"-16 UNF	AN8 Male3/4"-16 UNF
ADP-MM-AN-AL-AN8-AN10	AN8 Male3/4"-16 UNF	AN10 Male7/8"-14 UNF
ADP-MM-AN-AL-AN10-AN10	AN10 Male7/8"-14 UNF	AN10 Male7/8"-14 UNF
ADP-MM-AN-AL-AN12-AN12	AN12 Male1 1/16"-12 UNF	AN12 Male1 1/16"-12 UNF
ADP-MM-AN-AL-AN16-AN16	AN16 Male1 5/16"-12 UNF	AN16 Male1 5/16"-12 UNF
ADP-MM-AN-AL-AN20-AN20	AN20 Male1 5/8"-12 UNF	AN20 Male1 5/8"-12 UNF

Fuel Systems
Oil Systems
Coolant Systems
Custom Fluid Systems

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are AN male to AN male adapters used for?
They connect two compatible female AN fittings, such as female hose ends, adapters or other AN components.
How do the connections seal?
The AN connections seal between the mating JIC 37° flare surfaces. The threads draw the fittings together but are not the primary fluid sealing surfaces.
Do AN connections require PTFE tape or thread sealant?
No. Correctly matched AN connections seal on the JIC 37° flare surfaces, so PTFE tape or thread sealant should not be applied to the AN threads.
Can these adapters connect different AN sizes?
Yes. The range includes both matching-size and size-conversion versions. Select the required connection combination from the available options.
