AN Male to BSPP Male Adapters

Size

£6.50

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

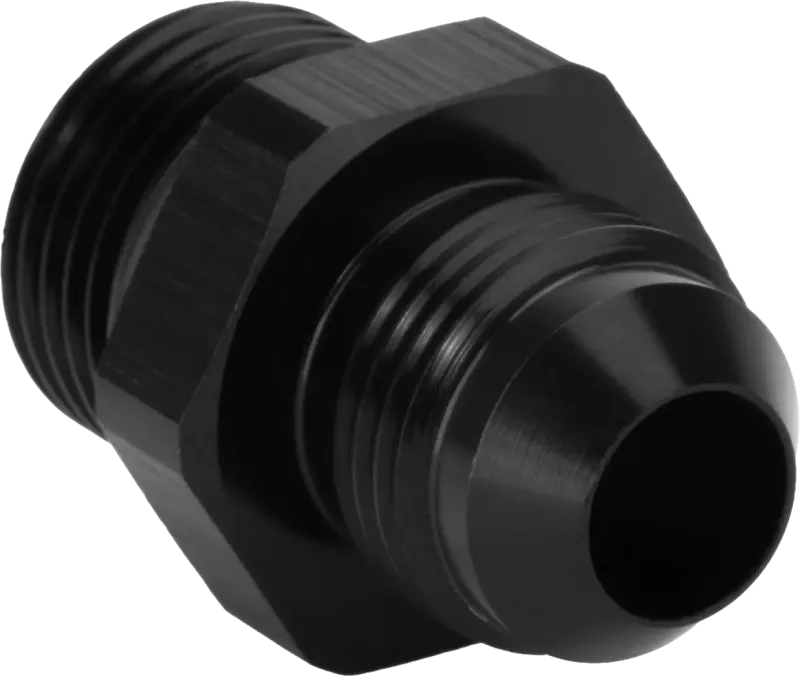

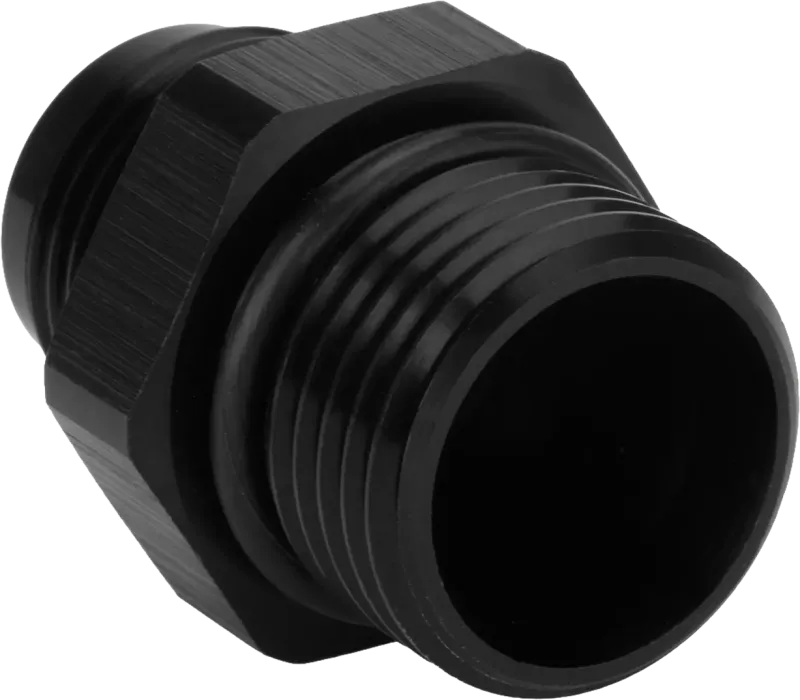

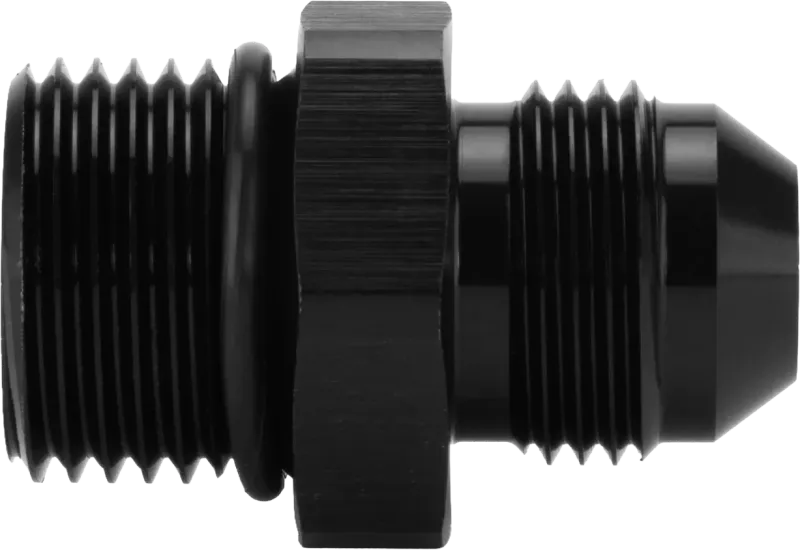

AN to BSPP Male to Male Adapters – Connect AN/JIC to BSPP Ports

Connect an AN hose or fitting to a compatible BSPP threaded port with our aluminium AN to BSPP Male to Male Adapters. Featuring a male JIC 37° flare connection at one end and an O-ring sealed male BSPP connection at the other, these adapters provide a compact transition between AN plumbing and BSPP-equipped components.

Why Choose Our AN to BSPP Adapters?

AN to BSPP Conversion

Provides a direct transition from a female AN/JIC fitting to a compatible female BSPP port without requiring multiple adapters.
Purpose-Designed Sealing Methods

The AN connection seals against the mating 37° flare, while the BSPP connection uses an O-ring to seal against the mating port.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium and finished with a durable black anodised coating for protection against wear and corrosion.
Parallel BSPP Thread

The BSPP connection uses a parallel thread and is designed for compatible O-ring sealed ports rather than sealing on the thread itself.
Suitable for a Range of Fluid Systems

Ideal for adapting AN plumbing to compatible BSPP ports in fuel, oil, coolant and other fluid systems.

How Do AN to BSPP Adapters Seal?

The two connections use different sealing methods. The AN/JIC connection seals on its 37° flare, while the BSPP connection seals using an O-ring against the mating port. The BSPP thread is parallel and retains the adapter rather than providing the fluid seal.

BSPP and NPT Are Different Connections

BSPP uses a parallel thread, while NPT uses a tapered thread. Nominal pipe sizes can appear similar, but the thread form and sealing method are different. Always confirm the mating port is BSPP and uses the correct O-ring sealing arrangement before ordering.

Adapter Type: AN to BSPP Male Adapter For adapting a female AN/JIC fitting to a compatible BSPP port
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

AN Connection: Male AN/JIC For connection to a compatible female AN/JIC fitting
AN Flare Type: JIC 37° Male cone flare
AN Sealing Method: 37° Flare Seals against the mating female flare
BSPP Connection: Male BSPP For installation into a compatible female BSPP port
BSPP Thread Type: Parallel British Standard Pipe Parallel thread
BSPP Sealing Method: O-Ring Seals against the mating port using an O-ring

Available AN to BSPP male to male adapter sizes
Product Code	AN Connection	BSPP Connection
ADP-MM-BSPP-AL-AN8-38BSPP	3/4"-16 UNF AN8 Male	3/8"-19 BSPP Male
ADP-MM-BSPP-AL-AN8-12BSPP	3/4"-16 UNF AN8 Male	1/2"-14 BSPP Male
ADP-MM-BSPP-AL-AN10-12BSPP	7/8"-14 UNF AN10 Male	1/2"-14 BSPP Male

BSPP is a parallel thread and must be matched to a compatible BSPP port. Do not substitute NPT or other pipe threads based on nominal size alone. These BSPP connections are designed to seal using an O-ring.

Fuel Systems
Oil Systems
Coolant Systems
AN Hose Systems
BSPP Ports

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are AN to BSPP male to male adapters used for?
AN to BSPP adapters provide a transition between a female AN/JIC fitting and a compatible female BSPP port. They are commonly used when connecting AN hose systems to components that use BSPP threaded ports.
How does the AN connection seal?
The male AN/JIC connection seals against the corresponding 37° flare inside a compatible female fitting. The thread draws the mating flare surfaces together but does not provide the primary fluid seal.
How does the BSPP connection seal?
The BSPP connection uses a parallel thread and seals with an O-ring against a compatible mating port. The thread retains the adapter while the O-ring provides the fluid seal.
Do AN to BSPP adapters require thread sealant or PTFE tape?
No. The AN side seals on its 37° flare and the BSPP side seals using an O-ring, so thread sealant or PTFE tape should not be required when installed into the correct mating fittings.
Is BSPP the same as NPT?
No. BSPP uses a parallel pipe thread, while NPT uses a tapered pipe thread. They use different thread forms and sealing methods and should not be treated as interchangeable.
Are these adapters compatible with braided hoses?
Yes. The AN end can connect to a compatible female AN hose fitting used on a braided hose assembly, while the BSPP end connects to a compatible O-ring sealed BSPP port.
What are the adapters made from?
They are precision-machined from 6061-T6 aluminium and finished with a black anodised coating for protection against wear and corrosion.
