AN Male to Imperial Male Adapters

Size

£3.62

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

AN to Imperial Male to Male Adapters – Connect AN/JIC to Straight Imperial Ports

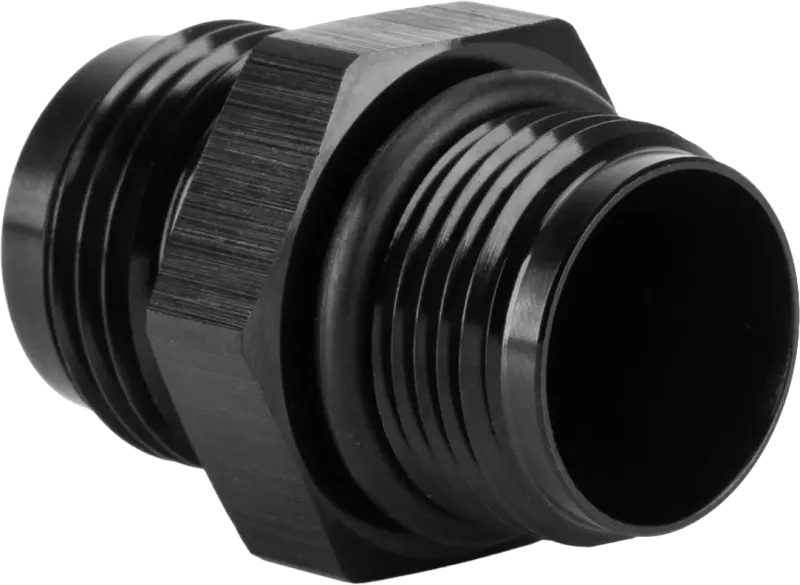

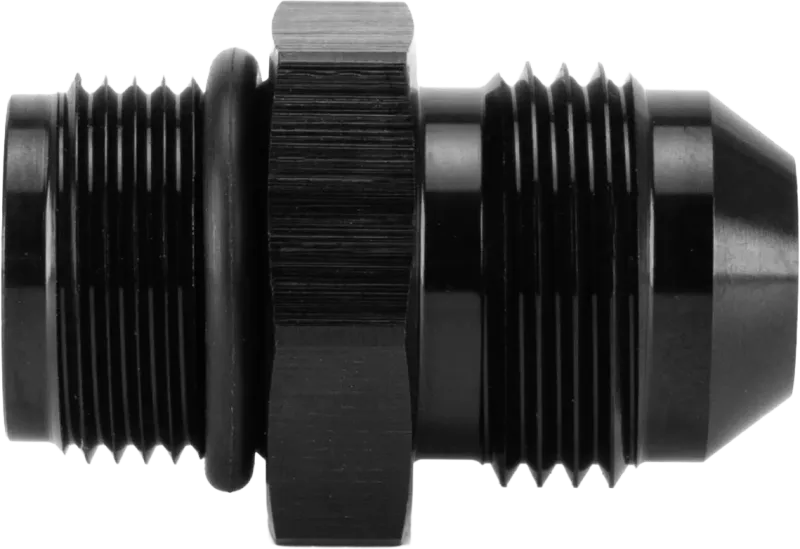

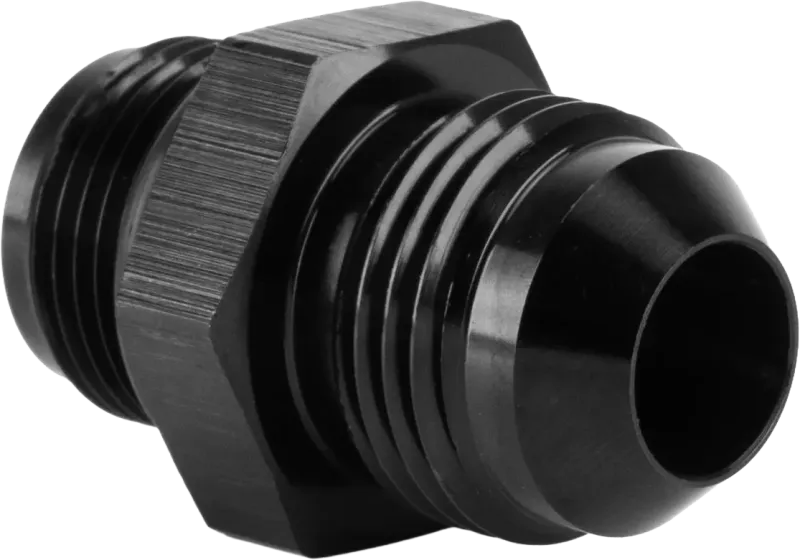

Connect an AN hose or fitting to a compatible straight imperial threaded port with our aluminium AN to Imperial Male to Male Adapters. Featuring a male JIC 37° flare connection at one end and an O-ring sealed male imperial connection at the other, these adapters provide a compact transition between AN plumbing and compatible straight-thread ports.

Why Choose Our AN to Imperial Adapters?

AN to Imperial Conversion

Provides a direct transition from a female AN/JIC fitting to a compatible straight imperial threaded port without requiring multiple adapters.
Purpose-Designed Sealing Methods

The AN connection seals against the mating 37° flare, while the imperial connection uses an O-ring to seal against the mating port.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium and finished with a durable black anodised coating for protection against wear and corrosion.
Straight UNF Thread Options

Available with 5/8"-18 UNF and 11/16"-16 UNF male connections for compatible O-ring sealed imperial ports.
Suitable for a Range of Fluid Systems

Ideal for adapting AN plumbing to compatible straight imperial ports in fuel, oil, coolant and other fluid systems.

How Do AN to Imperial Adapters Seal?

The two connections use different sealing methods. The AN/JIC connection seals on its 37° flare, while the imperial connection seals using an O-ring against the mating port. The straight imperial thread retains the adapter but is not itself the primary sealing surface.

UNF Thread Does Not Automatically Mean AN/JIC

AN/JIC fittings commonly use UNF threads, but the thread size alone does not define an AN connection. The imperial side of these adapters uses a straight UNF thread with an O-ring seal and does not use a 37° flare. Always confirm the thread size and sealing arrangement of the mating port before ordering.

Adapter Type: AN to Imperial Male Adapter For adapting a female AN/JIC fitting to a compatible straight imperial port
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

AN Connection: Male AN/JIC For connection to a compatible female AN/JIC fitting
AN Flare Type: JIC 37° Male cone flare
AN Sealing Method: 37° Flare Seals against the mating female flare
Imperial Connection: Male Straight UNF For installation into a compatible female imperial port
Imperial Sealing Method: O-Ring Seals against the mating port using an O-ring

Available AN to imperial male to male adapter sizes
Product Code	AN Connection	Imperial Connection
ADP-MM-IMP-AL-AN8-58UNF	3/4"-16 UNF AN8 Male	5/8"-18 UNF Male
ADP-MM-IMP-AL-AN8-1116UNF	3/4"-16 UNF AN8 Male	11/16"-16 UNF Male

These straight UNF connections are not AN/JIC fittings. The imperial connection seals using an O-ring and requires a compatible O-ring sealing port.

Fuel Systems
Oil Systems
Coolant Systems
AN Hose Systems
Imperial Ports

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are AN to imperial male to male adapters used for?
AN to imperial adapters provide a transition between a female AN/JIC fitting and a compatible straight imperial threaded port. They are useful where an AN hose system needs to connect to a component with an O-ring sealed imperial thread.
How does the AN connection seal?
The male AN/JIC connection seals against the corresponding 37° flare inside a compatible female fitting. The thread draws the mating flare surfaces together but does not provide the primary fluid seal.
How does the imperial connection seal?
The imperial connection uses a straight UNF thread and seals with an O-ring against a compatible mating port. The thread retains the adapter while the O-ring provides the fluid seal.
Are these imperial connections the same as AN fittings?
No. AN/JIC fittings may use UNF threads, but they seal on a 37° flare. The imperial side of these adapters uses a straight UNF thread with an O-ring seal and does not use an AN/JIC flare.
Do AN to imperial adapters require thread sealant or PTFE tape?
No. The AN side seals on its 37° flare and the imperial side seals using an O-ring, so thread sealant or PTFE tape should not be required when installed into compatible mating fittings.
Are these adapters compatible with braided hoses?
Yes. The AN end can connect to a compatible female AN hose fitting used on a braided hose assembly, while the imperial end connects to a compatible O-ring sealed imperial port.
What are the adapters made from?
They are precision-machined from 6061-T6 aluminium and finished with a black anodised coating for protection against wear and corrosion.
