AN Male to ORB Male Adapters

Size

£3.84

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

AN to ORB Male to Male Adapters – Connect AN/JIC to O-Ring Boss Ports

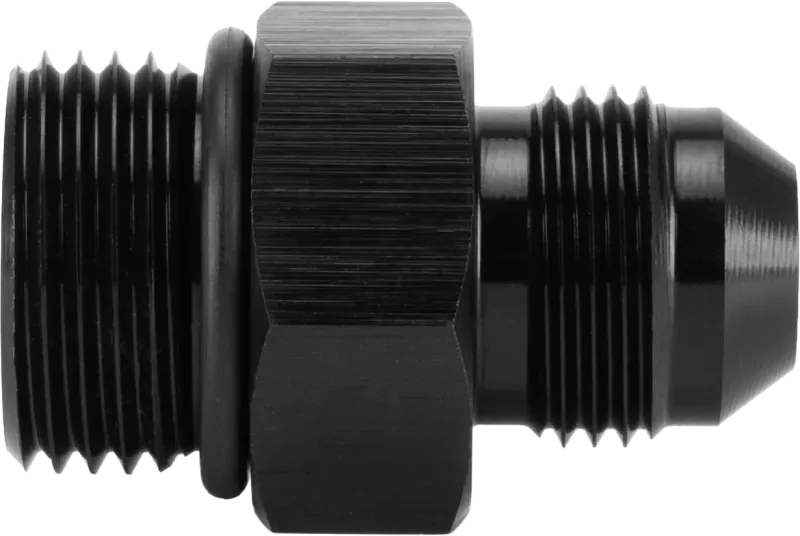

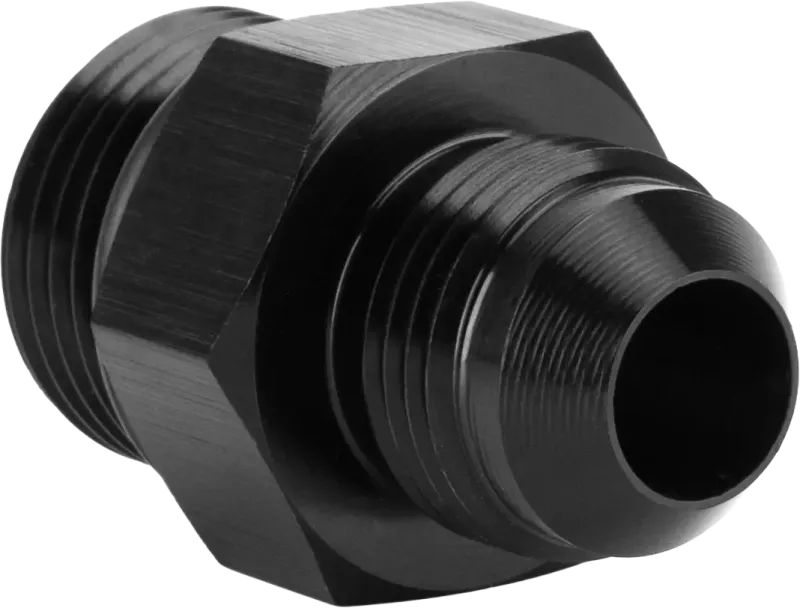

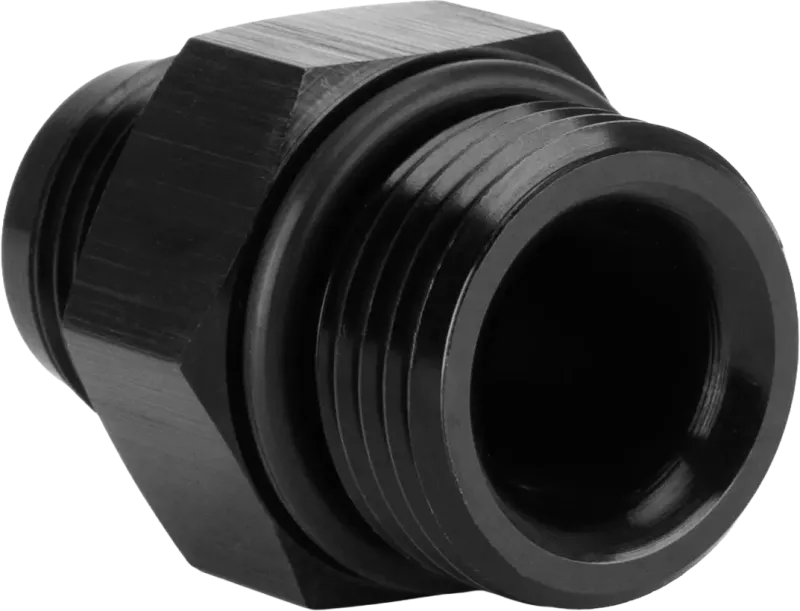

Connect an AN hose or fitting to a compatible O-Ring Boss port with our aluminium AN to ORB Male to Male Adapters. Featuring a male JIC 37° flare connection at one end and an O-ring sealed male ORB connection at the other, these adapters provide a compact transition between AN plumbing and ORB-equipped components.

Why Choose Our AN to ORB Adapters?

AN to ORB Conversion

Provides a direct connection between a female AN/JIC fitting and a compatible female ORB port without requiring multiple adapters.
Purpose-Designed Sealing Methods

The AN connection seals against the mating 37° flare, while the ORB connection uses an O-ring to create the seal against the mating port.
6061-T6 Aluminium Construction

Precision-machined from lightweight 6061-T6 aluminium and finished with a durable black anodised coating for protection against wear and corrosion.
Multiple Size Combinations

Available with a range of AN and ORB sizes, including selected reducing and expanding combinations to suit different system requirements.
Suitable for a Range of Fluid Systems

Ideal for adapting AN plumbing to compatible ORB ports in fuel, oil and coolant systems.

What is an ORB Connection?

ORB stands for O-Ring Boss. Unlike an AN/JIC fitting, which seals on a 37° flare, an ORB connection uses a straight thread to retain the fitting while an O-ring provides the fluid seal against the mating port.

AN and ORB Threads Are Not the Same Connection

Some AN and ORB sizes use the same thread diameter and pitch, but their sealing methods are different. AN/JIC fittings require a compatible 37° flare, while ORB fittings require a correctly formed O-ring sealing port. Always identify the connection type as well as the thread size before ordering.

Adapter Type: AN to ORB Male Adapter For adapting a female AN/JIC fitting to a compatible ORB port
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

AN Connection: Male AN/JIC For connection to a compatible female AN/JIC fitting
AN Flare Type: JIC 37° Male cone flare
AN Sealing Method: 37° Flare Seals against the mating female flare
ORB Connection: Male ORB For installation into a compatible female O-Ring Boss port
ORB Sealing Method: O-Ring Seals against the mating port using an O-ring

Available AN to ORB male to male adapter sizes
Product Code	AN Connection	ORB Connection
ADP-MM-ORB-AL-AN6-AN6ORB	9/16"-18 UNF AN6 Male	9/16"-18 UNF AN6 ORB Male
ADP-MM-ORB-AL-AN6-AN8ORB	9/16"-18 UNF AN6 Male	3/4"-16 UNF AN8 ORB Male
ADP-MM-ORB-AL-AN6-AN10ORB	9/16"-18 UNF AN6 Male	7/8"-14 UNF AN10 ORB Male
ADP-MM-ORB-AL-AN8-AN6ORB	3/4"-16 UNF AN8 Male	9/16"-18 UNF AN6 ORB Male
ADP-MM-ORB-AL-AN8-AN8ORB	3/4"-16 UNF AN8 Male	3/4"-16 UNF AN8 ORB Male
ADP-MM-ORB-AL-AN8-AN10ORB	3/4"-16 UNF AN8 Male	7/8"-14 UNF AN10 ORB Male
ADP-MM-ORB-AL-AN10-AN8ORB	7/8"-14 UNF AN10 Male	3/4"-16 UNF AN8 ORB Male
ADP-MM-ORB-AL-AN10-AN10ORB	7/8"-14 UNF AN10 Male	7/8"-14 UNF AN10 ORB Male
ADP-MM-ORB-AL-AN16-AN16ORB	1 5/16"-12 UNF AN16 Male	1 5/16"-12 UNF AN16 ORB Male
ADP-MM-ORB-AL-AN16-AN20ORB	1 5/16"-12 UNF AN16 Male	1 5/8"-12 UNF AN20 ORB Male
ADP-MM-ORB-AL-AN20-AN16ORB	1 5/8"-12 UNF AN20 Male	1 5/16"-12 UNF AN16 ORB Male
ADP-MM-ORB-AL-AN20-AN20ORB	1 5/8"-12 UNF AN20 Male	1 5/8"-12 UNF AN20 ORB Male

AN/JIC and ORB connections may share the same thread size but use different sealing methods. The AN connection requires a compatible 37° flare, while the ORB connection requires an O-ring sealing port.

Fuel Systems
Oil Systems
Coolant Systems
AN Hose Systems
ORB Ports

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What are AN to ORB male to male adapters used for?
AN to ORB adapters provide a transition between a female AN/JIC fitting and a compatible female O-Ring Boss port. They are commonly used when connecting AN hose systems to components that use ORB connections.
What is an ORB fitting?
ORB stands for O-Ring Boss. It uses a straight threaded connection with an O-ring to create the fluid seal against a compatible mating port.
How does the AN connection seal?
The male AN/JIC connection seals against the corresponding 37° flare inside a compatible female fitting. The thread draws the mating flare surfaces together but does not provide the primary fluid seal.
How does the ORB connection seal?
The ORB connection seals using an O-ring against the mating port. The straight thread secures the adapter into the port while the O-ring creates the fluid seal.
Are AN and ORB threads interchangeable?
No. Some AN and ORB sizes share the same thread diameter and pitch, but they use different sealing arrangements. AN/JIC connections seal on a 37° flare, while ORB connections seal using an O-ring against a compatible port.
Do AN to ORB adapters require thread sealant or PTFE tape?
No. The AN side seals on its 37° flare and the ORB side seals using an O-ring, so thread sealant or PTFE tape should not be required when both connections are installed into compatible mating fittings.
Are these adapters compatible with braided hoses?
Yes. The AN end can connect to a compatible female AN hose fitting used on a braided hose assembly, while the ORB end connects to a compatible O-ring Boss port.
What are the adapters made from?
They are precision-machined from 6061-T6 aluminium and finished with a black anodised coating for protection against wear and corrosion.
