Double AN Male to Banjo Adapters

Size

£13.63

In Stock

Free 100-day Returns

no questions asked

Free UK Delivery over £30

express options available

2-Year Warranty

free repair or replacement

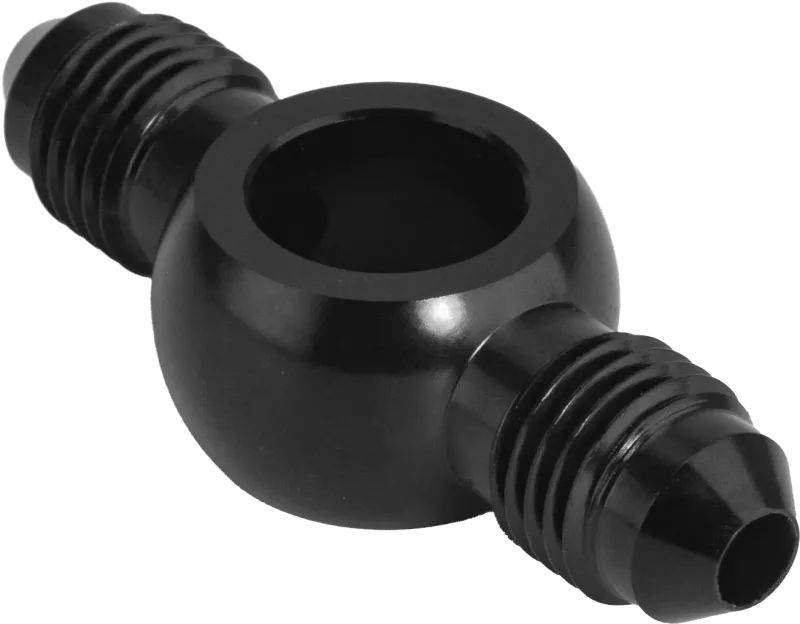

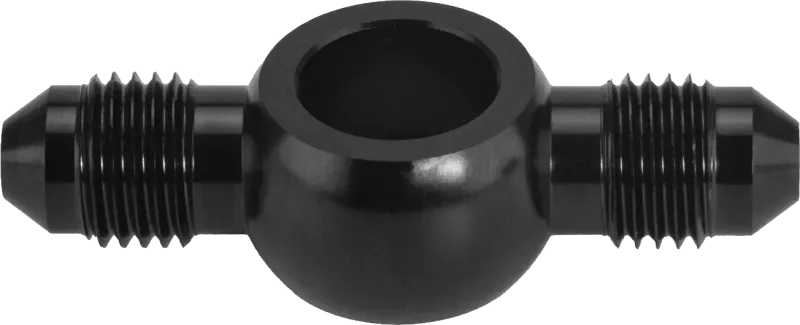

Two AN4 Male Connections with a 12mm Banjo Eye

This adapter provides two opposing AN4 male connections through a single 12mm banjo mounting point, allowing two compatible female AN fittings to connect at one component port.

Two AN4 Male Connections

An AN4 male connection is positioned on each side of the central banjo eye. Both use JIC 37° cone flares and seal against the corresponding female flare in compatible AN fittings.

12mm Banjo Connection

The central 12mm banjo eye is designed for use with a compatible M12 banjo bolt. Suitable sealing washers are required on both sides of the banjo eye.

Compact Double Connection

The opposing AN connections allow two fluid lines to share a single banjo mounting point while keeping the connection compact at the component.

6061-T6 Aluminium Construction

The adapter is manufactured from 6061-T6 aluminium with a black anodised finish.

Type: Double AN Male to Banjo Adapter Two opposing AN connections with a central banjo mounting point
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

Connection 1: AN Male JIC 37° · Male cone flare
Connection 2: Banjo Fixed banjo eye
Connection 3: AN Male JIC 37° · Male cone flare
Banjo Sealing: Sealing Washers Required on both sides of the banjo eye

Double AN male to banjo adapter configuration
Product Code	Connection 1	Connection 2	Connection 3
ADP-MB-D-AL-AN4-B12	AN4 Male 7/16"-20 UNF	12mm Banjo	AN4 Male 7/16"-20 UNF

Available M12 aluminium banjo bolt options
Selection	Thread
Aluminium Single Banjo Bolt	M12 x 1.00
Aluminium Single Banjo Bolt	M12 x 1.25
Aluminium Single Banjo Bolt	M12 x 1.50

Select the thread pitch to match the mating component.

Required Quantity: 2 One sealing washer on each side of the banjo eye
Availability: Optional Add-On Can be selected with the adapter

Fuel Systems
Oil Systems
Turbo Oil Lines
Custom Fluid Systems

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

How many AN connections does the adapter have?
The adapter has two opposing AN4 male connections, one on each side of the central banjo eye.
How do the AN4 connections seal?
Each AN4 male connection uses a JIC 37° cone flare and seals against the corresponding female flare in a compatible AN fitting.
What size is the banjo eye?
The adapter has a 12mm central banjo eye for use with a compatible M12 banjo bolt.
Which banjo bolt thread pitches are available?
Optional M12 aluminium banjo bolts are available in M12 x 1.00, M12 x 1.25 and M12 x 1.50 thread pitches. Select the pitch required by the mating component.
Are the banjo bolt and sealing washers included?
The adapter is supplied separately. Compatible M12 banjo bolts and sealing washers can be selected as optional additions.
Are sealing washers required?
Yes. Suitable sealing washers are required on both sides of the banjo eye.
Do the AN threads require PTFE tape or thread sealant?
No. The AN connections seal at their JIC 37° cone flares rather than on the threads.
