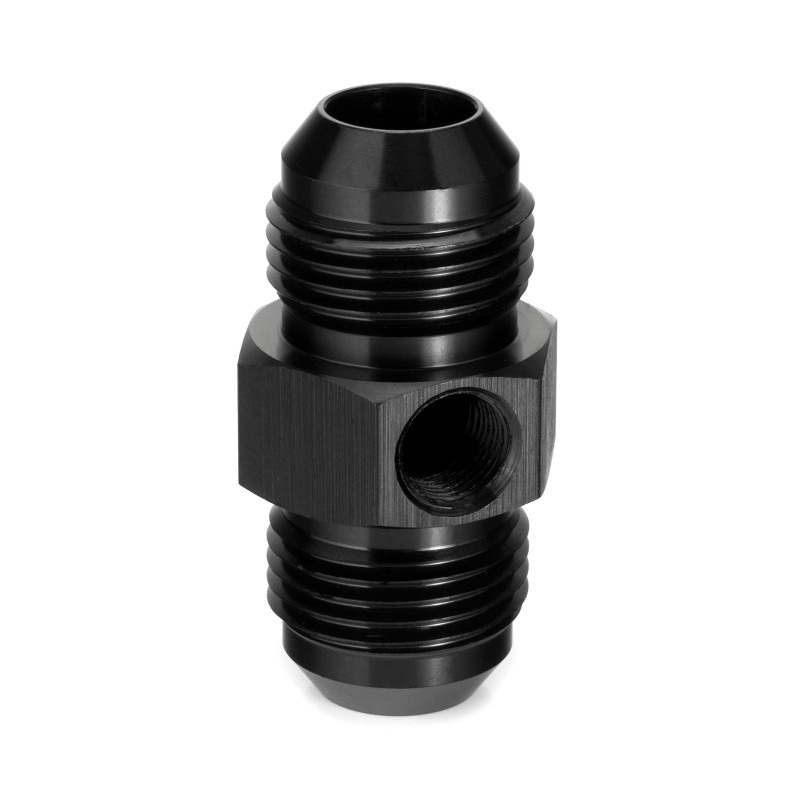

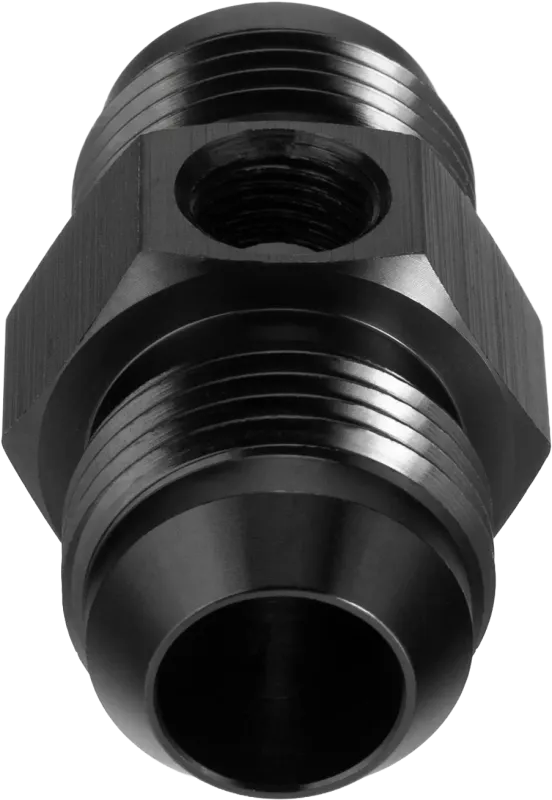

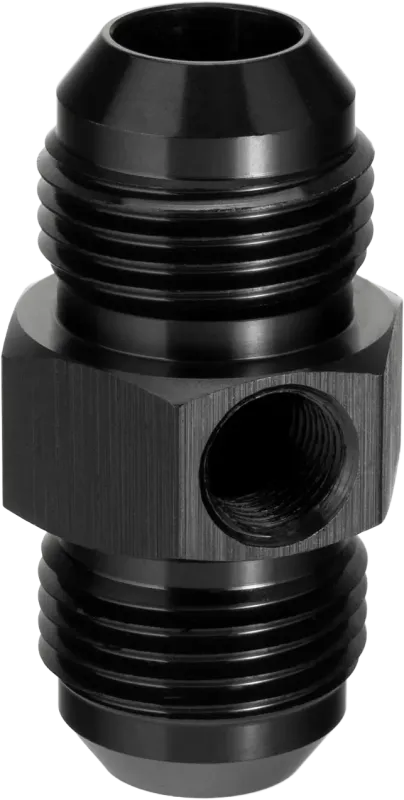

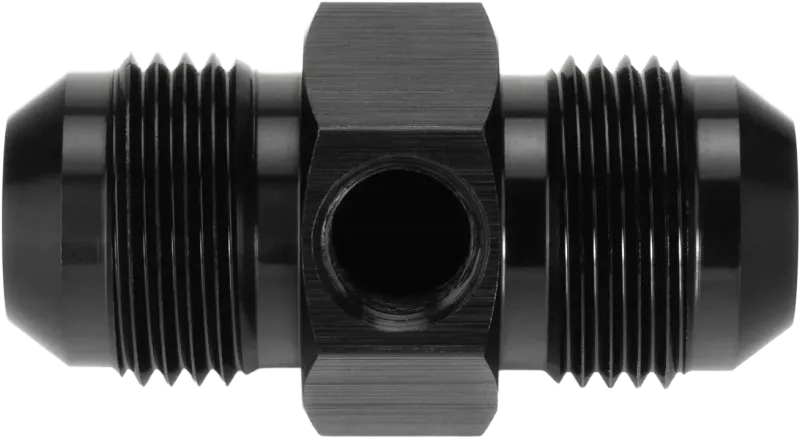

AN Male to AN Male Adapters with 1/8" NPT Sensor Port

These straight AN male to AN male adapters connect two compatible female AN fittings while providing an integrated 1/8"-27 NPT female sensor port. The additional port allows a compatible pressure sensor, temperature sensor or thermal switch to be installed directly into the fluid line.

AN Male Connections

Both main connections are matching-size male AN connections with JIC 37° flare sealing. The fluid seal is formed between the mating flare surfaces rather than on the threads.

1/8"-27 NPT Female Sensor Port

The integrated sensor port has a female 1/8"-27 NPT tapered thread for a compatible sensor or thermal switch. Use suitable PTFE tape or thread sealant.

The sensor port must not be left open while the fluid system is in use. If a sensor or switch is not fitted, install a compatible 1/8" NPT blanking plug.

6061-T6 Aluminium Construction

The adapters are manufactured from 6061-T6 aluminium with a black anodised finish.

Type: AN Male to AN Male Adapter with Sensor Port Straight inline adapter with integrated sensor port
Material: 6061-T6 Aluminium Lightweight, high-strength alloy
Finish: Black Anodised Protects against wear and corrosion

Connection 1: AN Male JIC 37° · Male cone flare
Connection 2: AN Male JIC 37° · Male cone flare
Sensor Port: NPT Female Tapered thread · Use suitable PTFE tape or thread sealant

Available AN male to AN male adapter sizes with 1/8"-27 NPT sensor port
Product Code	Connection 1	Connection 2	Sensor Port
ADP-MM-SP-AL-AN6-18NPT	AN6 Male 9/16"-18 UNF	AN6 Male 9/16"-18 UNF	1/8"-27 NPT Female Tapered thread
ADP-MM-SP-AL-AN8-18NPT	AN8 Male 3/4"-16 UNF	AN8 Male 3/4"-16 UNF	1/8"-27 NPT Female Tapered thread
ADP-MM-SP-AL-AN10-18NPT	AN10 Male 7/8"-14 UNF	AN10 Male 7/8"-14 UNF	1/8"-27 NPT Female Tapered thread

The 1/8"-27 NPT sensor port must not be left open during use. Fit a compatible sensor, 1/8" NPT temperature switch or 1/8" NPT blanking plug. Use suitable PTFE tape or thread sealant.

Fuel Systems
Oil Systems
Coolant Systems
Custom Fluid Systems
Sensor Integration
Pressure Monitoring
Temperature Monitoring

Free repair or replacement for two years from the date of purchase. Learn more

Frequently Asked Questions

What is the sensor port thread?
The integrated sensor port is a 1/8"-27 NPT female tapered thread.
What can I install in the sensor port?
The port can accept a compatible 1/8"-27 NPT male pressure sensor, temperature sensor, thermal switch or blanking plug.
How do the AN connections seal?
The male AN connections seal on their mating JIC 37° flare surfaces. Thread sealant is not required on the AN threads.
Does the NPT sensor port require thread sealant?
Yes. Use suitable PTFE tape or thread sealant.
Can I use the adapter without fitting a sensor?
Yes, but the sensor port must be sealed with a compatible 1/8"-27 NPT male blanking plug. It must not be left open while the fluid system is in use.
