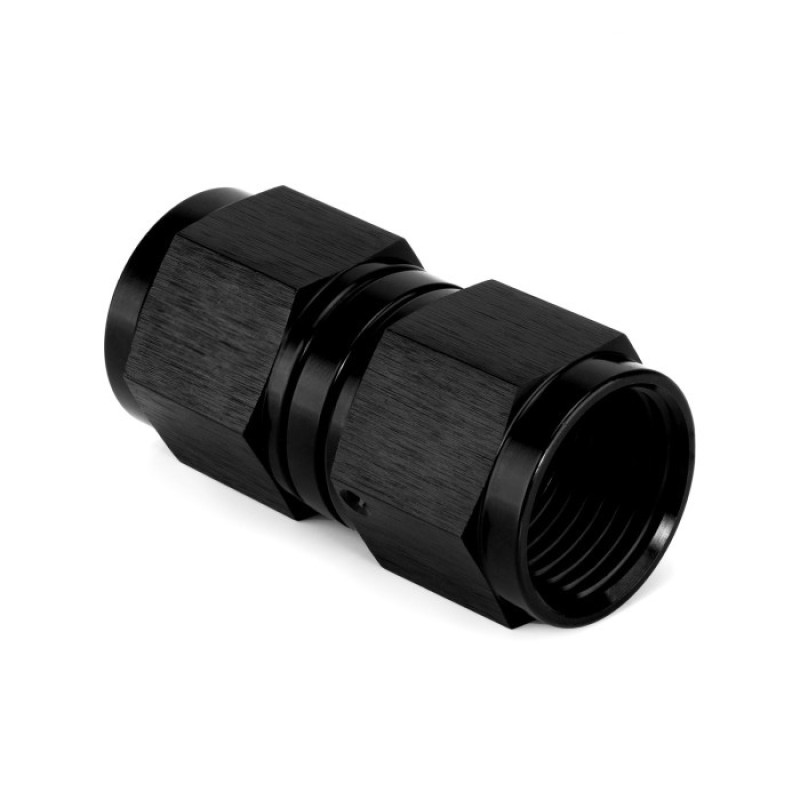

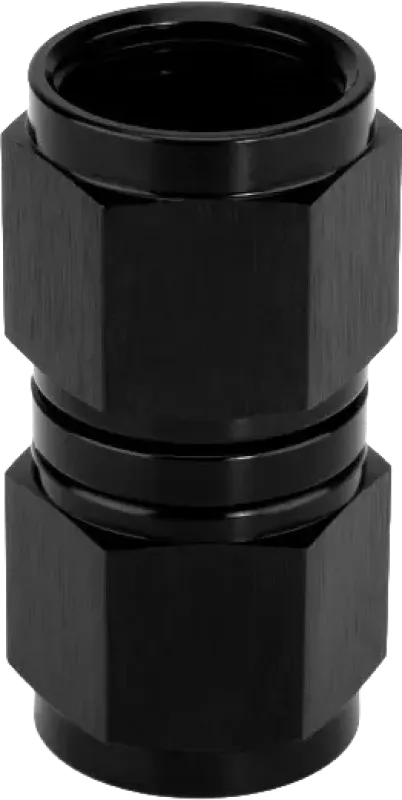

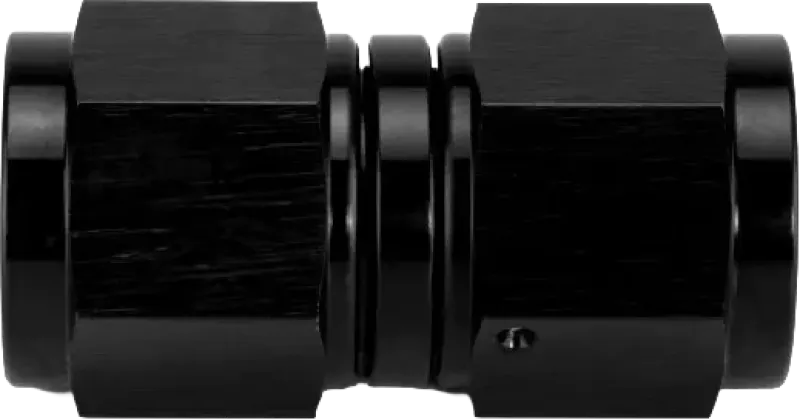

AN Female to AN Female Adapters
- £7.71
Product Overview
Description
Technical Details
Specifications
Design & Construction
- Type
- AN Female to AN Female Adapter For joining two compatible male AN connections
- Material
- 6061-T6 Aluminium Lightweight, high-strength alloy
- Finish
- Black Anodised Protects against wear and corrosion
Connections
- Connection 1
- AN Swivel Female JIC 37° · Female cone flare
- Connection 2
- AN Swivel Female JIC 37° · Female cone flare
Available Sizes
| Product Code | Connection 1 | Connection 2 |
|---|---|---|
| ADP-FF-AN-AL-AN6 |
AN6 Swivel Female
9/16"-18 UNF
|
AN6 Swivel Female
9/16"-18 UNF
|
| ADP-FF-AN-AL-AN8 |
AN8 Swivel Female
3/4"-16 UNF
|
AN8 Swivel Female
3/4"-16 UNF
|
| ADP-FF-AN-AL-AN10 |
AN10 Swivel Female
7/8"-14 UNF
|
AN10 Swivel Female
7/8"-14 UNF
|
Common Applications
- Fuel Systems
- Oil Systems
- Coolant Systems
- Custom Fluid Systems
2-Year Warranty
- Free repair or replacement for two years from the date of purchase. Learn more
-
What are AN female to AN female adapters used for?
They connect two compatible male AN connections directly together, including hose fittings, adapters and other AN components.
-
Do both female connections swivel?
Yes. Both female AN connections swivel independently, allowing the adjoining fittings to be aligned and tightened during installation.
-
How do the connections seal?
Both connections use JIC 37° flare sealing. The female flare seats seal against the corresponding male 37° cone flares.
-
Do I need PTFE tape or thread sealant?
No. The AN connections seal on the mating JIC 37° flare surfaces rather than on the threads, so PTFE tape or thread sealant is not required.
